Product Code: 101193228

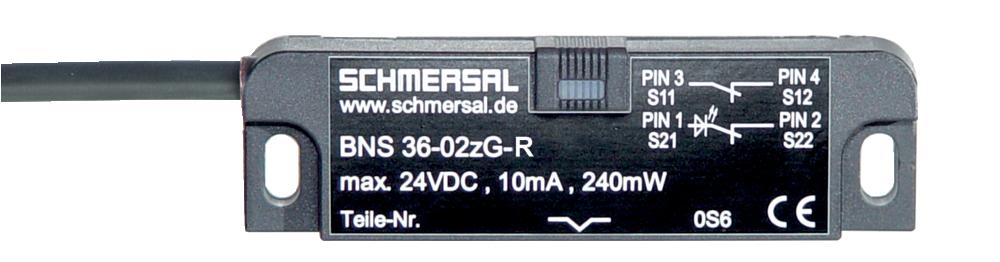

Explore the Schmersal BNS36 series for a robust safety sensor designed to enhance machine safety. This thermoplastic-encased sensor features a magnetic actuating element and is engineered for right-hinged doors. It includes three openers and two safety contacts, with a six-wire cable connection that extends 1 meter for easy installation. The unit operates at a switching voltage of 75 VDC, current of 0.4 A, and has a switching capacity of 10 W, ensuring reliable performance in safeguarding equipment. Trust in the Schmersal brand for dependable machine safety solutions.

Enclosure Material	Plastic, glass-fibre-reinforced
Gross Weight (g)	35
Net Weight (g)	20
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Brand	SCHMERSAL
Series	BNS36
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-01
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Contact Material	Silver
Maximum Fuse Rating	4 A gG D-fuse to DIN EN 60269-1
Minimum Mechanical Life	10000000 Operations
No. of Safety Contacts	2
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Rated Maximum Operational Voltage DC (V)	75
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Terminal Type	Screw terminals
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	38
Sensor Height (mm)	91
Degree of Protection	IP67
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
