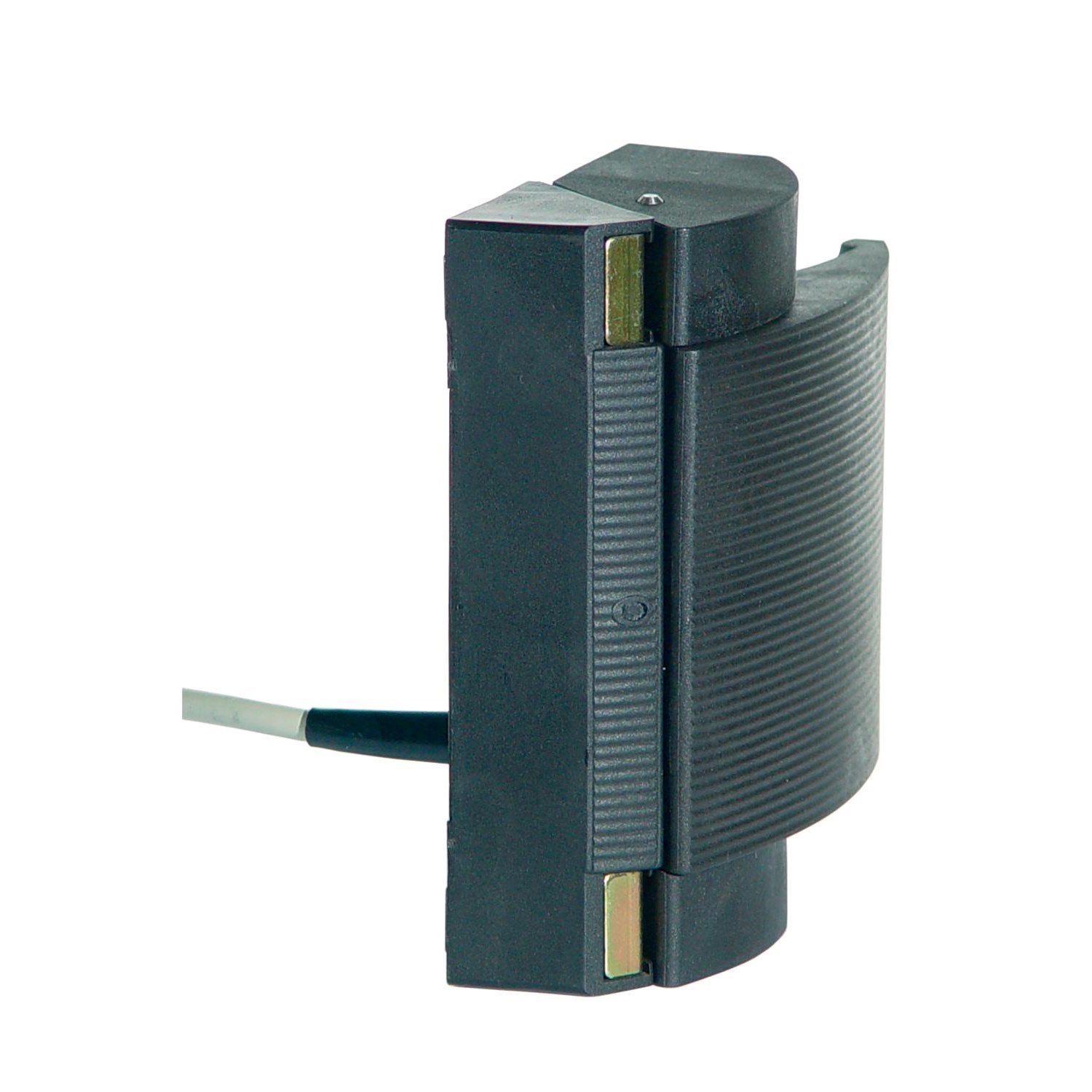

Schmersal 101186262 Magnetic Safety Sensor 1m Cable

Product Code: 101186262

  • Durable with 25 million cycle life
  • IP67 rated for dust and water protection
  • Operates in -25 to 70°C temperature range
  • Quasi-flush mounting design
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Nominal Power (W) 3
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.25
Rated Maximum Operational Voltage AC (V) 100
Rated Maximum Operational Voltage DC (V) 100
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS-B20
Actuating Element Magnet
Actuating Force 100 N
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.25 A
Rated Frequency 5 Hz
Rated Power 3 W
Rated Voltage 100 VAC
Sensor Size 43.3 mm L x 119.5 mm W x 140 mm H
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

Enhance machine safety with the Schmersal BNS-B20 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features a magnetic actuating element and is suitable for right-hinged doors. It comes equipped with two openers, one shutter, and two safety contacts, ensuring secure operations. The unit includes six cable wires with a 1-meter long terminal connector cable for easy installation. Engineered to operate at a switching voltage of 100 V AC/DC and a current of 0.25 A, it has a modest switching capacity of 3 W. Ideal for various industrial applications, this safety sensor is an essential component in any machine safety system.
