| Maximum Operational Voltage DC (V) |
26.4 |
| Minimum Operational Voltage DC (V) |
20.4 |
| No. of Outputs |
2 (Fail-safe Digital Output) |
| Pollution Degree |
3 |
| Rated Insulation Voltage (V) |
32DC |
| Rated Impulse Withstand Voltage (kV) |
0.8 |
| Voltage Type |
DC |
| Included |
2 x Nuts M18 |
| Rated Operational Voltage (V) |
24V DC |
| Maximum Ambient Temperature (°C) |
60 |
| Rated Operational Current DC-13 (A) |
0.5A (Safety Digital Outputs) |
| Maximum Reaction Time (ms) |
30 |
| Minimum Ambient Temperature (°C) |
-25 |
| Termination |
Cable |
| Sensor Length (mm) |
92 |
| Switching Frequency (Hz) |
3 |
| Safety Functions |
Yes |
| Maximum Output Current (A) |
0.5A (Fail-safe Output for Safety Digital Outputs) |
| Repeat Accuracy (mm) |
0.2 |
| Resistance to Shock (g/ms) |
30g / 11ms |
| Recommended Safety Switchgear |
PROTECT PSC1 |

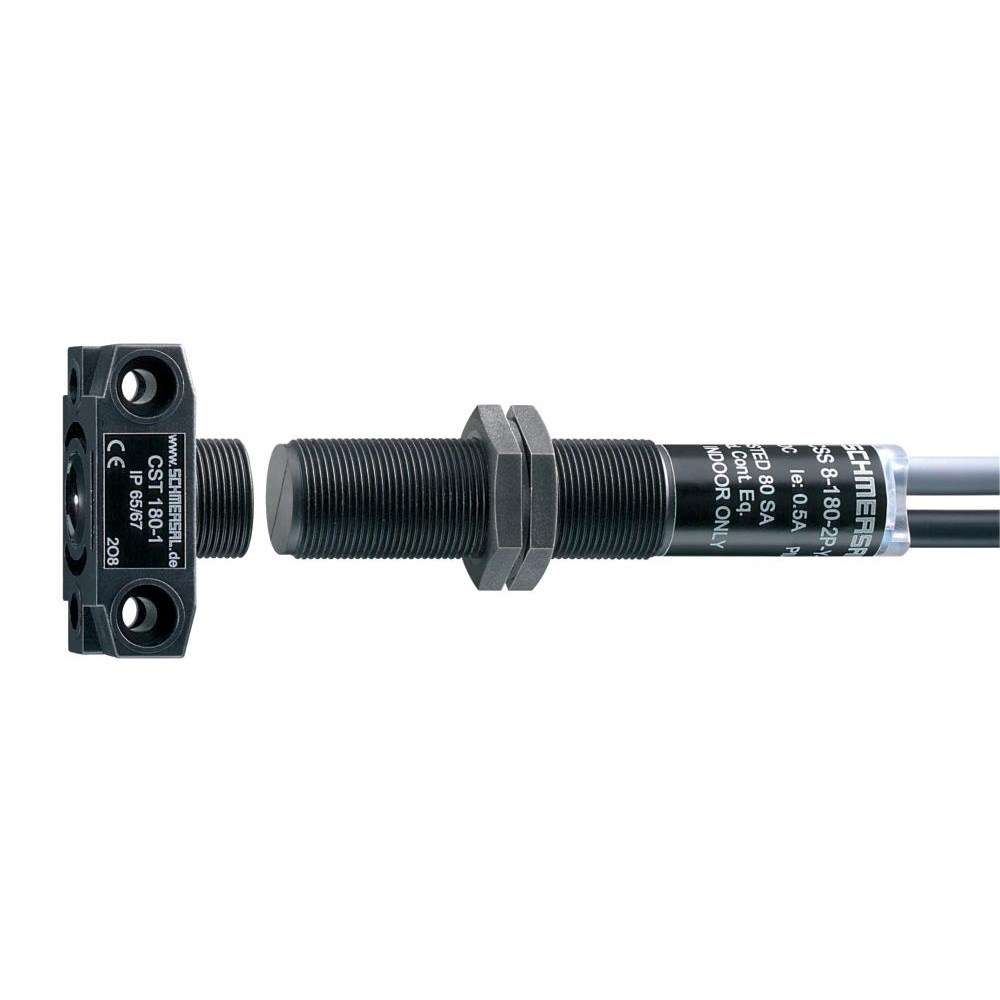

| Recommended Actuator |
CST 180-1 |
| Rated Operational Voltage DC-13 (V) |
24V (Safety Digital Outputs) |
| Resistance to Vibrations |
10 ... 55Hz, Amplitude 1mm |
| Rated Operational Current (mA) |
1000 |
| Maximum Voltage Drop (V) |
0.5 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-25 |
| Duration of Risk (ms) |
30 |
| Rated Operational Current DC-12 (A) |
0.5A (Safety Digital Outputs) |
| Rated Operational Voltage DC-12 (V) |
24V (Safety Digital Outputs) |
| Maximum Leakage Current (mA) |
0.5mA (Safety Digital Outputs) |
| Product Type |
Electronic Safety Sensor |
| Brand |
SCHMERSAL |
| Accuracy |
0.2 mm |
| Connection Type |
Cable |
| Degree of Pollution |
IP3 |
| Degree of Protection |
IP65, IP67 |
| Housing Material |
Glass Fibre Reinforced Thermoplastic |
| Installation Conditions |
Not Flush |
| Mounting Type |
Not Flush |
| Operational Temperature |
60 deg C |
| Overvoltage Category |
3 |
| Performance Level |
e |
| Rated Current |
1000 mA |
| Rated Voltage |
24 VDC |
| Standards and Approvals |
EN IEC 60947-5-3, EN IEC 61508 |
