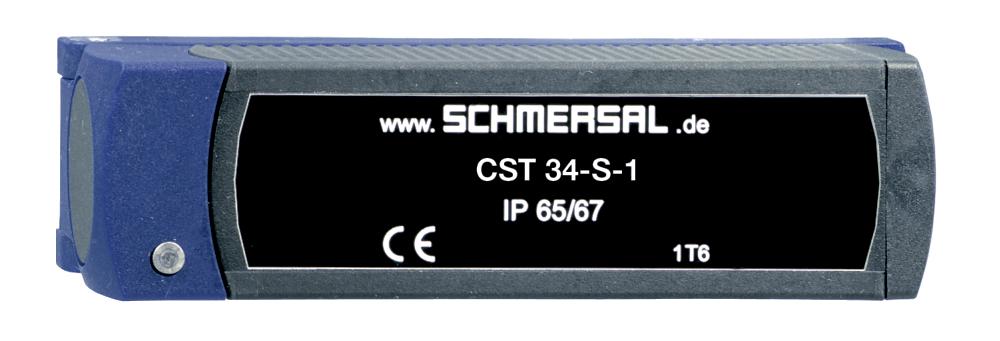

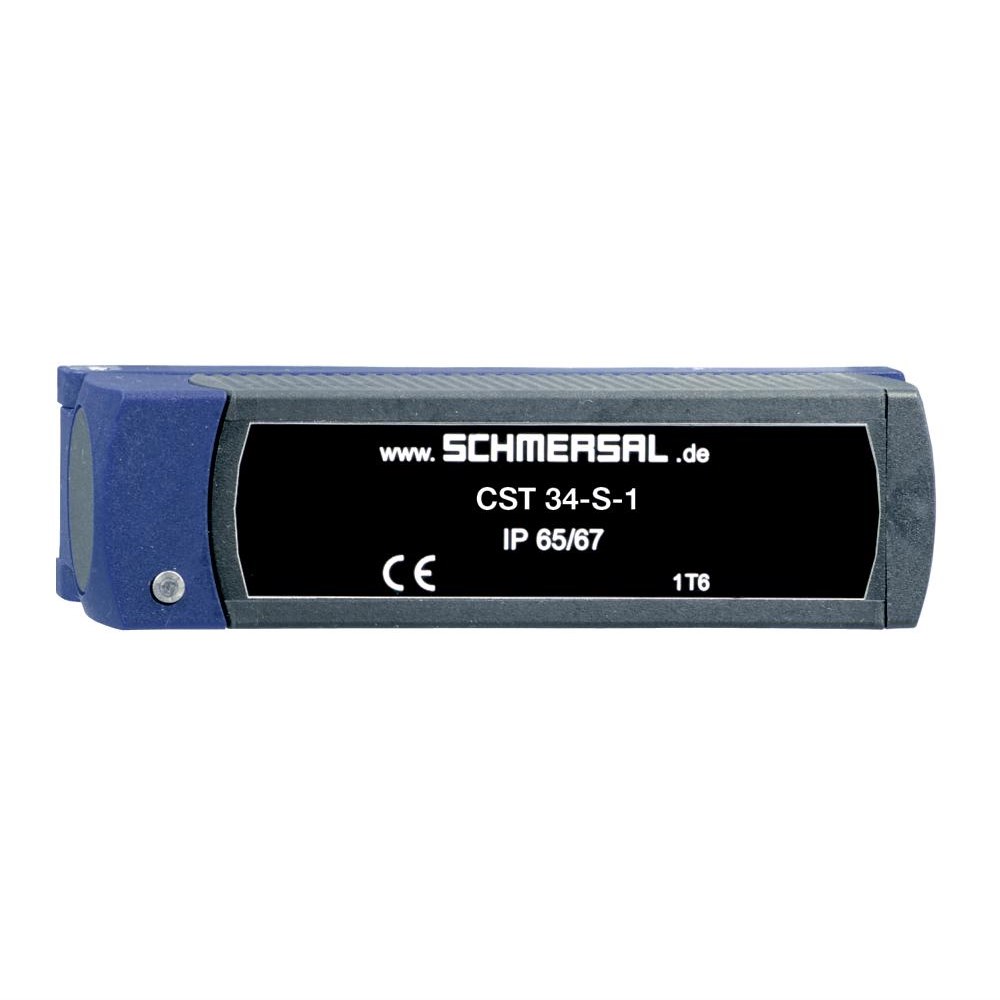

SCHMERSAL CST34-S-1 SAFETY SENSOR 101181085

Product Code: 101181085

Explore the Schmersal CST34 series safety sensors, designed to enhance machine safety. This robust plastic actuator features a lateral active area and boasts dimensions of 35 mm in length, 102 mm in width, and 27 mm in height. Engineered for reliability, this component is an essential addition to your safety system setup.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Explosion Protection Category 2G | 2D
Gross Weight (g) 20
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Net Weight (g) 115
No. of Safety Contacts 1
Rated Short-circuit Current (A) 100
Sensor Height (mm) 84
Sensor Length (mm) 14.5
Switching Element NO contact, NC contact
Switching Principle Snap action
Utilisation Category DC-13 | AC-15
Working Principle RFID
Actuator Type Roller lever
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.2
Minimum Mechanical Life 10000000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Series CST34
Standards EN IEC 60947-5-3 / BG-GS-ET-14
Terminal Type Screw terminals M20 x 1.5
