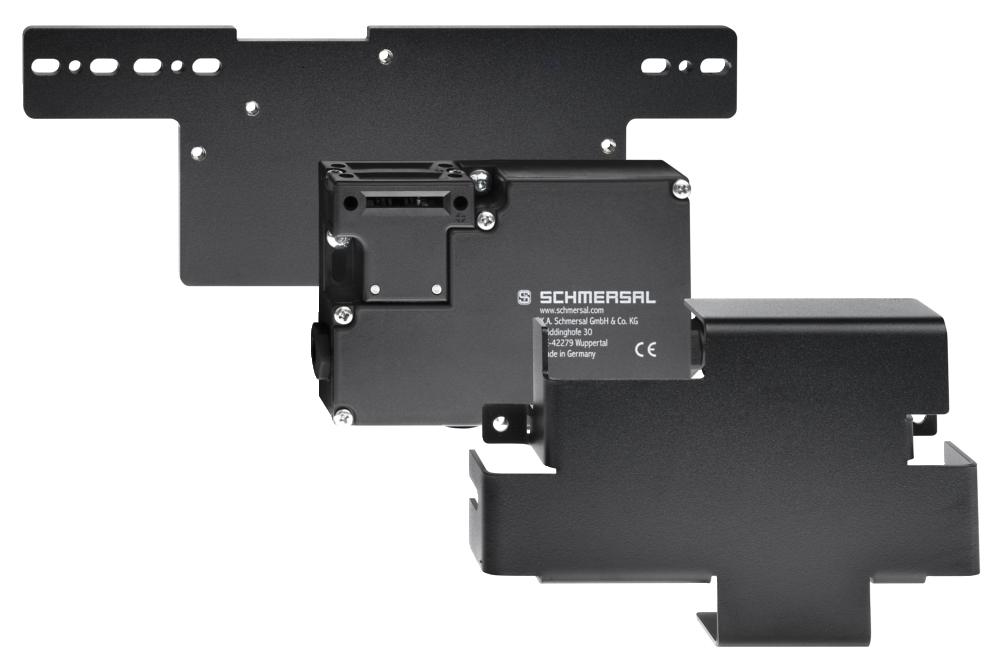

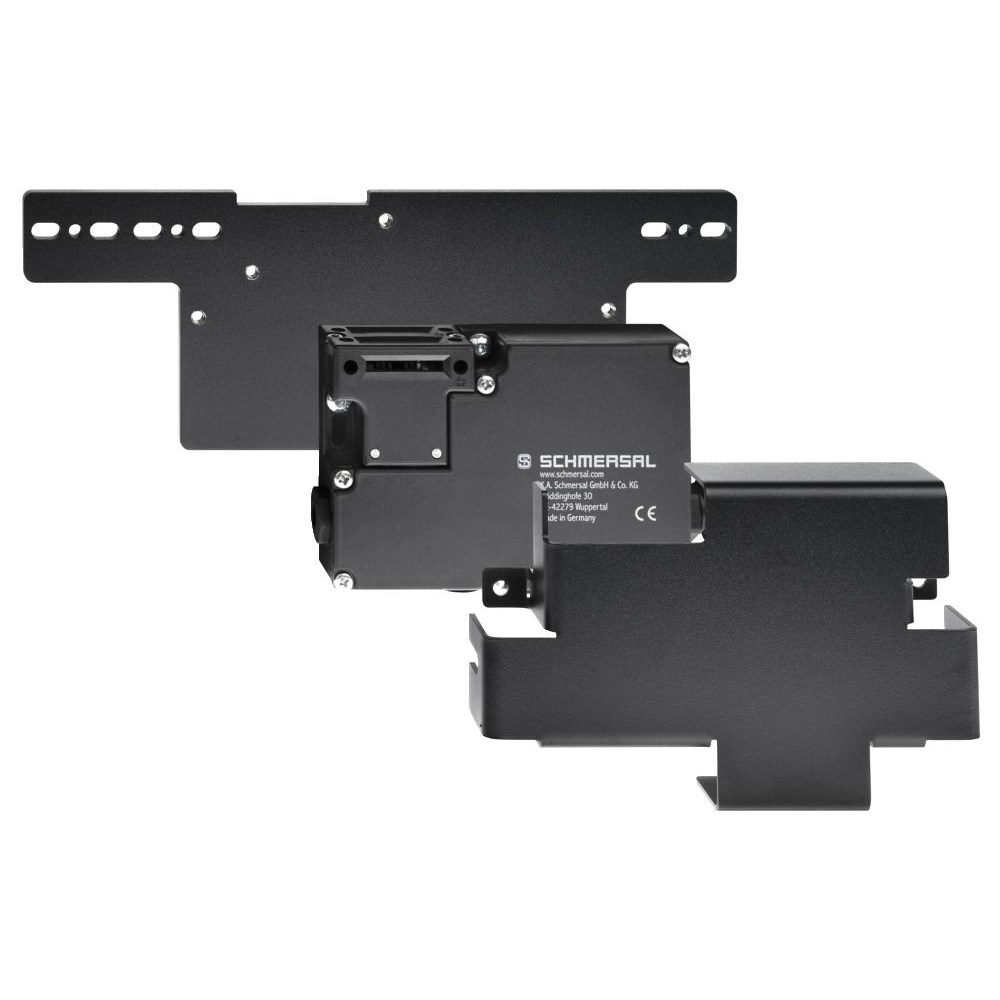

SCHMERSAL EX-AZM161SK-12/12RK-024-3D SOLENOID INTERLOCK 101185420

Product Code: 101185420

The Schmersal EX-AZM Series Solenoid Interlock is a robust safety solution designed for hazardous areas, featuring a durable thermoplastic enclosure with a manual release mechanism. This interlock ensures secure machine guarding with a substantial clamping force of 2000N and a latching force of 30N. It operates with power-to-unlock efficiency and includes screw connections for reliable installation. Engineered for versatility, it supports a rated control voltage of 24 V AC/DC and offers multiple utilization categories: AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 2.5 A. The electrical power requirement is minimal at just 10 W. For enhanced safety integration, it comes equipped with two auxiliary contacts and four safety contacts, alongside NO (normally open) and NC (normally closed) contact switching elements. This solenoid interlock is specifically tailored to meet the stringent demands of engineers working in hazardous environments requiring precise operation and high reliability.

Technical Specifications

Brand SCHMERSAL
Actuator Type Offset roller lever
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-27-27-04
Enclosure Material Metal, zinc die-cast
ETIM 6.0 EC002549
ETIM 7.0 EC002549
Gross Weight (g) 138.5
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 50
Maximum Cable Cross Section (mm²) 1 x 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Temperature (°C) 50
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 20000000 Operations
Minimum Temperature (°C) -10
Net Weight (g) 46000
No. of Safety Contacts 2
Nominal Power (W) 10
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Maximum Operational Voltage AC (V) 24
Rated Maximum Operational Voltage DC (V) 24
Rated Short-circuit Current (A) 100
Sensor Height (mm) 84
Sensor Length (mm) 33
Series EX-AZM
Standards EN IEC 60947-5-1 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN IEC 60947-5-5 / EN IEC 60947-1 / EN 81-20/-50
Standards and Approvals ATEX/IECeX
Switching Element NO/NO contact
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 24 VDC
