Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length (m)	5
Degree of Protection	IP67
Direction of Motion	Head-on to the Active Surface
Explosion Protection Category	3D
Housing Material	Glass-fibre, Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Maximum Ambient Temperature (°C)	70
Maximum Storage Temperature (°C)	70
Maximum Switching Capacity (W)	3
Maximum Switching Current (A)	0.25
Maximum Switching Frequency (Hz)	5
Maximum Switching Voltage AC (V)	100
Maximum Switching Voltage DC (V)	100
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
No. of Normally-closed Contacts	2
No. of Safety Contacts	2
Recommended Actuator	BP 10
Recommended Safety Switchgear	SRB-E-301ST
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Sensor Length (mm)	38.5
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1, EN IEC 60079-0
Termination	Cable
Wire Cross Section (mm²)	0.25mm² (Diameter)

Presence Sensing Safety Devices

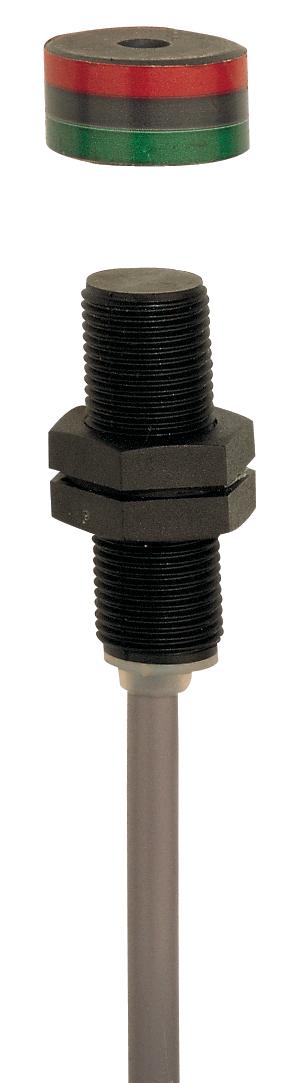

SCHMERSAL EX-BNS 120-02Z-3G/D 5,0MEX MAGNETIC SAFETY SENSOR 101213462
