Specifications

Maximum Cable Cross Section (mm²)	2.5
Rated Insulation Voltage (V)	250
Rated Impulse Withstand Voltage (kV)	4
Thermal Test Current (A)	5
Minimum Ambient Temperature (°C)	-20
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	38
Switching Frequency	1800/h
Sensor Width (mm)	40.5
Minimum Mechanical Life	1000000 Operations
Explosion Protection Category	2G
Utilisation Category	AC-1
Minimum Cable Cross Section (mm²)	1
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Lever Material	Metal Film
Rod Material	Plastic
Maximum Cross Section Diameter (mm)	12
Minimum Cross Section Diameter (mm)	7

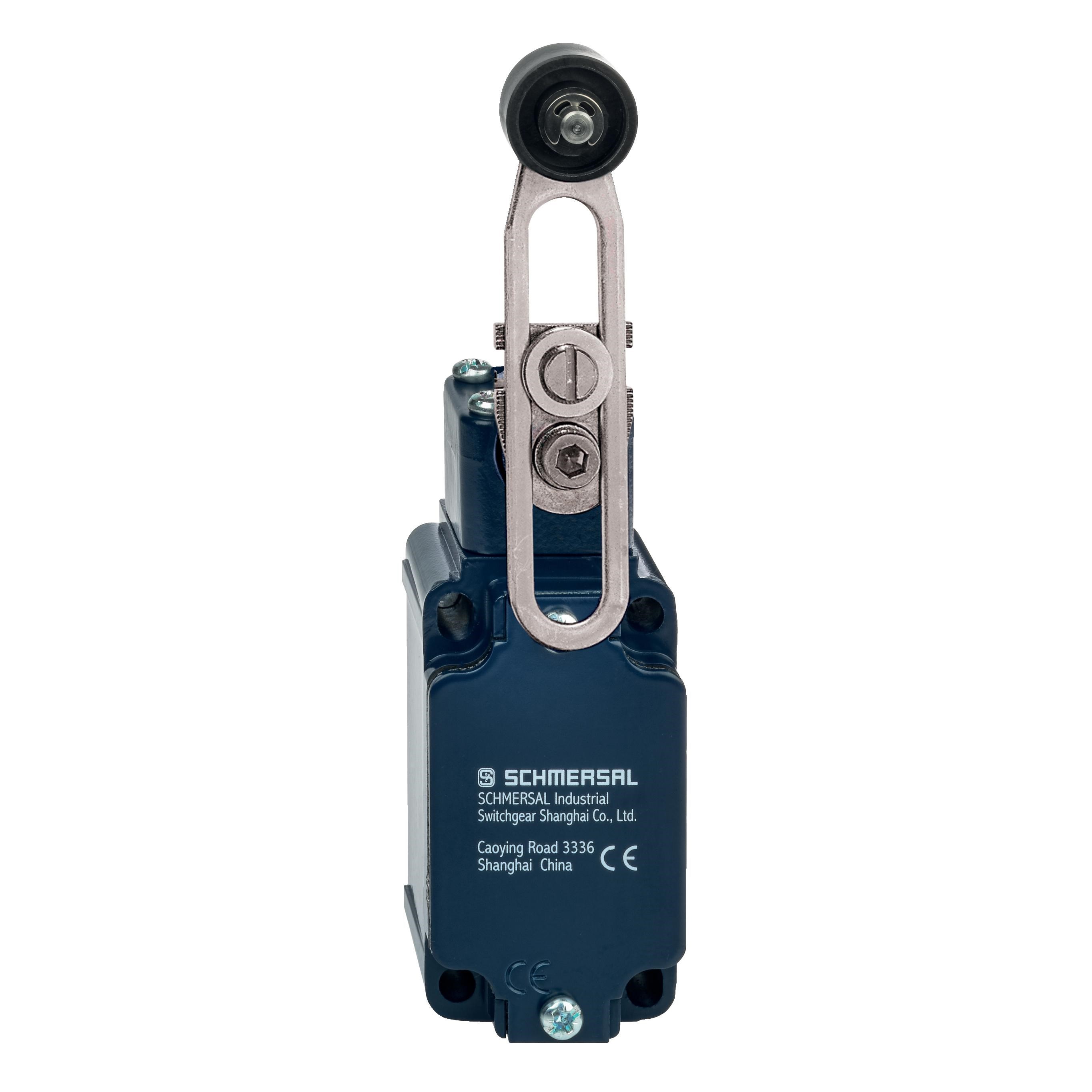

Product Type	EX Position Switch with Safety Function
Brand	SCHMERSAL
Actuating Element	Rod Lever
Actuating Speed	2.5 m/s
Contact Material	Silver
Degree of Protection	IP65
Enclosure Coating Material	Painted
Housing Material	Metal, Die Cast Zinc
Mechanical Life	1000000 Cycles
Operational Temperature	-20 to 60 deg C
Rated Current	5 A
Rated Frequency	1800/h
Rated Insulation Voltage	250 V
Sensor Size	38 mm L x 40 mm W
Standards and Approvals	BG-GS-ET-15, EN IEC 60079-0, EN ISO 13849-1
