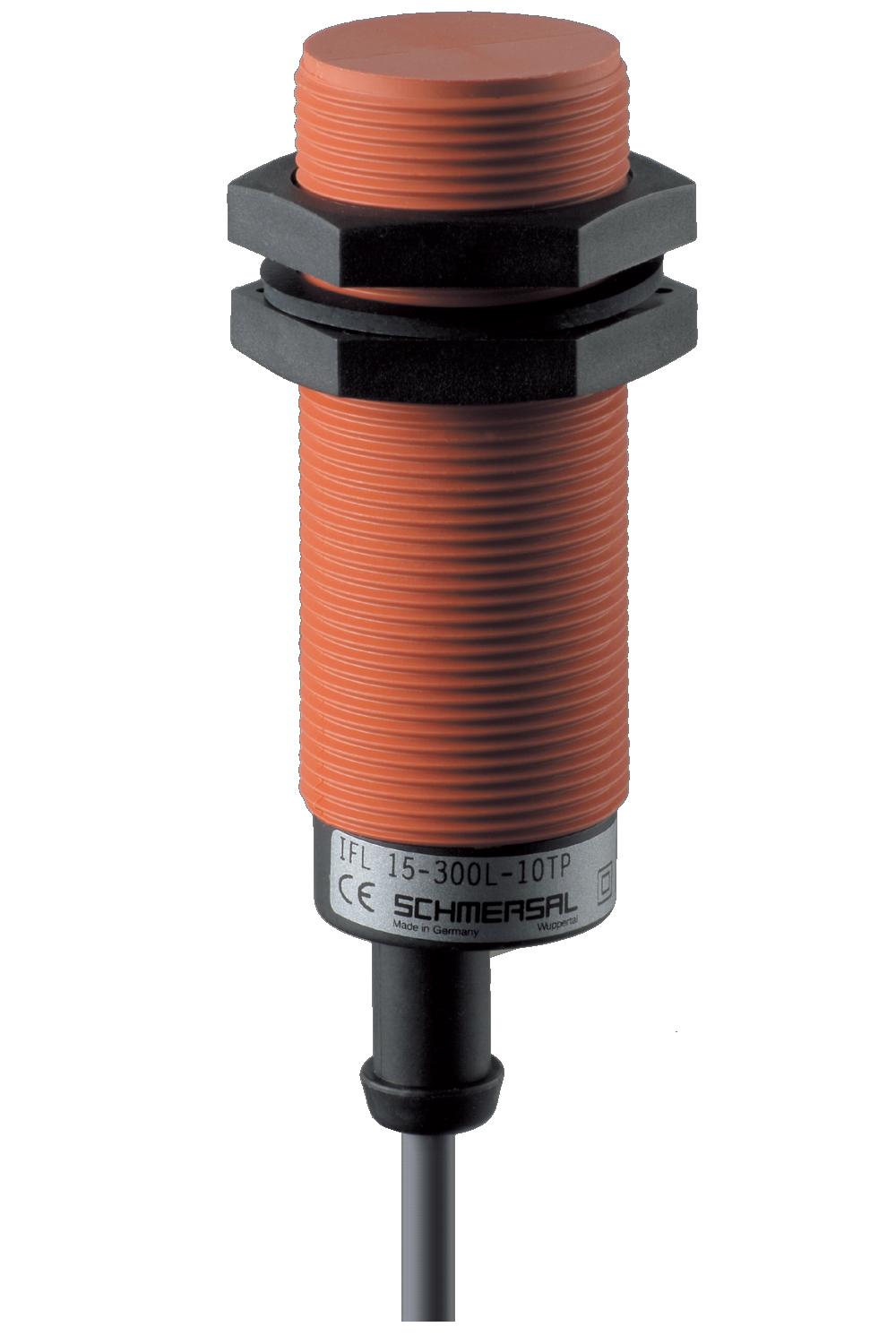

SCHMERSAL IFL 15-300L-01TP INDUCTIVE PROXIMITY SWITCH 101131315

Product Code: 101131315

The Schmersal IFL Series inductive proximity switch is a robust sensor designed for precision position detection in industrial environments. This DC 3-wire, long-bodied cylinder with an M30 ISO thread offers a reliable 15 mm sensing distance and is equipped with a connector cable for easy installation. Engineered with a normally closed (NC) switching element, the unit is housed in durable thermoplastic to withstand harsh conditions. Operating within a voltage range of 10-30VDC and supporting up to 200 mA, this proximity switch boasts a digital output of 1.2 V at 0.2 A, p-type, ensuring accurate performance. It operates at a switching frequency of 100 Hz and includes several protective features such as inductive interference protection, polarity reversal protection, and surge protection to maintain stability and extend service life. With an operating temperature range from -25°C to 70°C and an IP67 rating according to IEC/EN 60532 standards, this sensor ensures reliable operation even in demanding environments. The status indication feature provides quick visual feedback on the device's operational state. Trust the Schmersal brand for high-quality position sensors that deliver consistent results in your automation tasks.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
