Position Switches & Sensors


Product Code: 101097496

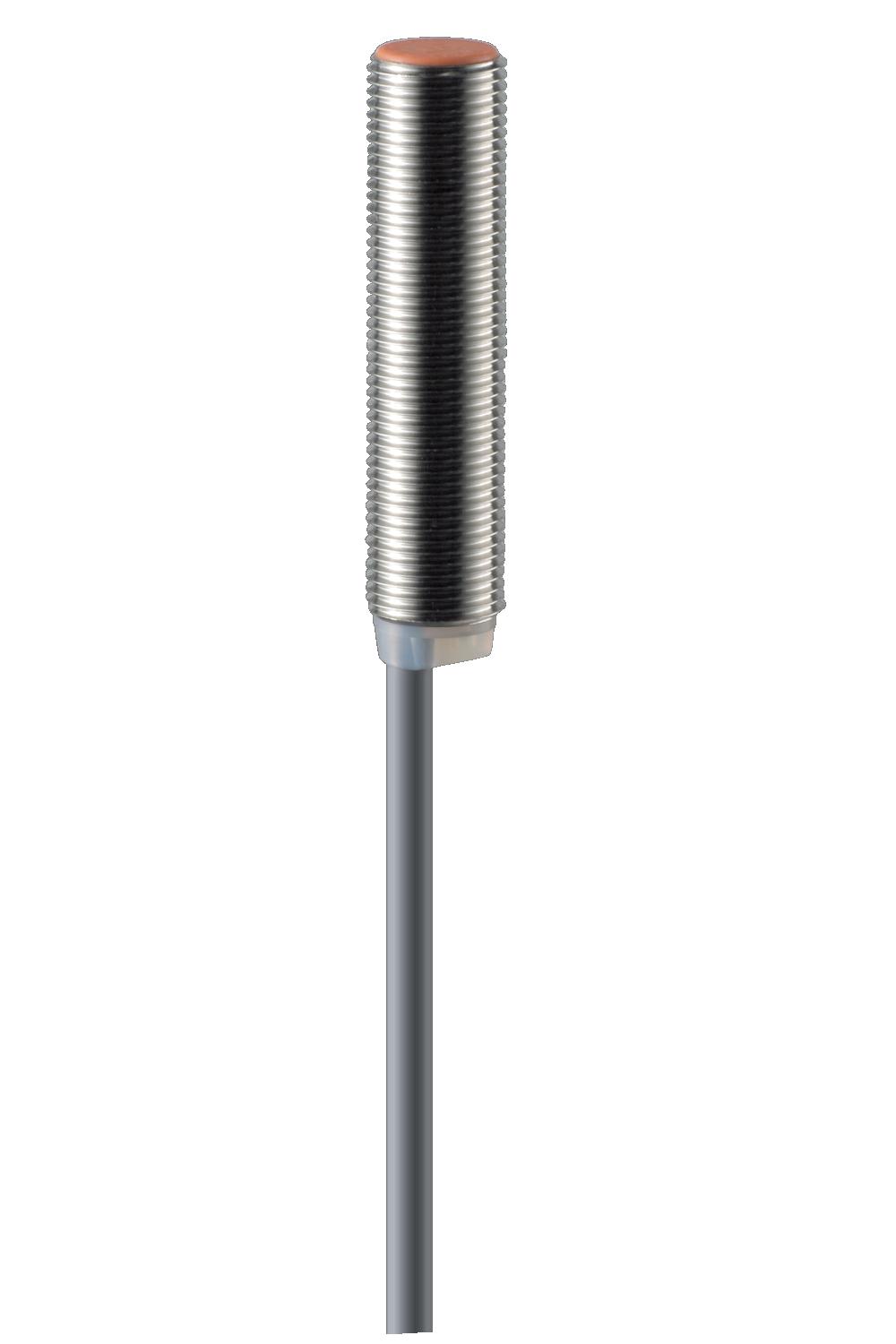

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust and reliable sensor designed for precise positioning tasks. This DC 3-wire cylindrical sensor features a 2 mm sensing distance and is equipped with a durable 2-meter cable. It boasts an M12 ISO thread for easy integration into various applications. The switch operates on a voltage range of 10-30VDC with a current capacity of 200 mA and can handle switching frequencies up to 1,000 Hz. Engineered with a normally open contact (NO) switching element, this proximity switch ensures seamless operation within your system. Its brass enclosure provides sturdy protection in demanding environments, while the device maintains functionality in temperatures ranging from -25°C to 70°C. Safety is paramount; hence the switch includes inductive interference protection, polarity reversal protection, and surge protection to safeguard against electrical anomalies. Rated IP67 according to EN 60529, it guarantees resistance to dust and water ingress, making it suitable for use in harsh conditions. Optimize your automation processes with this high-performance position sensor from Schmersal's trusted lineup of industrial components.

Technical Specifications

Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Degree of Protection IP67
Mounting Type Threaded
Series IFL
