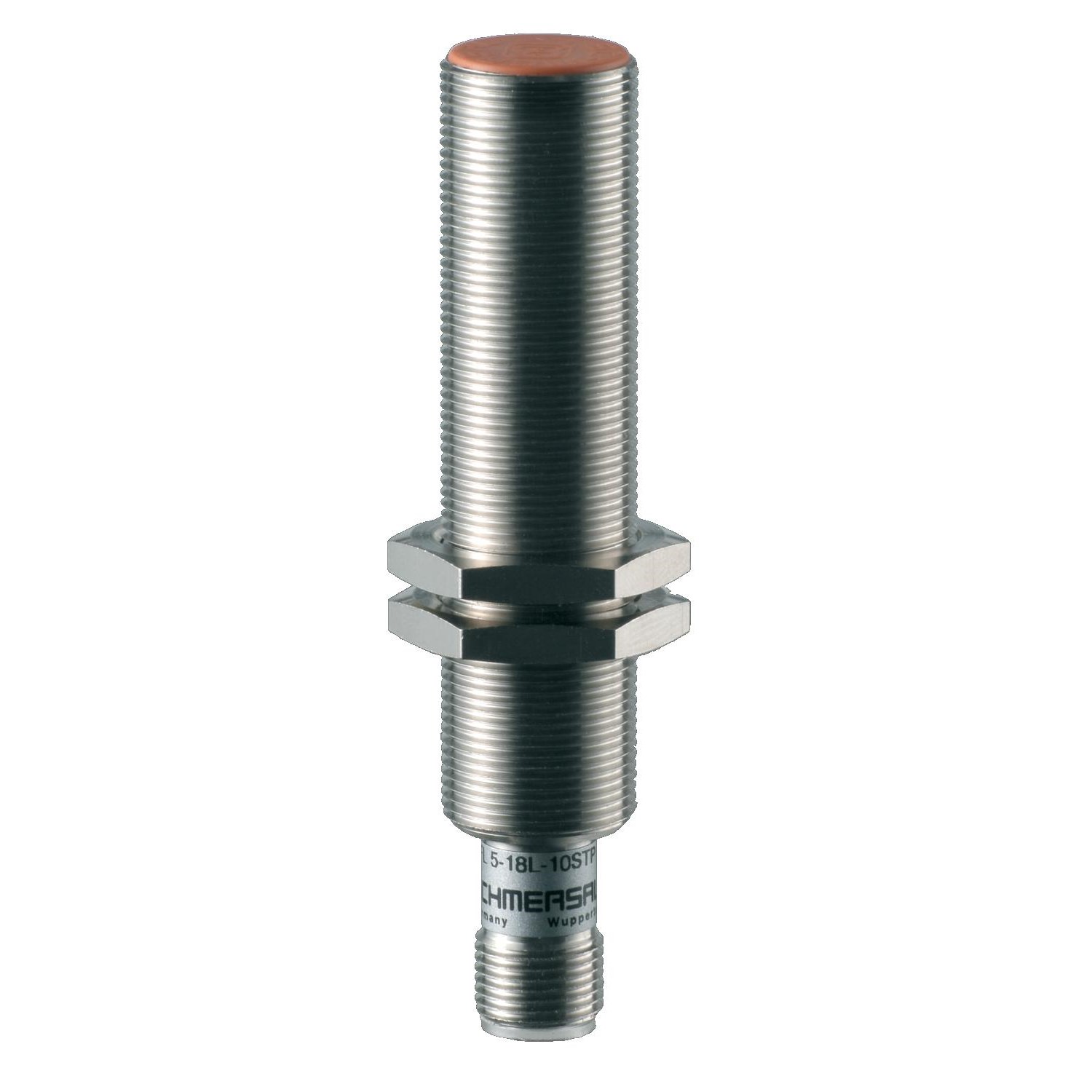

SCHMERSAL IFL5-18L-10STP INDUCTIVE PROXIMITY SWITCH 101125564

Product Code: 101125564

Explore the Schmersal IFL Series inductive proximity switch, a robust sensor designed for precision and durability. This DC 3-wire, long-bodied sensor features a cylindrical thread with an M18 ISO thread and an M12 connector, ensuring easy integration into your system. With a reliable 5 mm sensing distance and NO contact switching element, it offers consistent performance in various applications. Constructed with a sturdy metal enclosure, this proximity switch operates within a voltage range of 10-30VDC and can handle up to 200 mA of current. It boasts a high switching frequency of 400 Hz and provides a digital output of 1.2 V at 0.2 A, p-type. Engineered with inductive interference protection, polarity reversal protection, and surge protection, it ensures uninterrupted operation even in challenging industrial environments. The unit includes status indication for real-time monitoring and operates effectively within a temperature range of -25°C to 70°C. Rated IP67 according to IEC/EN 60532 standards, the Schmersal IFL Series is well-suited for demanding applications requiring dust and water ingress protection. Whether you're managing automation tasks or precise positioning requirements, this inductive proximity switch delivers reliable detection with enhanced safety features.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
