| Actuator Type |
Magnet |
| Enclosure Material |
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Mounting Type |
Threaded |
| Storage Temperature (°C) |
-25 to 70 |
| Maximum Ambient Temperature (°C) |
70 |
| Maximum Temperature (°C) |
70 |
| Minimum Ambient Temperature (°C) |
-25 |
| Minimum Temperature (°C) |
-25 |
| Gross Weight (g) |
225.04 |
| Net Weight (g) |
20 |
| Installation Conditions |
Not flush |
| Wire Cross-Section |
0.5 mm |
| Enclosure Coating Material |
Painted |

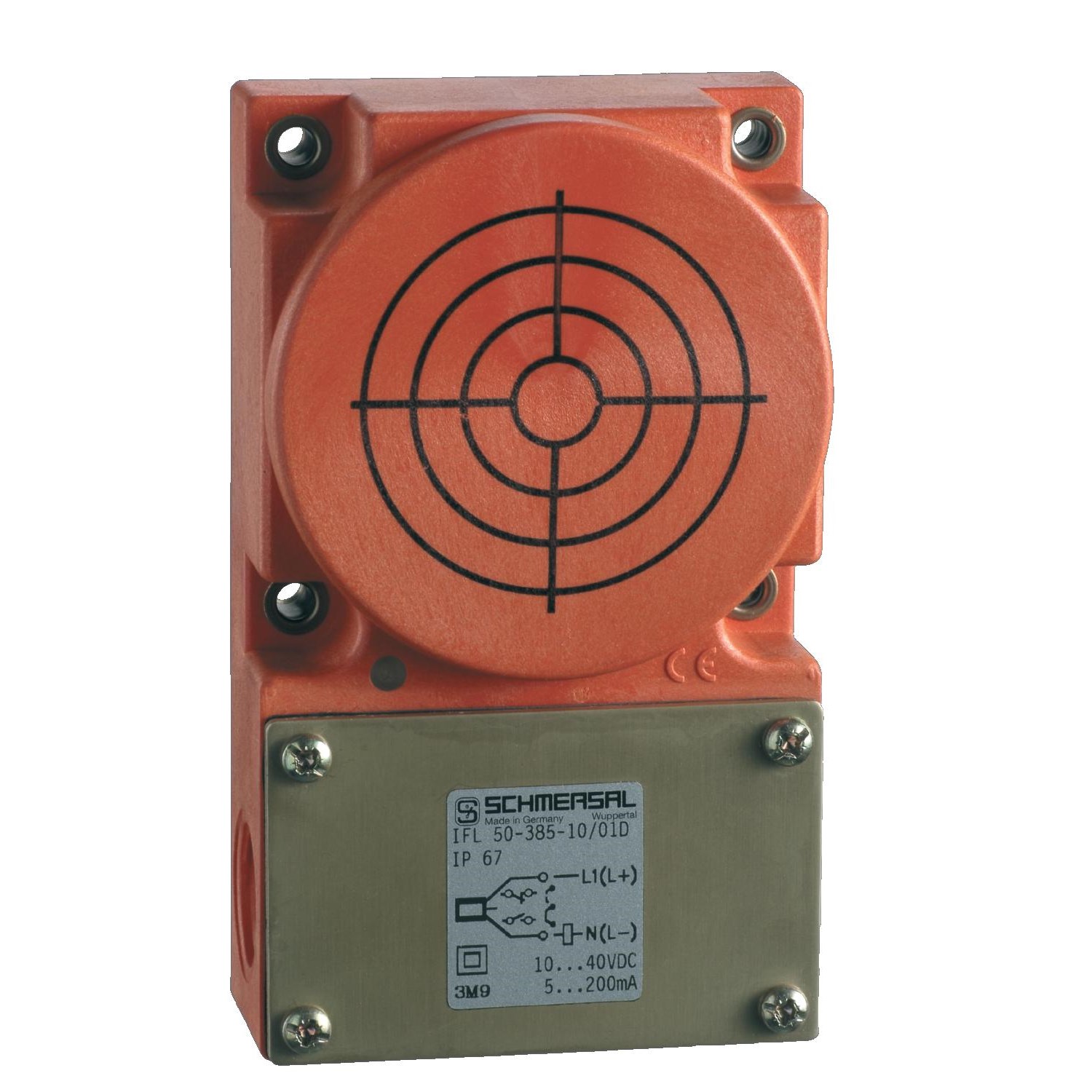

| Brand |
SCHMERSAL |
| Product Type |
Proximity Switch |
| Series |
IFL |
| Working Principle |
Electromechanical |
| Housing Construction Form |
Norm construction design |
| EAN |
4030660000000 |
| eCl@ss Number, Version 9.0 |
27-27-26-03 |
| Coding Level According to EN ISO 14119 |
Low |
| ETIM 7.0 |
EC000030 |
| ETIM 6.0 |
EC002544 |
| eCl@ss Number, Version 11.0 |
27-37-12-19 |
| Protection Class of Operating Resource |
3 |
| Cable Note |
All indications including the conductor ferrules. |
| Recommended Safety Switchgear |
PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
| Contact Material |
Silver-nickel alloy 10 |
| Maximum Actuating Speed (m/s) |
1 |
| Maximum Cable Cross Section (mm²) |
1.5 |
| Maximum Fuse Rating |
6 A gG D-fuse |
| Maximum Nominal Output Voltage DC (V) |
5.5 |
| Minimum Actuating Speed (mm/min) |
10 |
| Minimum Cable Cross Section (mm²) |
0.34 |
| Minimum Mechanical Life |
1000000 Operations |
| Minimum Positive Break Force (N) |
20 |
| No. of Auxiliary Contacts |
1 |
| No. of Safety Contacts |
2 |
| Nominal Output Current (A) |
0.2 |
| Overvoltage Category |
3 |
| Rated Impulse Withstand Voltage (kV) |
6 |
| Rated Insulation Voltage (V) |
500 |
| Rated Maximum Operational Voltage DC (V) |
40 |
| Rated Minimum Operational Voltage DC (V) |
10 |
| Rated Short-circuit Current (A) |
1000 |
| Resistance to Shock (g/ms) |
30 / 11 |
| Switching Element |
1 NO contact, 1 NC contacts |
| Switching Principle |
Slow action |
| Terminal Type |
Connector |
| Height (mm) |
20 |
| Width (mm) |
45 |
| Utilisation Category |
DC-13 | AC-15 |
| Sensor Length (mm) |
46 |
| Sensor Height (mm) |
89.5 |
| Degree of Protection |
IP67 |
| Pollution Degree |
3 |
| Standards |
EN IEC 61496-1 / EN IEC 61496-2 |
