SCHMERSAL IFL10-180-10 INDUCTIVE PROXIMITY SWITCH 101092423

Product Code: 101092423

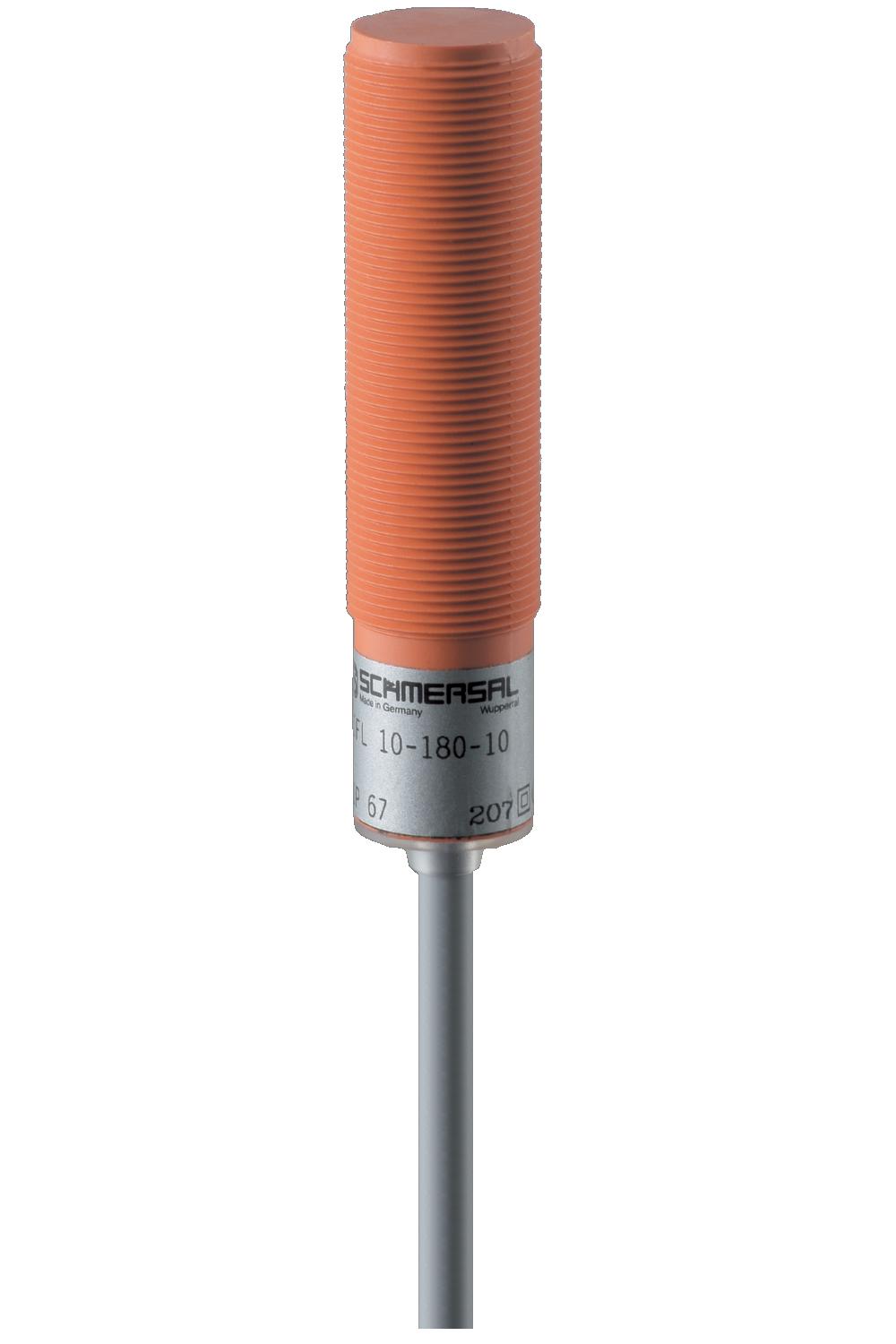

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precise positioning tasks in industrial environments. This AC 2-wire proximity switch features a cylindrical M18 ISO thread design with a reliable 10 mm sensing distance. Equipped with an opener (NO) switching element and a durable thermoplastic enclosure, it ensures consistent performance with double insulation. Operating within a voltage range of 15 to 250VAC and capable of handling up to 500 mA, this switch is engineered for efficiency with a switching frequency of 10 Hz. Its digital output is rated at 4.5 V and 0.2 A, utilizing a two-wire system that includes inductive interference protection for stable operation. The device also offers clear status indication and operates effectively between temperatures of -25°C to 70°C. With an IP67 rating according to IEC/EN 60530 standards, it promises resilience against dust and water ingress. The included H03VV-F connector cable ensures easy installation for various applications within the Position Sensors category.

Technical Specifications

No. of Actuating Directions 2
Brand SCHMERSAL
Actuator Type Roller plunger
Assured "OFF" Switching Distance (mm) 20
Assured "ON" Switching Distance (mm) 10
Cable Length (m) 200
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP67
Depth (mm) 115
Design of Control Element Short-circuit proof, p-type
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-27-92
eCl@ss Number, Version 9.0 27-27-27-92
Enclosure Coating Material Painted
Enclosure Material Plastic
ETIM 6.0 EC002544
ETIM 7.0 EC000030
Gross Weight (g) 40.39
Height (mm) 45
Housing Construction Form Norm construction design
Installation Conditions Not flush
Latching Force (N) 30
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 55
Maximum Bounce Duration (ms) 3
Maximum Cable Cross Section (mm²) 1 x 2.5
Maximum Electrical Power Consumption (W) 5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Holding Force (N) 1500
Maximum Nominal Output Voltage DC (V) 4.5
Maximum Switching Capacity (W) 10
Maximum Temperature (°C) 70
Minimum Actuating Force (N) 17
Minimum Actuating Speed (mm/min) 492
Minimum Ambient Temperature (°C) 0
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 40
Minimum Temperature (°C) -25
Mounting Type Threaded
Net Weight (g) 25.885
No. of Auxiliary Contacts 2
No. of Normally-open Contacts 2
No. of Safety Contacts 2
Nominal Output Current (A) 0.2
Overvoltage Category 3
Pollution Degree 2
Positive Break Travel (mm) 10
Protection Class of Operating Resource 2
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Maximum Operational Voltage AC (V) 250
Rated Minimum Operational Voltage AC (V) 15
Rated Operating Current (mA) 50
Rated Operational Current (A) 0.5
Rated Short-circuit Current (A) 400
Recommended Actuator MZM 100-B1.1
Recommended Safety Switchgear SRB 301AN | SRB-E-301ST | SRB-E-201LC
Resistance to Shock (g/ms) 50 / 6
Sensor Height (mm) 36
Sensor Length (mm) 39
Series IFL
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Storage Temperature (°C) -25 to 70
Switching Element 1 NO contact, 1 NC contacts
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category AC-15
Utilisation Category AC-15 2.5 A
Width (mm) 165
Wire Cross-Section 0.25 mm
Working Principle Magnetic drive
