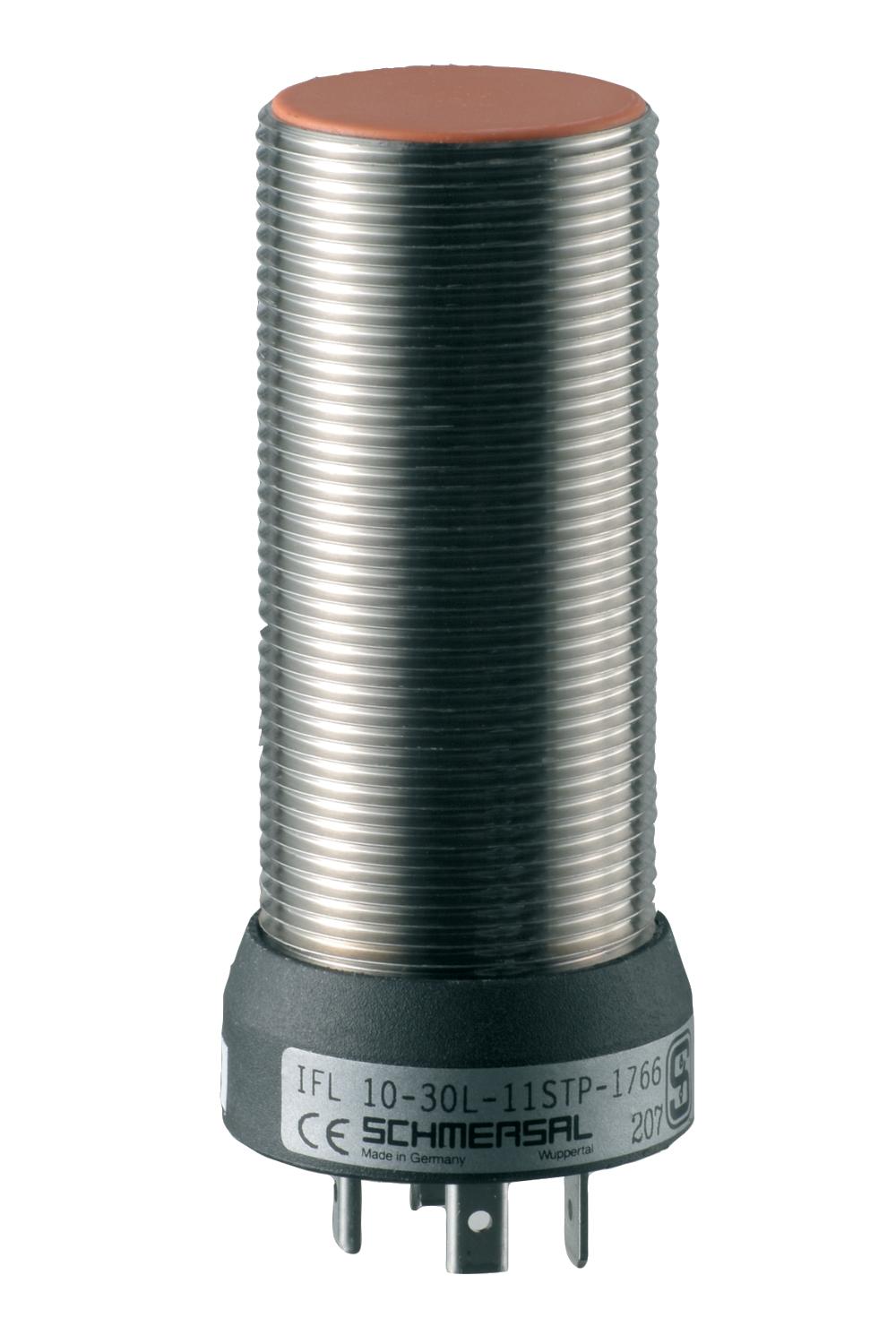

SCHMERSAL IFL10-30L-11STP-1766 INDUCTIVE PROXIMITY SWITCH 101127013

Product Code: 101127013

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precision positioning and detection in industrial environments. This DC 4-wire, long-bodied sensor features a 10 mm sensing range with an M30 ISO thread for easy installation. It operates within a voltage range of 10-60VDC at 200 mA and offers a high switching frequency of 150 Hz. The switch includes both normally open (NO) and normally closed (NC) contacts, providing versatile output options. Enhanced with digital output capabilities (1 V, 0.2 A, p-type), inductive interference protection, polarity reversal protection, and clear status indication, it ensures reliable performance from 0°C to 110°C. Rated IP67 for excellent resistance to dust and water ingress, this proximity switch is an ideal choice for demanding applications requiring precise and durable sensors.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1
Maximum Temperature (°C) 110
Minimum Temperature (°C) 0
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
