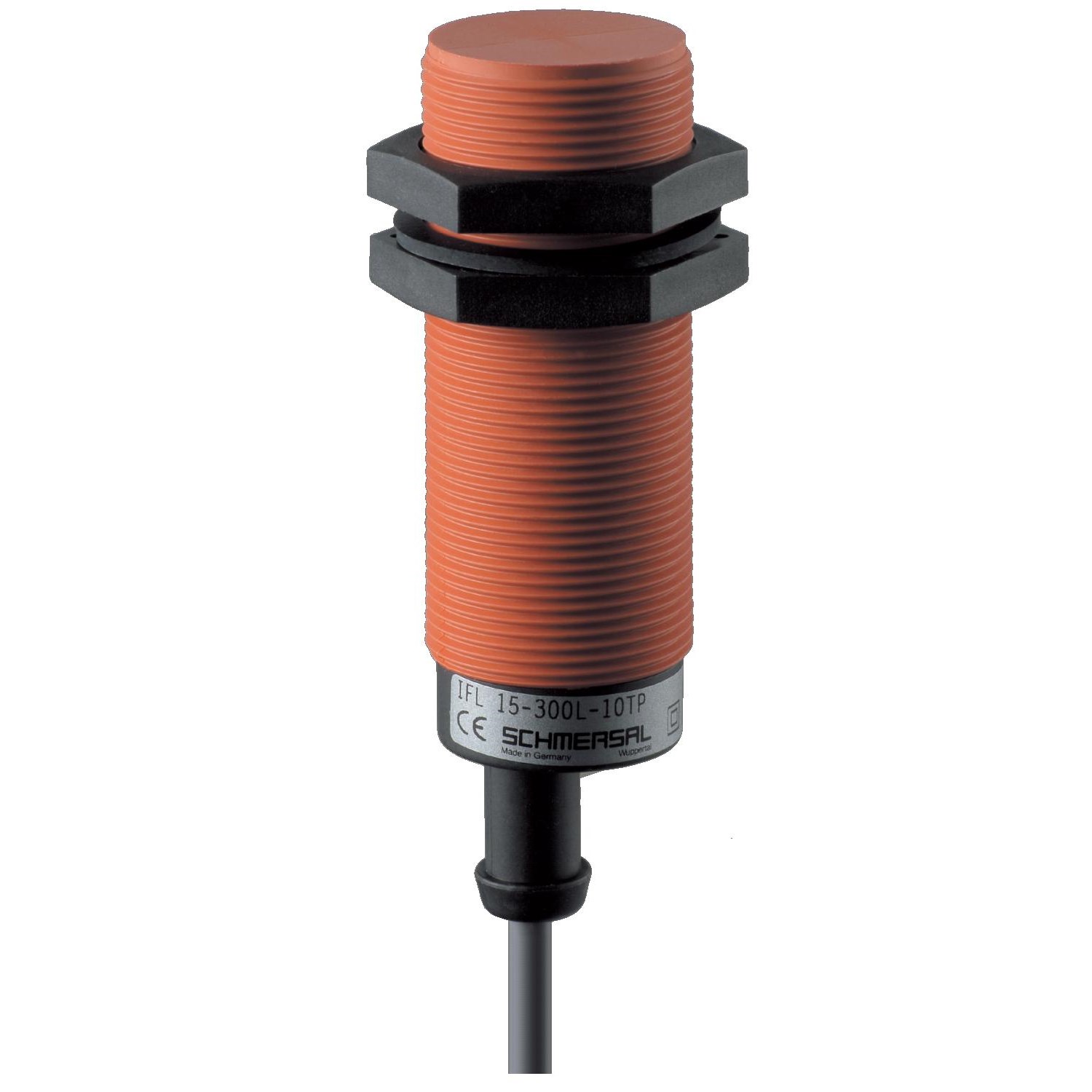

SCHMERSAL IFL15-300L-10TP INDUCTIVE PROXIMITY SWITCH 101126977

Product Code: 101126977

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision and durability. This DC 3-wire, long-bodied switch features a cylindrical M30 ISO thread design, ensuring easy integration into various applications. With a reliable 15 mm sensing distance and NO contact switching element, it offers consistent performance in position sensing tasks. Constructed with a sturdy thermoplastic enclosure, this proximity switch operates within a voltage range of 10-30VDC and can handle up to 200 mA of current. Its digital output is rated at 1.2 V and 0.2 A, p-type, complemented by an efficient switching frequency of 100 Hz. Safety is paramount with built-in inductive interference protection, polarity reversal defense, and surge protection mechanisms. The device also includes status indication for real-time monitoring and operates effectively in temperatures ranging from -25°C to 70°C. Certified with an IP67 rating according to IEC/EN 60532 standards, the Schmersal inductive proximity switch promises reliability even in demanding environments. Whether automating factory processes or enhancing machine operations, this sensor delivers precise detection with longevity in mind.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
