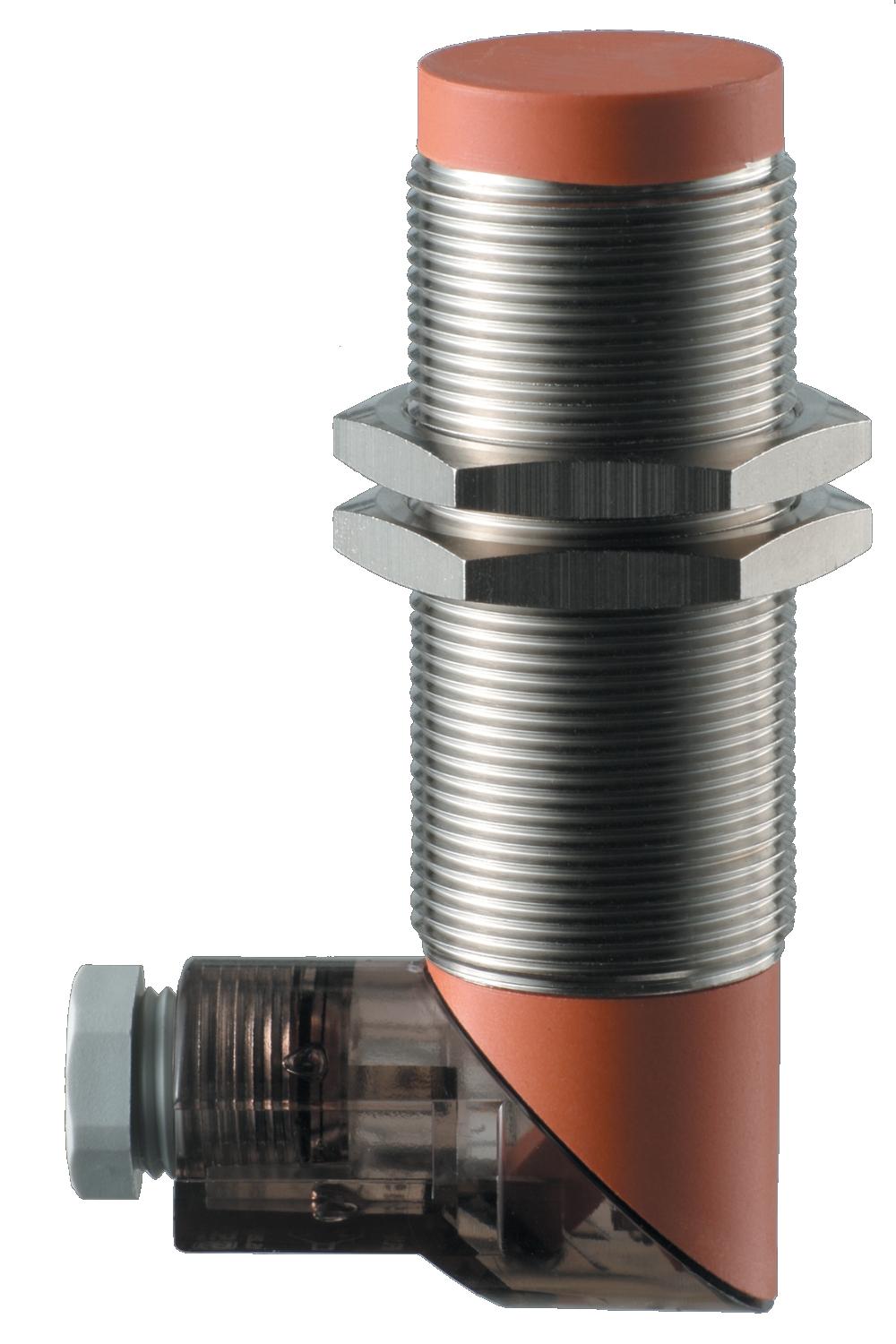

SCHMERSAL IFL15-30L-10/01P INDUCTIVE PROXIMITY SWITCH 101127034

Product Code: 101127034

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precision position sensing in demanding industrial environments. This DC 3-wire, long-bodied sensor features a cylindrical M30 ISO thread design for easy installation. With a reliable detection range of 15 mm and versatile NO/NC contact options, it ensures seamless integration into various control systems. Operating within a voltage range of 10 to 60VDC and capable of handling up to 400 mA, this proximity switch boasts a switching frequency of 100 Hz. Its digital output is rated at 1.5 V and 0.4 A, p-type, ensuring clear signal transmission even in the presence of inductive interference, thanks to its built-in protection. Engineered for resilience, the switch includes polarity reversal protection and offers status indication for real-time monitoring. It operates effectively between temperatures of -25°C to 70°C and is IP67 certified according to IEC/EN 60532 standards, guaranteeing protection against dust and water ingress. Ideal for engineers seeking reliable position sensors, the Schmersal IFL Series stands out as a durable solution that combines performance with longevity in industrial applications.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.5
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.4
Series IFL
