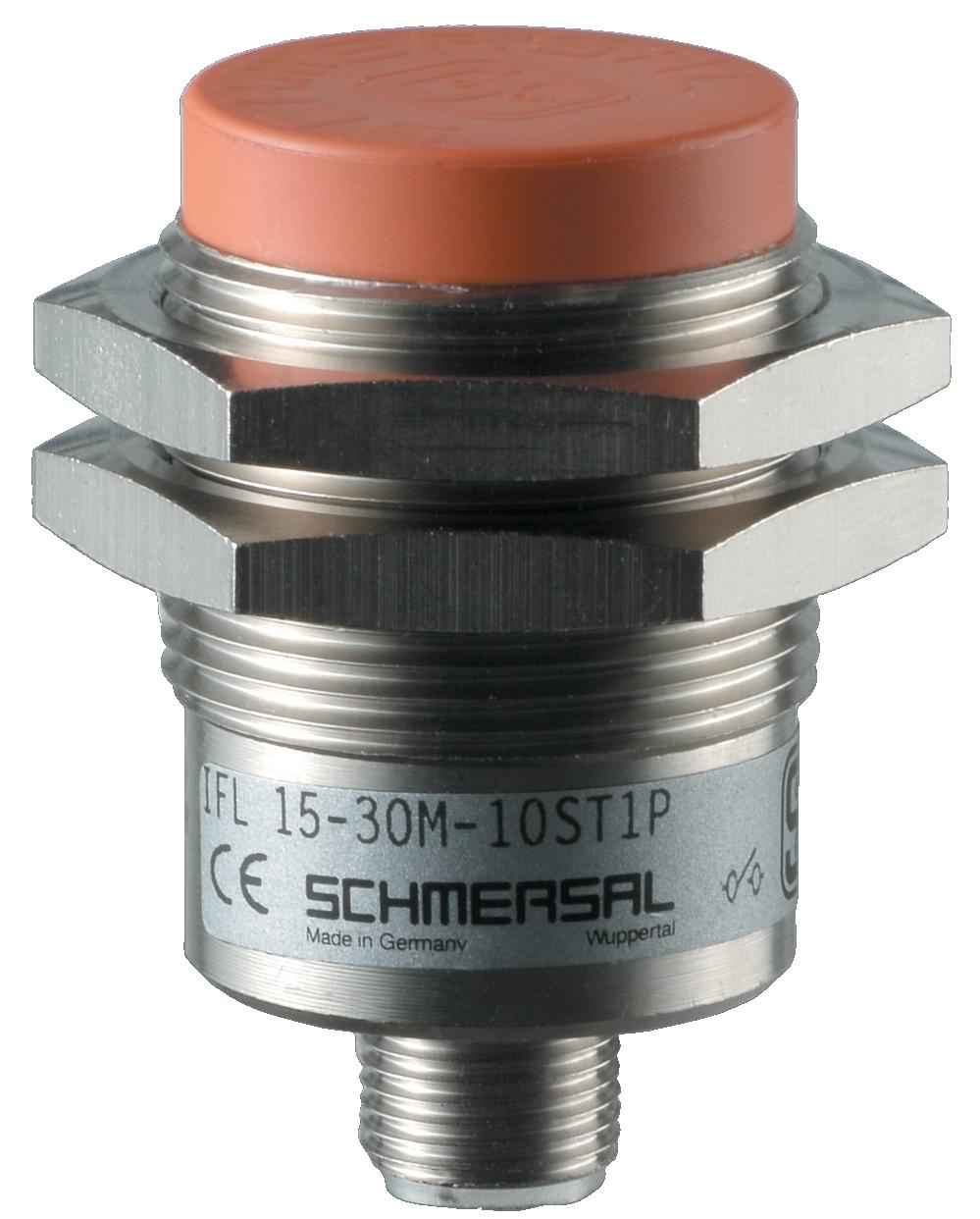

SCHMERSAL IFL 15-30M-10ST1P INDUCTIVE PROXIMITY SWITCH 101127039

Product Code: 101127039

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust and precise position sensor designed for industrial applications. This DC 3-wire sensor features a compact, miniature body with an M30 ISO threaded cylinder, ensuring easy integration into machinery. With a reliable 15 mm sensing distance and an M12 connector, it offers a normally open (NO) contact switching element encased in a durable metal enclosure. Operating within a voltage range of 10 to 30VDC and capable of handling up to 200 mA, this sensor maintains high performance with a switching frequency of 100 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, ensuring accurate signal transmission even in environments with inductive interference. Safety is paramount; hence the switch includes protection against polarity reversal and surges, alongside an operational temperature range from -25°C to 70°C. It also boasts an IP67 rating according to IEC/EN 60532 standards for dust and water resistance. The Schmersal IFL proximity switch comes equipped with status indication for real-time monitoring, making it an essential component for engineers seeking reliable and efficient position sensing solutions.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
