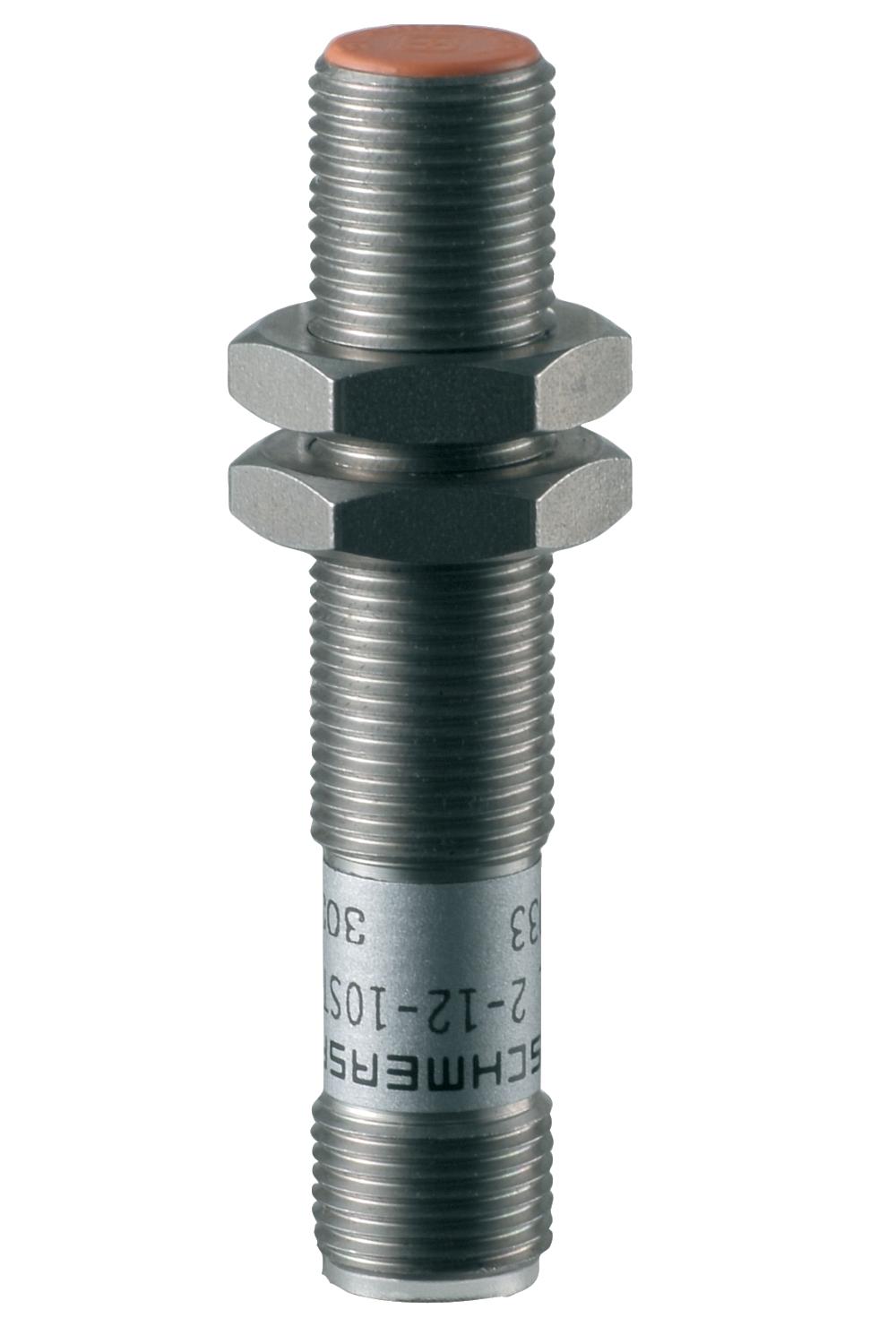

SCHMERSAL IFL 2-12-01STP INDUCTIVE PROXIMITY SWITCH 101100696

Product Code: 101100696

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision and durability. This DC 3-wire cylindrical switch boasts a 2 mm sensing distance and is equipped with an M12 connector, conforming to ISO thread standards. Engineered as an opener (NC) switching element, it features a sturdy metal enclosure suitable for demanding environments. Operating within a voltage range of 10-30VDC and supporting up to 200 mA, this proximity switch ensures rapid response with a switching frequency of 1000 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, ensuring reliable performance while safeguarding against inductive interference, polarity reversal, and surges. Designed to operate between -25°C to 70°C, the switch maintains functionality in diverse conditions and offers IP67 protection according to IEC/EN 60529 standards. With its clear status indication feature, engineers can easily monitor the device's operation in real-time. Ideal for position sensing applications where precision is paramount, the Schmersal IFL Series is an excellent choice for engineers seeking reliable sensors with advanced protective features.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
