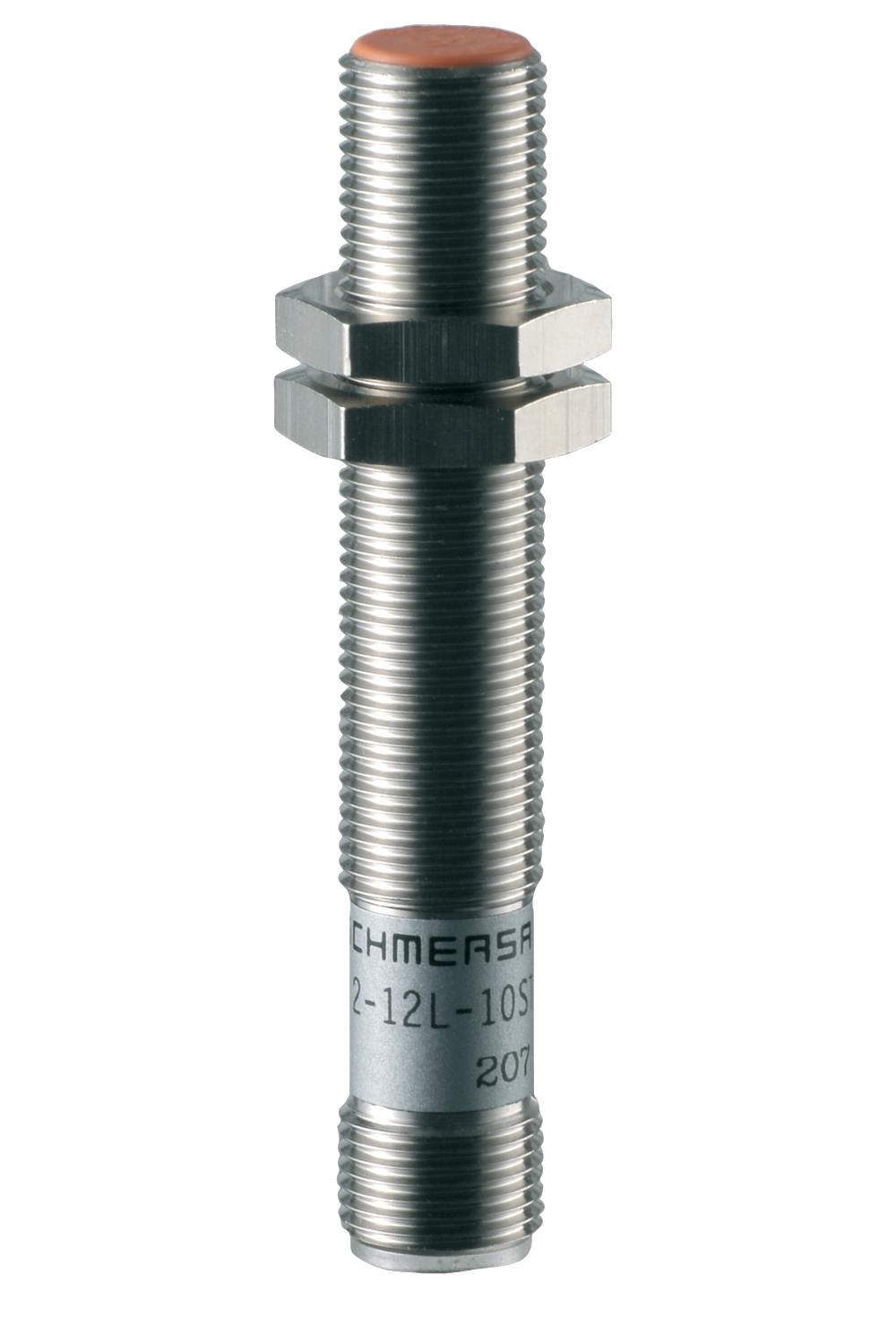

SCHMERSAL IFL2-12L-01STP INDUCTIVE PROXIMITY SWITCH 101113716

Product Code: 101113716

The Schmersal IFL Series inductive proximity switch is a high-precision position sensor designed for industrial applications. This DC 3-wire cylindrical sensor features a 2 mm switching distance and an M12 connector with ISO thread, ensuring easy integration into existing systems. Its robust brass enclosure guarantees durability, while the opener (NC) switching element provides reliable operation. With an operating voltage range of 10 to 30VDC and a current rating of 200 mA, this sensor can handle demanding environments. It boasts a high switching frequency of 1,000 Hz and offers a digital output of 1.2 V at 0.2 A, p-type. Engineered with inductive interference protection, polarity reversal protection, and surge protection, it ensures stable performance even in electrically noisy conditions. The device operates effectively within a temperature range from -25°C to 70°C and meets IP67 standards according to EN 60529 for water and dust resistance. Ideal for engineers seeking a reliable sensing solution, the Schmersal IFL inductive proximity switch is an essential component for precise positioning tasks in various industrial settings.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
