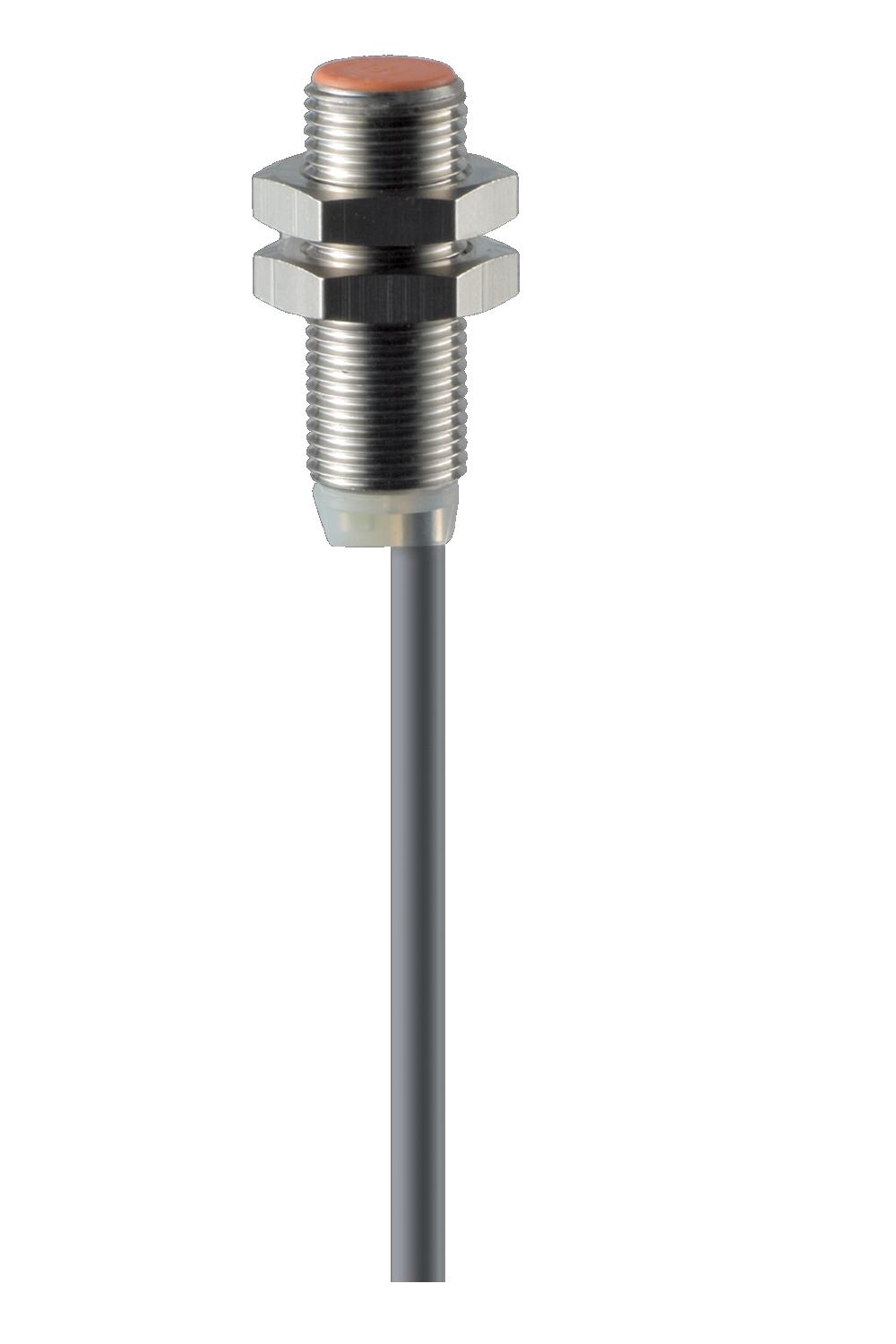

SCHMERSAL IFL 2-12M-01P INDUCTIVE PROXIMITY SWITCH 101097202

Product Code: 101097202

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust positioning sensor designed for precision and durability. This DC 3-wire cylindrical switch boasts a 2 mm sensing distance and is equipped with a 2-meter cable, featuring an M12 ISO thread for secure installation. The device operates as an opener (NC) within a brass enclosure, ensuring longevity in harsh environments. Engineered to function within a wide operating voltage range of 10-30VDC at 200 mA, it can handle switching frequencies up to 1,000 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, safeguarded by inductive interference protection, polarity reversal protection, and surge protection features. The Schmersal proximity switch operates reliably across temperatures from -25°C to 70°C and meets IP67 standards according to EN 60529 for water and dust resistance. Ideal for engineers seeking precise position sensors that offer consistent performance and resilience in industrial settings.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
