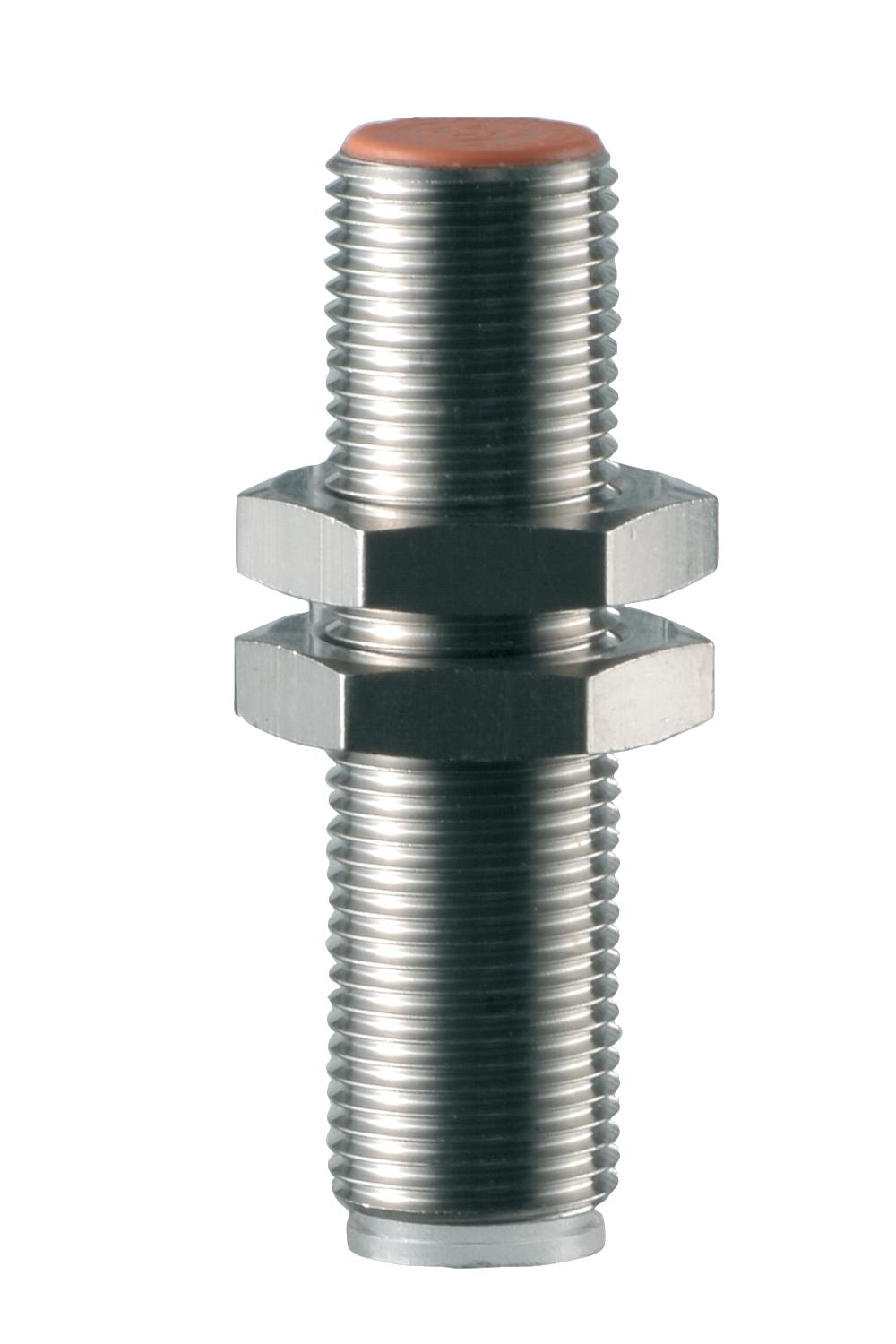

SCHMERSAL IFL 2-12M-01STP INDUCTIVE PROXIMITY SWITCH 101096909

Product Code: 101096909

The Schmersal IFL Series inductive proximity switch is a high-precision position sensor designed for demanding industrial environments. This robust sensor features a 2 mm switching distance and is equipped with an M12 connector, conforming to ISO thread standards. Its durable brass enclosure ensures longevity, while the opener (NC) switching element provides reliable operation. Engineered for DC 3-wire systems, the unit operates within a voltage range of 10 to 30VDC and can handle up to 200 mA of current. It boasts a rapid switching frequency of 1,000 Hz and offers a digital output of 1.2 V at 0.2 A, p-type. The device is safeguarded against inductive interference, polarity reversal, and power surges, ensuring consistent performance. Suitable for use in temperatures ranging from -25°C to 70°C, this proximity switch also meets IP67 standards according to EN 60529 for dust and water resistance. Whether you're integrating into automation or maintaining critical machinery, the Schmersal IFL Series delivers reliable detection and control where precision matters most.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
