Position Switches & Sensors


Product Code: 101097201

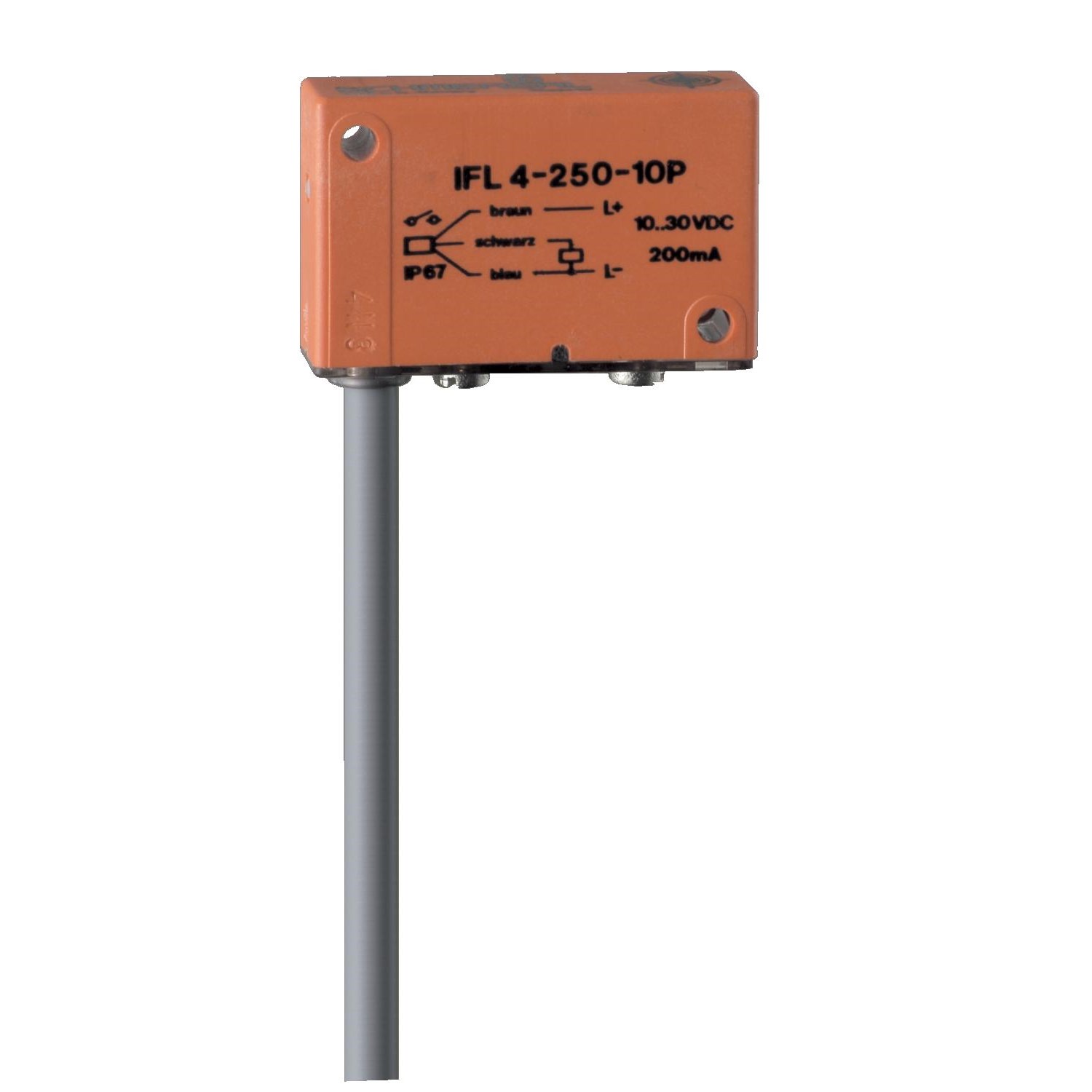

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precise positioning tasks in industrial environments. This DC 3-wire block proximity switch boasts a 2 mm sensing distance and comes with a durable 2-meter cable. Engineered with an NC (normally closed) opener switching element, it ensures reliable operation within a voltage range of 10-30VDC at 200 mA. The device operates at a high switching frequency of 1000 Hz and features a digital output rated at 1.2 V and 0.2 A, p-type. Constructed with a plastic enclosure, this proximity switch is built to withstand harsh conditions, offering inductive interference protection, polarity reversal protection, and surge protection to ensure longevity and consistent performance. It operates effectively across temperature ranges from -25°C to 70°C and is IP67 certified according to IEC/EN 60529 standards for dust and water resistance. Ideal for engineers seeking dependable position sensors, the Schmersal IFL Series enhances automation processes by providing accurate detection with minimal downtime due to its protective features.

Technical Specifications

Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
