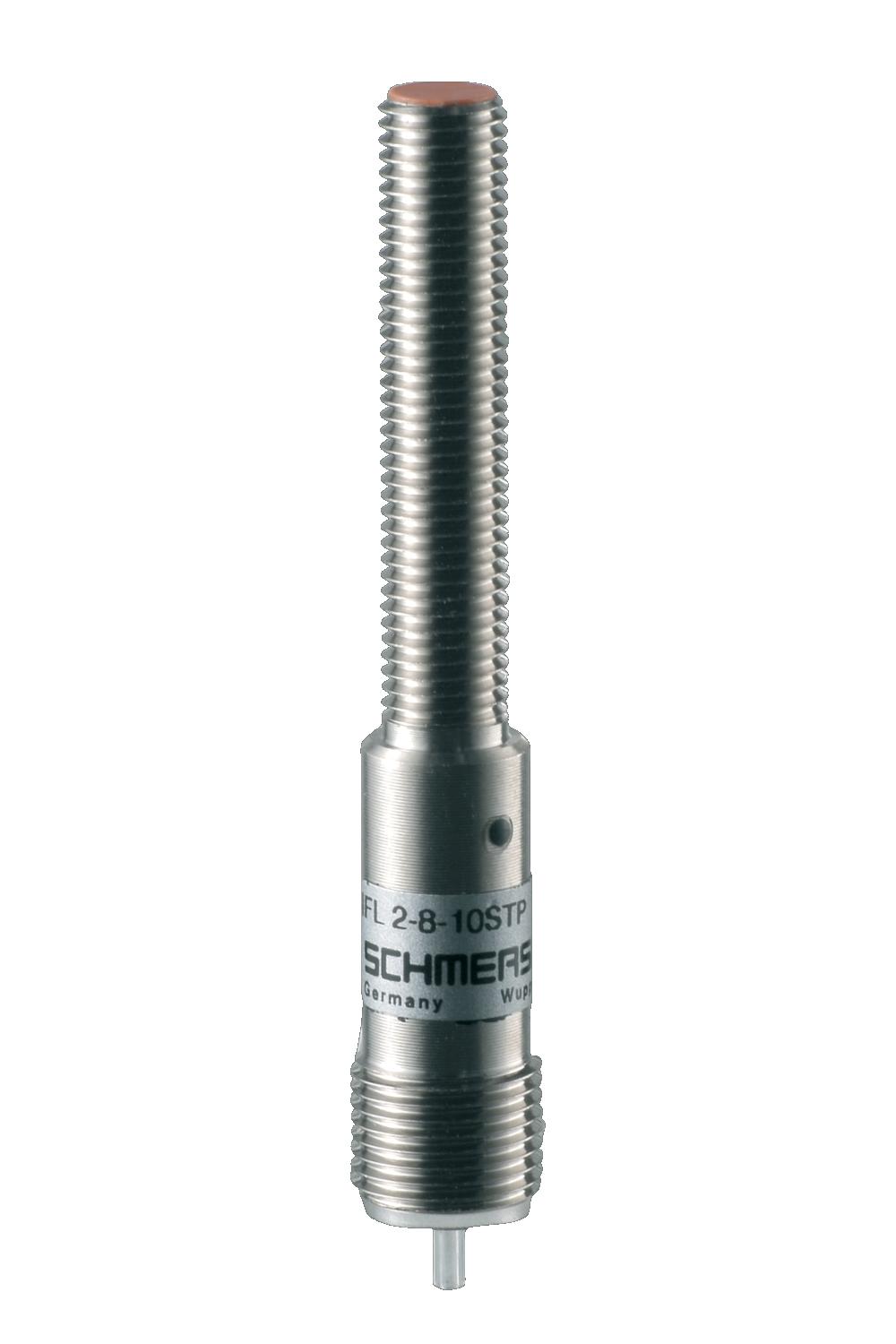

SCHMERSAL IFL2-8-10STP INDUCTIVE PROXIMITY SWITCH 101099669

Product Code: 101099669

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precise position sensing in industrial environments. This DC 2-wire cylindrical switch features an M12 connector and an M8 ISO thread, ensuring easy integration into your system. With a 2 mm switching distance and a normally open (NO) contact element, it operates within a voltage range of 10 to 30 VDC and can handle up to 200 mA. The device boasts a high switching frequency of 3000 Hz and offers a digital output of 1.2 V at 0.2 A, p-type. Engineered with inductive interference protection, polarity reversal protection, and surge protection, this proximity switch ensures reliable performance even in challenging conditions. It also includes status indication for real-time monitoring and is rated IP67 according to IEC/EN 60530 standards for dust and water resistance. Operating temperatures range from -25°C to 70°C, making it suitable for diverse applications. Trust the Schmersal brand for dependable position sensors that deliver precision and durability where it matters most.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
