Position Switches & Sensors


Product Code: 101108025

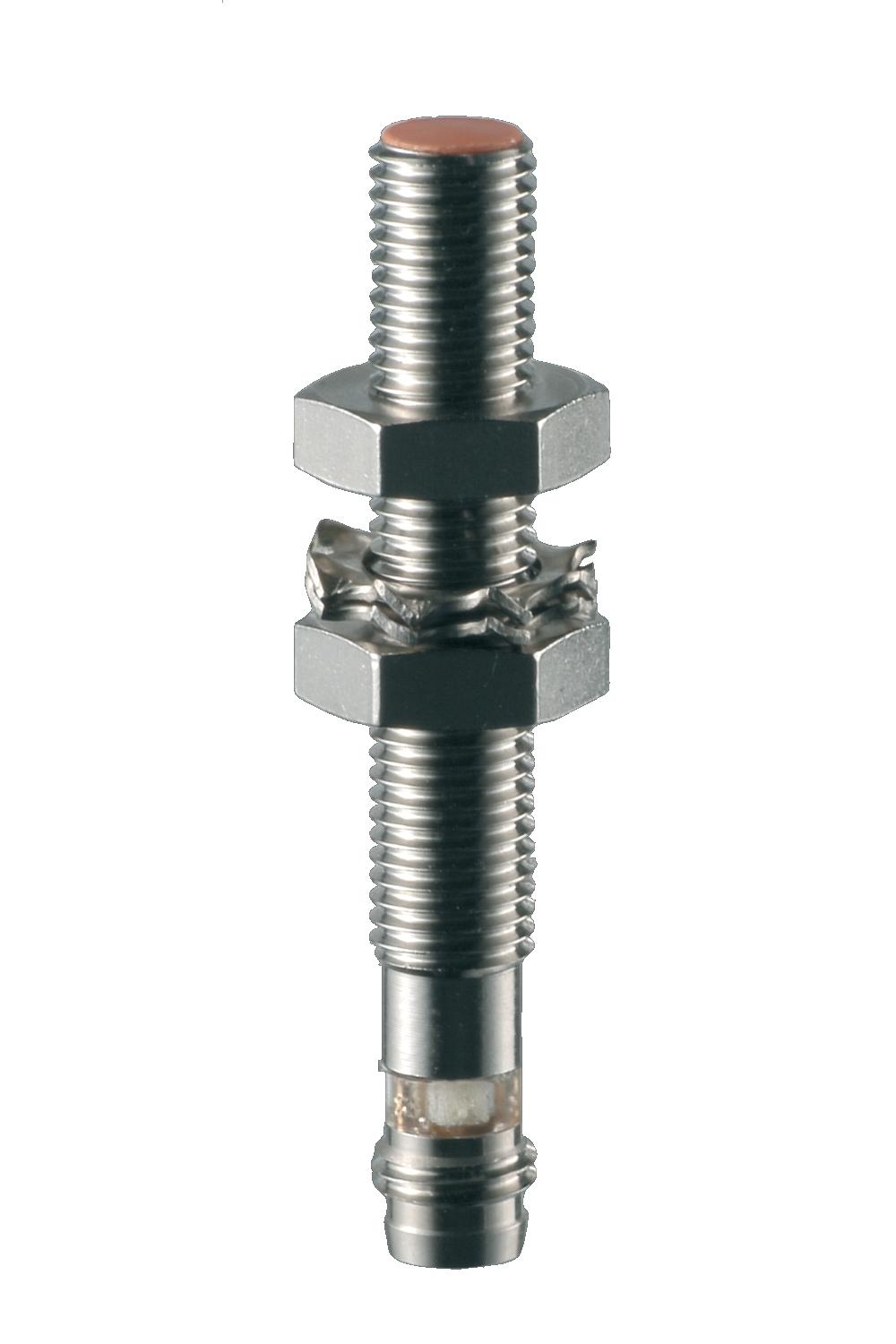

The Schmersal IFL Series inductive proximity switch is a high-precision position sensor designed for demanding industrial environments. This compact, DC 3-wire sensor features a miniature cylindrical body with an M8 ISO thread and an M8 connector, ensuring easy integration into tight spaces. It boasts a reliable 2 mm sensing distance and operates with a NO contact switching element. Constructed with a durable metal enclosure, this sensor can withstand harsh conditions, operating within a temperature range of -25°C to 70°C. It's engineered to function optimally with an operating voltage of 10-30VDC and supports up to 200 mA of current. The device's digital output is rated at 1.2 V and 0.2 A (p-type), complemented by a high switching frequency of 3000 Hz for responsive performance. Safety features include inductive interference protection, polarity reversal protection, surge protection, and status indication for operational assurance. Additionally, it meets IP67 standards according to IEC/EN 60532 for dust and water resistance, making it suitable for use in various industrial applications where precision and durability are paramount.

Technical Specifications

Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
