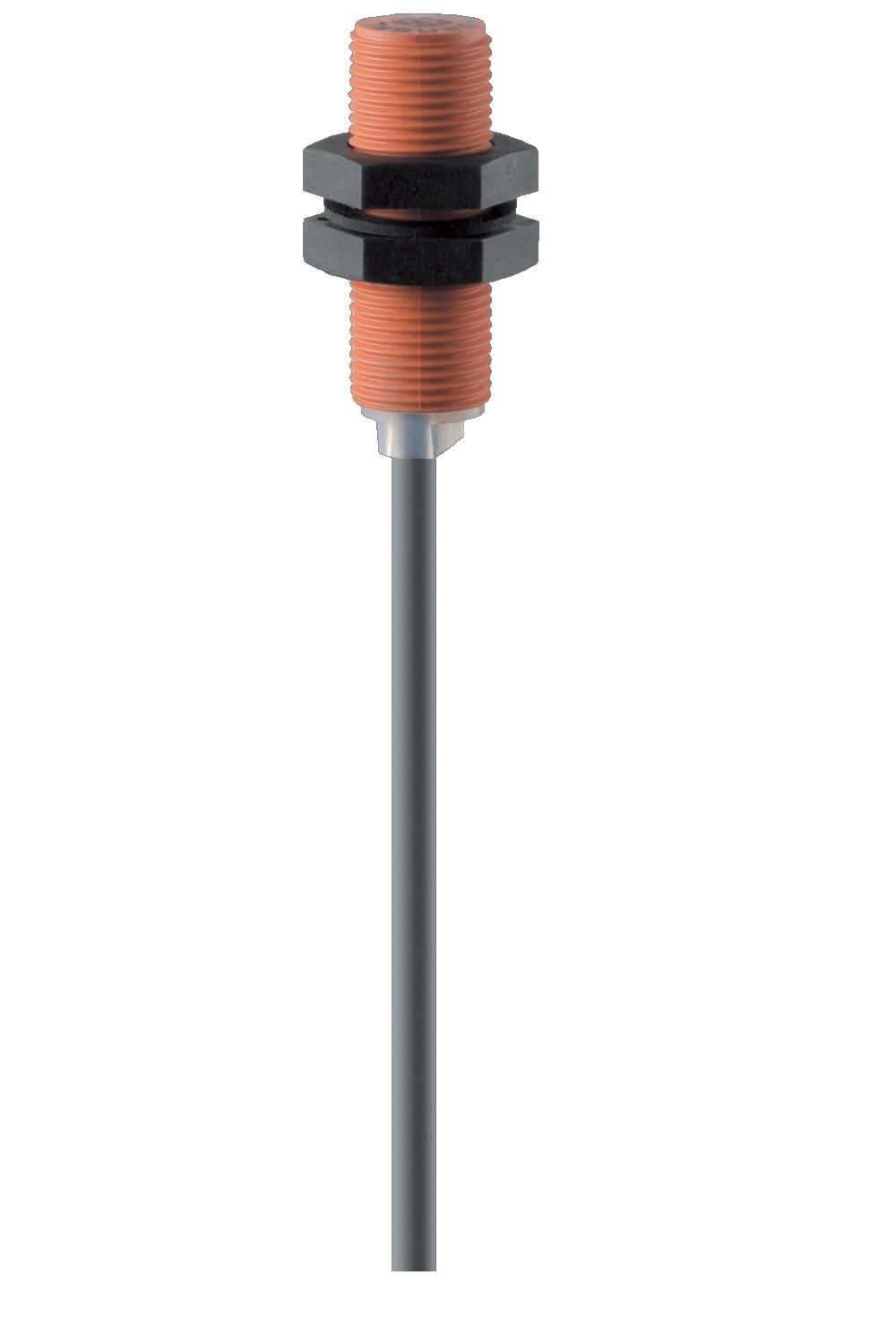

SCHMERSAL IFL 4-120M-01P INDUCTIVE PROXIMITY SWITCH 101097203

Product Code: 101097203

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision and durability. This DC 3-wire cylindrical proximity switch features a 4 mm sensing distance and is equipped with a 2-meter cable. It boasts an M12 ISO thread for secure installation and operates with a normally closed (NC) switching element. Constructed with a plastic enclosure, this switch ensures reliable operation within a voltage range of 10 to 30VDC at 200 mA. It offers rapid response with a switching frequency of up to 1,000 Hz and includes a digital output rated at 1.2 V and 0.2 A, p-type. Safety is paramount; hence it comes with inductive interference protection, polarity reversal protection, and surge protection to withstand challenging industrial environments. The device operates efficiently across temperatures ranging from -25°C to 70°C and meets IP67 standards according to EN 60529 for dust and water resistance. Ideal for various positioning applications, the Schmersal IFL proximity switch is an essential component for engineers requiring precise sensor technology in demanding conditions.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
