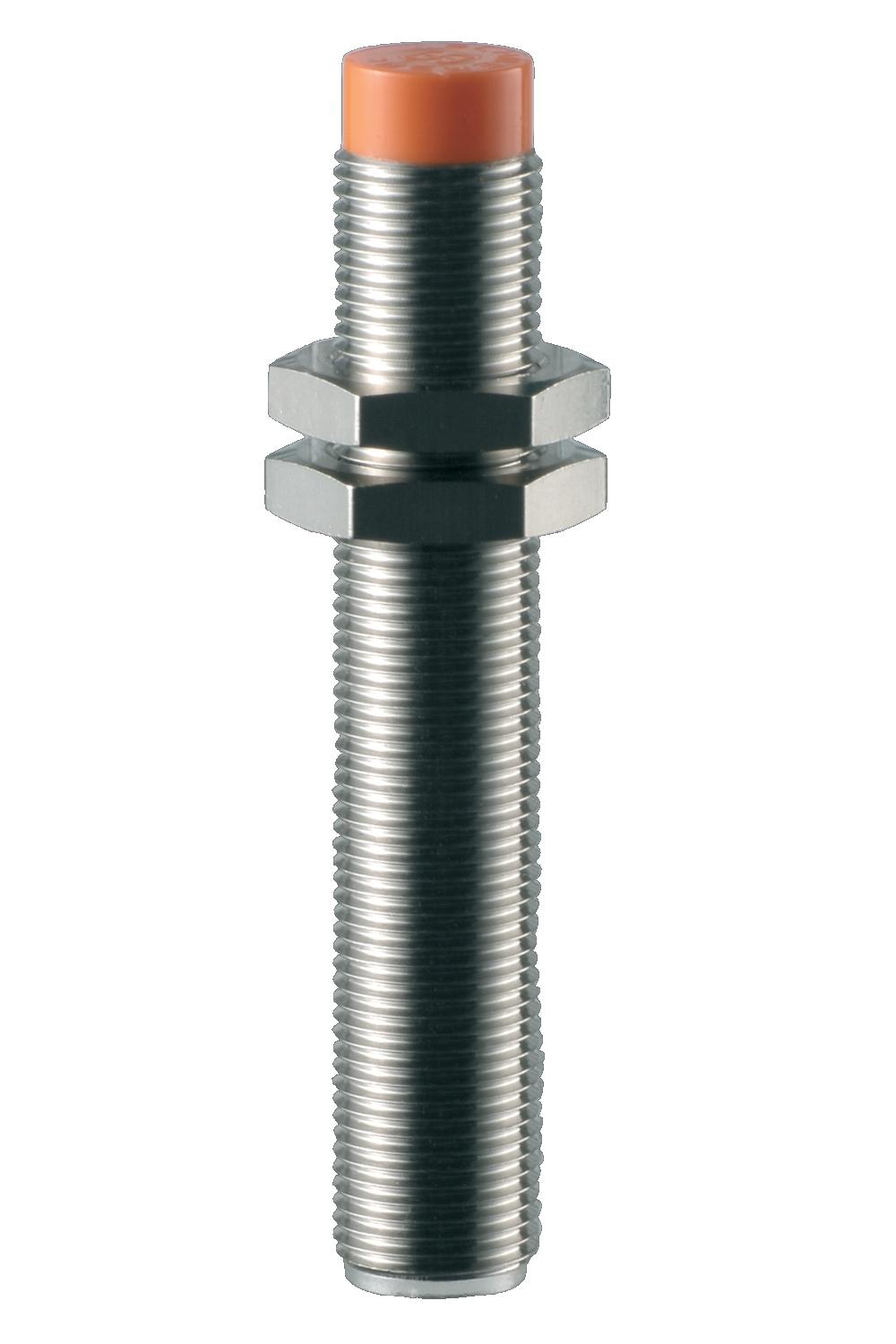

SCHMERSAL IFL 4-12L-10STP INDUCTIVE PROXIMITY SWITCH 101112834

Product Code: 101112834

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision positioning and detection in industrial environments. This DC 3-wire cylindrical sensor features a 4 mm sensing distance and is equipped with an M12 connector, conforming to ISO thread M12 standards. It operates on a voltage range of 10-30VDC with a current capacity of 200 mA and boasts a high switching frequency of 500 Hz. The switch's normally open contact (NO) output ensures reliable connectivity, while its brass enclosure provides durability. The digital output specifications include 1.2 V and 0.2 A, p-type, ensuring compatibility with various digital circuits. Engineered with inductive interference protection, polarity reversal protection, and surge protection, this proximity switch maintains performance integrity under challenging conditions. Operating within a temperature range of -25°C to 70°C and certified with an IP67 rating according to EN 60529, the Schmersal inductive proximity switch promises resilience against dust and water ingress. Ideal for engineers seeking dependable position sensors in automation or manufacturing settings, this proximity switch combines precision with rugged construction.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
