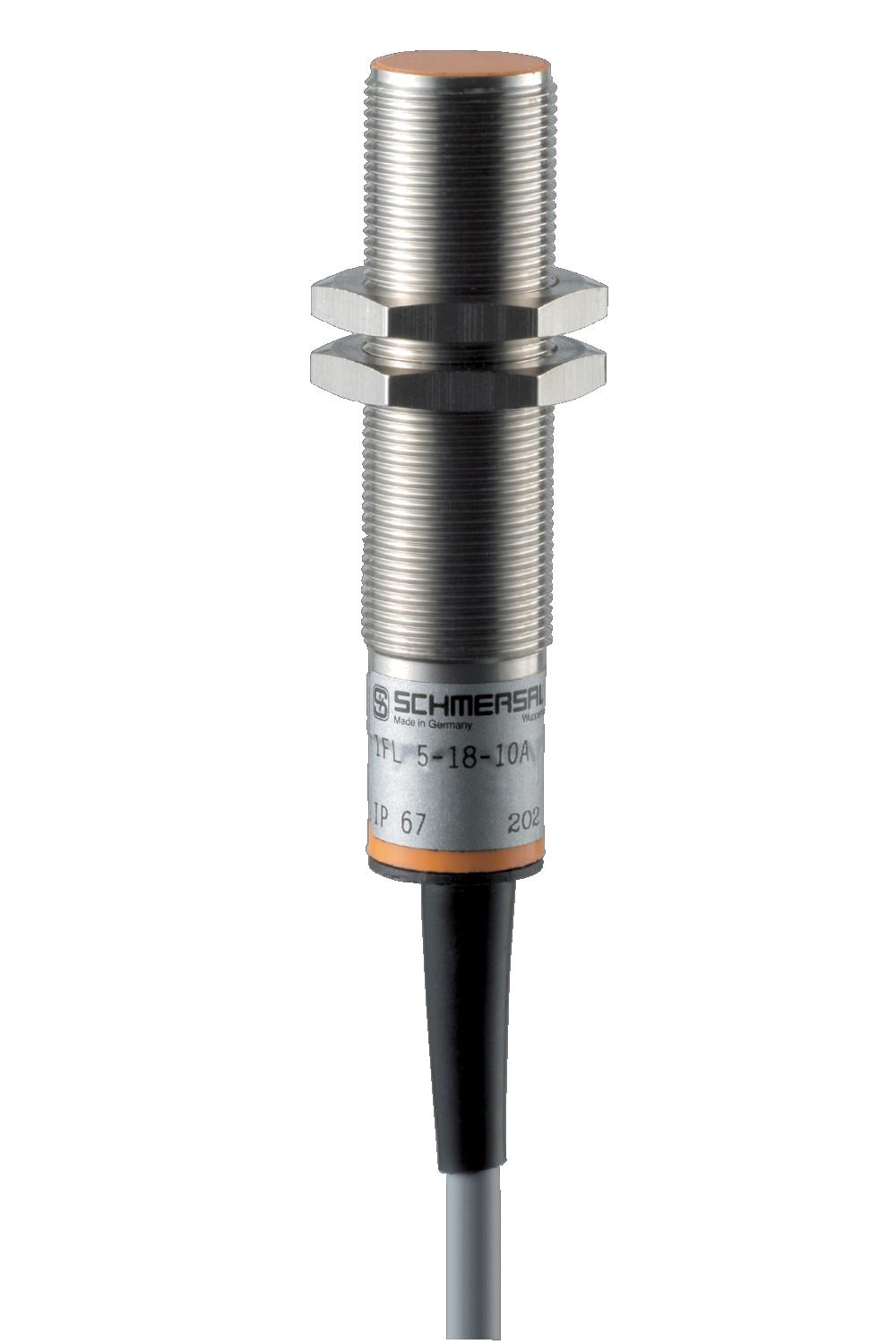

SCHMERSAL IFL 5-18-01A INDUCTIVE PROXIMITY SWITCH 101141569

Product Code: 101141569

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precise position sensing in demanding industrial environments. This AC/DC 2-wire proximity switch features a 5 mm switching distance and is equipped with an M18 ISO thread for easy installation. The device ensures reliable operation with a switching element configured as an opener (NC) and offers a broad operating voltage range of 15 to 250VAC or DC, suitable for various applications. Engineered for performance, it can handle up to 300 mA of current and operates at a switching frequency of 15 Hz. Its digital output is rated at 4 V and 0.3 A, utilizing a two-wire connection system. Safety is paramount; hence the switch includes inductive interference protection and protection against polarity reversal. The unit's status indication feature provides quick visual feedback, while its operating temperature range from -25°C to 70°C ensures functionality under extreme conditions. With an IP67 rating according to IEC/EN 60531 standards, this proximity switch promises durability and resistance to dust and water ingress. Ideal for engineers seeking reliable position sensors, the Schmersal IFL Series stands out in both performance and resilience.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 4
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.3
Rated Maximum Operational Voltage AC (V) 250
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 15
Rated Minimum Operational Voltage DC (V) 15
Rated Operational Current (A) 0.3
Series IFL
