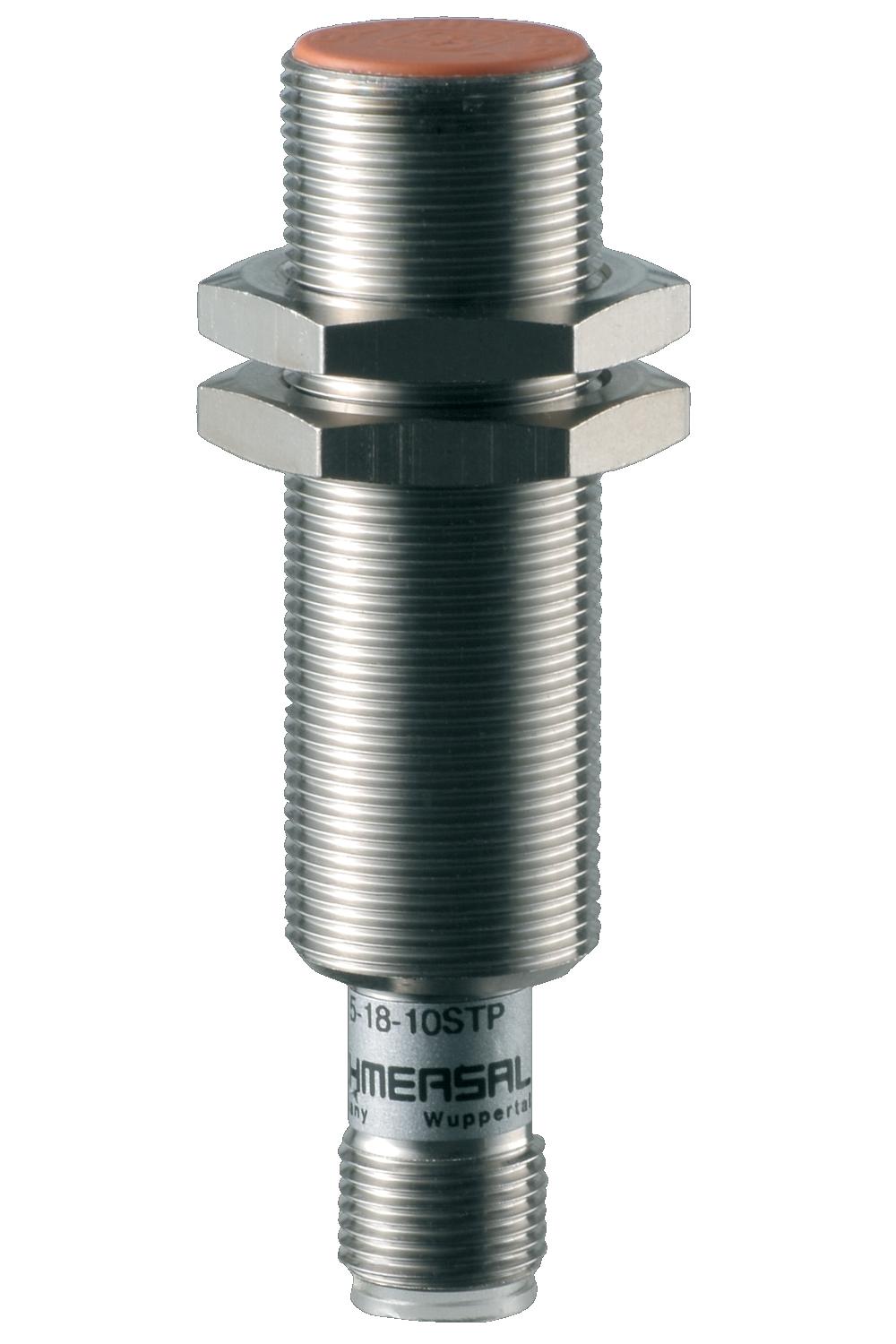

SCHMERSAL IFL5-18-01STP INDUCTIVE PROXIMITY SWITCH 101100697

Product Code: 101100697

Optimize your industrial applications with the Schmersal IFL Series Inductive Proximity Switch. This robust sensor features a 5 mm switching distance and is designed for DC 3-wire systems, ensuring compatibility with a wide range of equipment. The M12 connector and M18 ISO thread facilitate easy installation in cylinder-threaded environments. Engineered to operate within a voltage range of 10-30VDC and handle up to 200 mA, this metal-encased switch guarantees durability and reliability. The opener (NC) switching element ensures normally closed operations, while the digital output is rated at 1.2 V and 0.2 A, p-type, enhancing signal integrity even in demanding conditions. With a high switching frequency of 400 Hz, it's built for responsive performance. Safety features include inductive interference protection, polarity reversal protection, and surge protection to safeguard your systems against electrical anomalies. This proximity switch operates efficiently across temperatures ranging from -25°C to 70°C and boasts an IP67 rating according to IEC/EN 60531 standards for dust and water resistance. Whether you're dealing with position sensing or presence detection tasks in harsh environments, trust the Schmersal IFL Series for consistent operation and peace of mind.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
