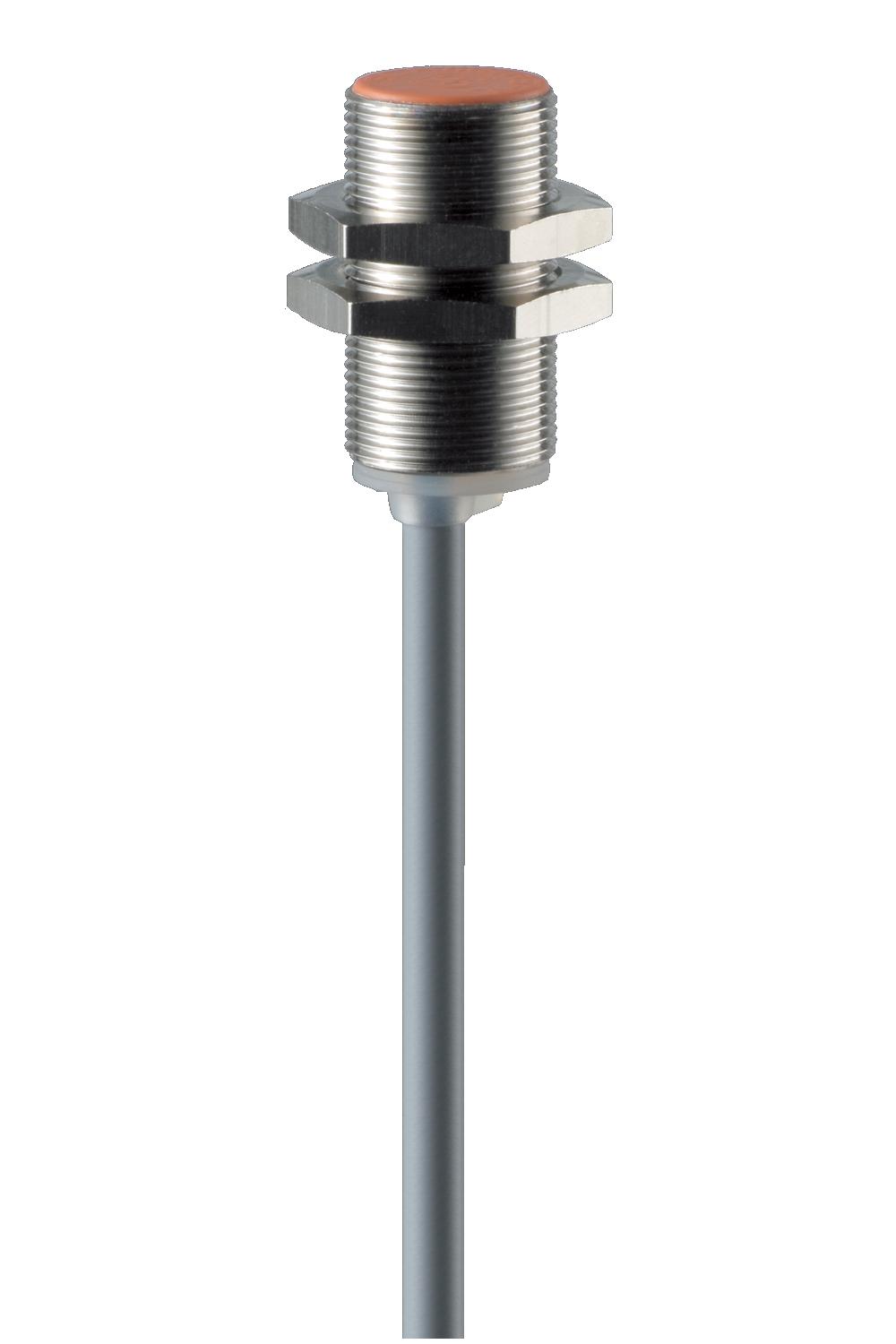

SCHMERSAL IFL 5-18M-10NINDUCTIVE PROXIMITY SWITCH 101083093

Product Code: 101083093

Technical Specifications

Housing Material Brass
Installation Conditions Flush
Enclosure Coating Material Nickel-plated
Minimum Ambient Temperature (°C) -25
Brand SCHMERSAL
Maximum Ambient Temperature (°C) 70
Wire Cross Section (mm²) 0.34mm² (Diameter)
Current for Voltage Drop (A) 0.2
Maximum Operational Voltage (V) 30
Maximum Voltage Drop (V) 1.2
Minimum Operational Voltage (V) 10
No. of Cables 3
Rated Operational Current (mA) 200
Switching Element NO Contact
Switching Frequency (Hz) 700
Termination Cable
Cable Length (m) 2
Sensor Length (mm) 36
Degree of Protection IP67
Standards and Approvals EN IEC 60947-5-2
