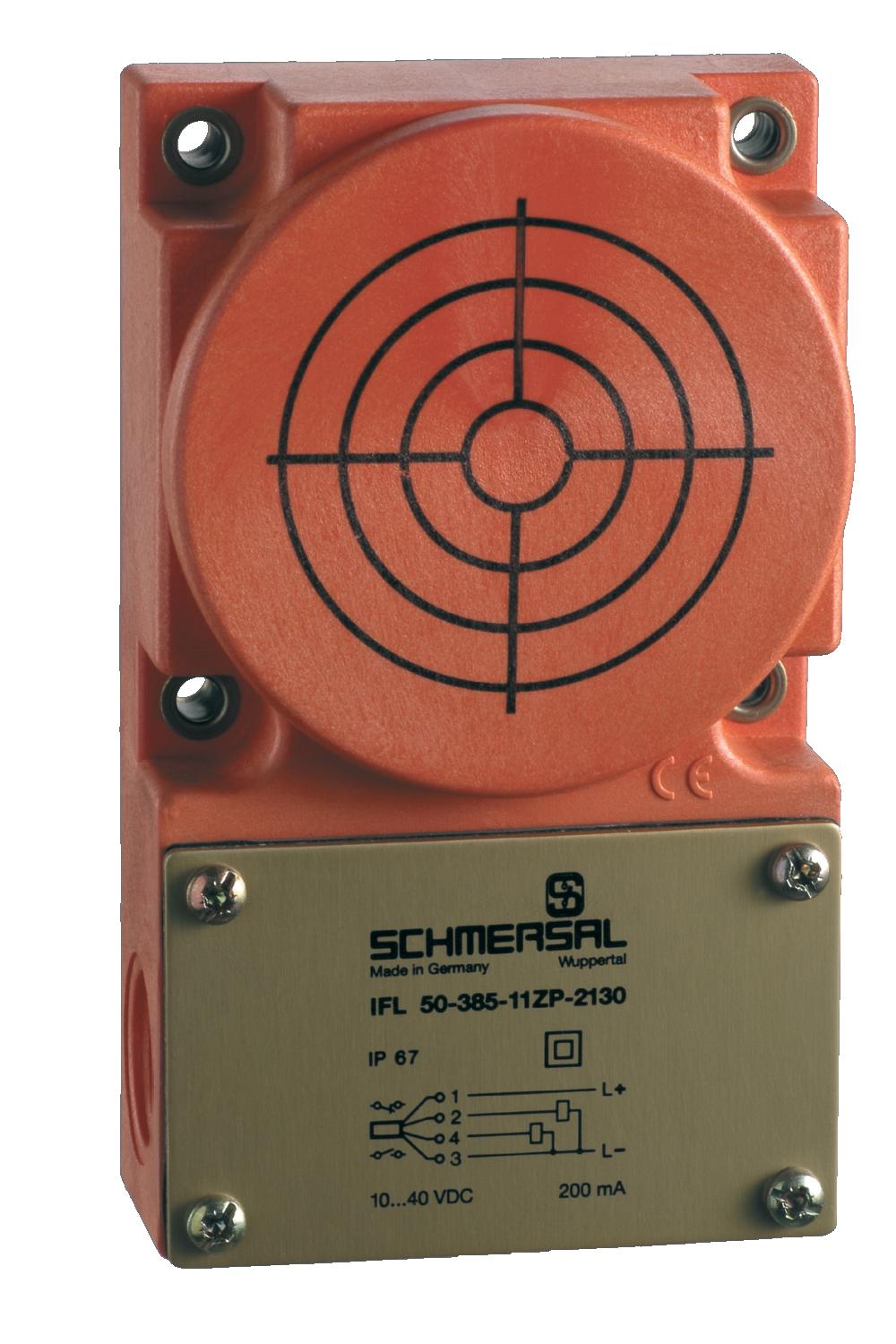

SCHMERSAL IFL50-385-11P-2130 INDUCTIVE PROXIMITY SWITCH 101116136

Product Code: 101116136

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust DC 4-wire block sensor designed for precise positioning tasks. With a notable 50 mm sensing range and reliable screw connection, this switch is engineered to facilitate both normally open (NO) and normally closed (NC) contacts. The durable plastic enclosure ensures longevity, while the operating voltage spans from 10 to 40VDC with a current capacity of 400 mA. This sensor boasts a switching frequency of 50 Hz and offers a digital output of 1.5 V at 0.4 A, p-type. Enhanced with inductive interference protection and safeguarded against polarity reversal, it operates effectively within a wide temperature range from -25°C to +130°C. Rated IP67 according to EN 60529 standards, this proximity switch promises resilience in challenging environments. Ideal for engineers seeking reliable position sensors in industrial applications.

Technical Specifications

Brand SCHMERSAL
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 High
Design of Control Element Short-circuit proof, p-type
eCl@ss Number, Version 11.0 27-37-12-13
eCl@ss Number, Version 9.0 27-37-12-13
ETIM 6.0 EC000222
ETIM 7.0 EC000223
Gross Weight (g) 190
Housing Construction Form Norm construction design
Installation Conditions Arbitrarily
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 16 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 1.5
Maximum Switching Capacity (W) 0.24
Maximum Temperature (°C) 70
Minimum Actuating Speed (mm/min) 10
Minimum Ambient Temperature (°C) -25
Minimum Positive Break Force (N) 10
Minimum Temperature (°C) -25
Net Weight (g) 3100
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Nominal Output Current (A) 0.4
Positive Break Travel (mm) 8
Protection Class of Operating Resource 3
Rated Maximum Operational Voltage DC (V) 40
Rated Minimum Operational Voltage DC (V) 10
Rated Operating Current (mA) 50
Rated Short-circuit Current (A) 400
Recommended Actuator AZM400-B1
Recommended Safety Switchgear SRB-E-301ST | SRB-E-201LC
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 691
Sensor Length (mm) 60.5
Switching Element Normally open contact (NO)
Switching Principle Slow action
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 0.34 mm
Working Principle Magnetic drive
Actuator Type Magnet
Cable Length (m) 2
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
Height (mm) 26
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.34
Minimum Mechanical Life 30000000 Operations
Mounting Type Threaded
Overvoltage Category 3
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Series IFL
Standards EN ISO 13850
Storage Temperature (°C) -25 to 70
Terminal Type Cable
Width (mm) 67.5
