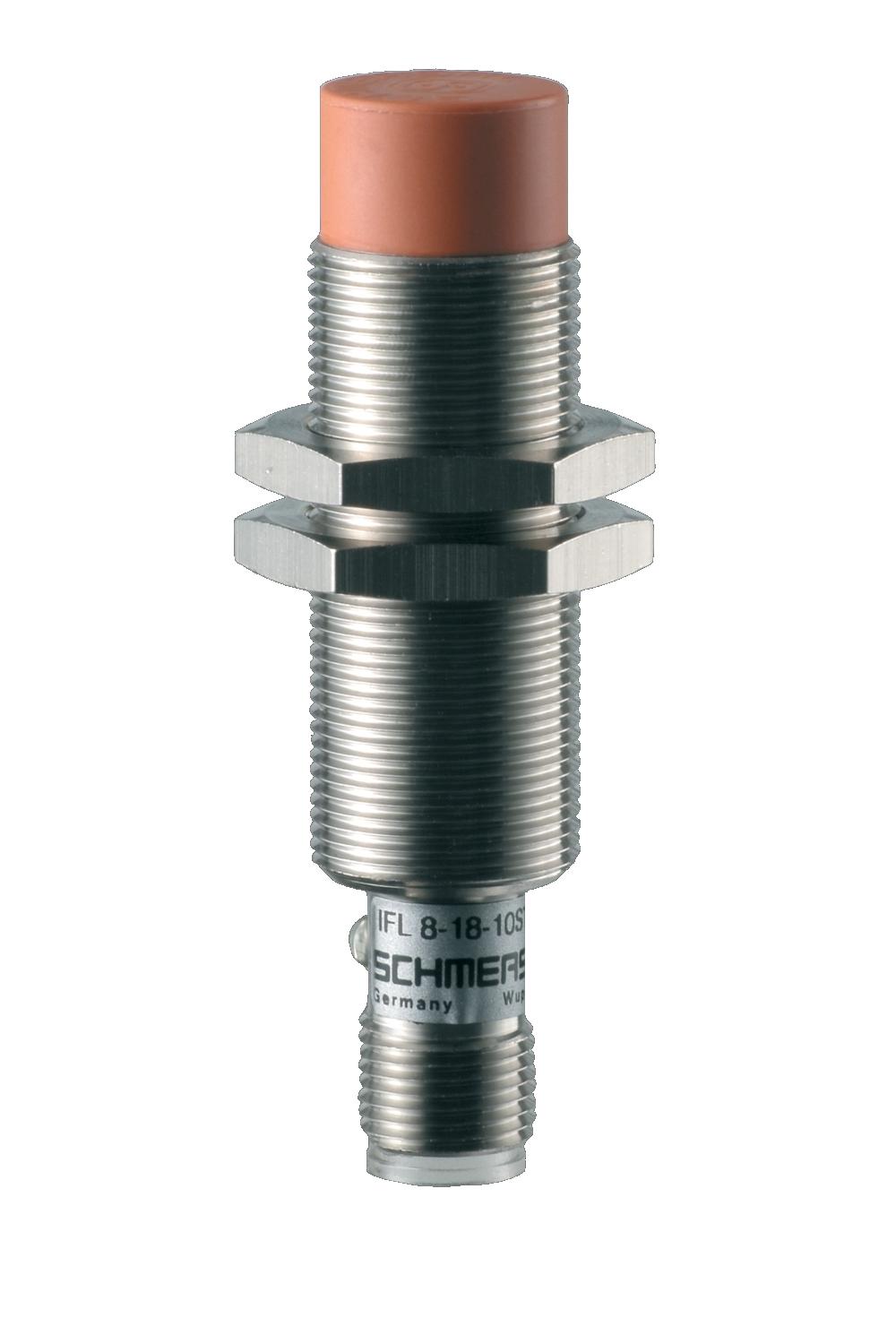

SCHMERSAL IFL 8-18-01STP INDUCTIVE PROXIMITY SWITCH 101123667

Product Code: 101123667

  • Inductive proximity switch with a long design DC 3-wire connection system Cylinder shape with ISO thread M18 Sensing distance of 8 mm Equipped with a connector cable Normally open (NO) contact switching element Metal enclosure material for durability Operating voltage range of 10 to 30VDC Maximum output current of 200 mA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type Threaded
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series IFL
Maximum Nominal Output Voltage DC (V) 1.2
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Degree of Protection IP67

Description

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precise positioning tasks in industrial environments. This DC 3-wire cylindrical switch boasts an 8 mm sensing distance and is equipped with an M12 connector and an M18 ISO thread for easy installation. It operates on a voltage range of 10 to 30VDC with a current capacity of 200 mA and ensures rapid response with a switching frequency of 400 Hz. The switch features a normally closed (NC) opener as its switching element, providing reliable operation. Its digital output specifications include 1.2 V and 0.2 A, p-type, ensuring compatibility with various control systems. Engineered with inductive interference protection, polarity reversal protection, and surge protection, it maintains performance stability under electrical disturbances. With an operating temperature range from -25°C to +70°C and an IP67 rating according to IEC/EN 60529 standards, this proximity switch promises durability in harsh conditions. The status indication feature allows for at-a-glance monitoring of the device's operational state. Ideal for engineers seeking dependable position sensors, the Schmersal IFL Series offers precision and resilience where it counts.
