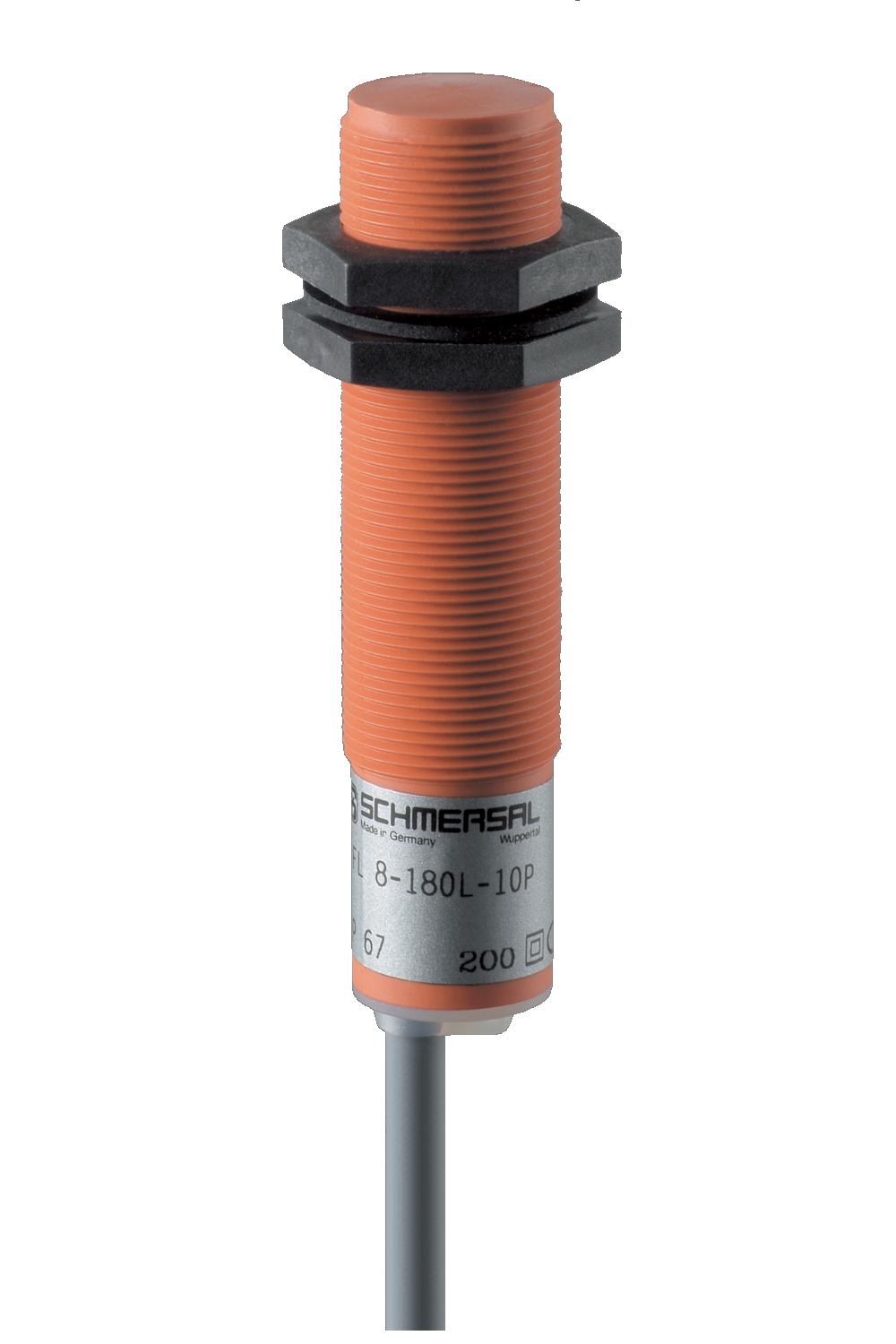

SCHMERSAL IFL8-180L-10P INDUCTIVE PROXIMITY SWITCH 101124142

Product Code: 101124142

Explore the Schmersal IFL Series inductive proximity switch, a robust sensor designed for precision positioning and detection tasks. This DC 3-wire, long-bodied sensor features an M18 ISO thread cylinder design, ensuring easy integration into various industrial setups. With a reliable 8 mm sensing distance and NO contact switching element, it offers consistent performance in demanding environments. Constructed with a durable thermoplastic enclosure, this proximity switch operates within a voltage range of 10 to 30VDC and can handle up to 200 mA of current. It boasts a high switching frequency of 400 Hz and provides a digital output of 1.2 V at 0.2 A, p-type. Engineers will appreciate the built-in inductive interference protection, polarity reversal safeguards, and surge protection that enhance device longevity. The unit is double-insulated for safety and comes equipped with status indication for real-time monitoring. It operates effectively across temperatures ranging from -25°C to 70°C and is rated IP67 according to IEC/EN 60532 standards for water and dust resistance. Whether automating factory processes or upgrading existing systems, this inductive proximity switch delivers reliability where precision is paramount.

Technical Specifications

Brand SCHMERSAL
back2archive 1
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
