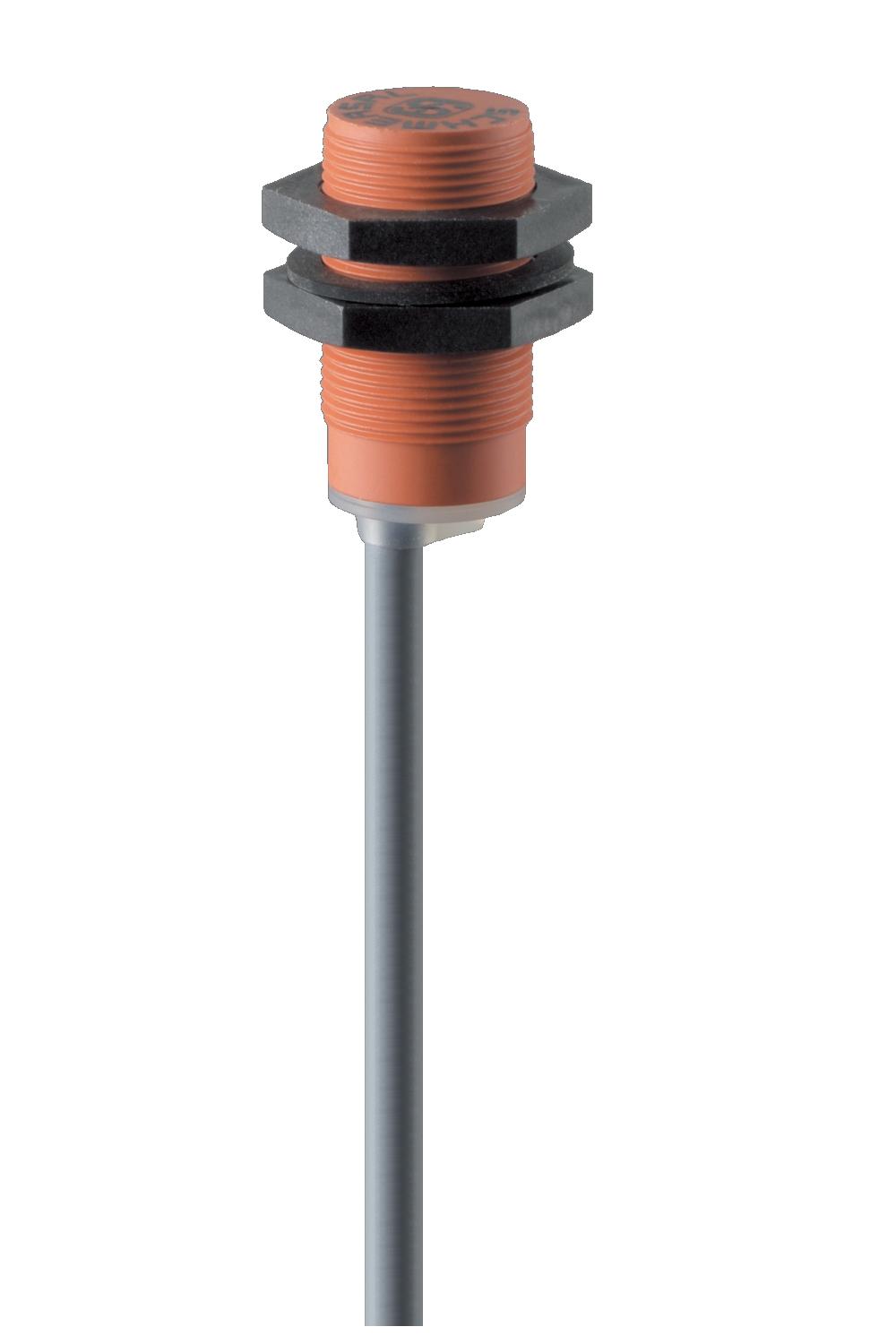

SCHMERSAL IFL 8-180M-10PINDUCTIVE PROXIMITY SWITCH 101084078

Product Code: 101084078

Technical Specifications

Current for Voltage Drop (A) 0.2
Installation Conditions Not Flush
Maximum Voltage Drop (V) 1.2
Minimum Ambient Temperature (°C) -25
Minimum Operational Voltage (V) 10
No. of Cables 3
Rated Operational Current (mA) 200
Sensor Length (mm) 36
Switching Element NO Contact
Switching Frequency (Hz) 400
Termination Cable
Brand SCHMERSAL
Cable Length (m) 2
Degree of Protection IP67
Housing Material Plastic
Maximum Ambient Temperature (°C) 70
Maximum Operational Voltage (V) 30
Standards and Approvals EN IEC 60947-5-2
Wire Cross Section (mm²) 0.34mm² (Diameter)
