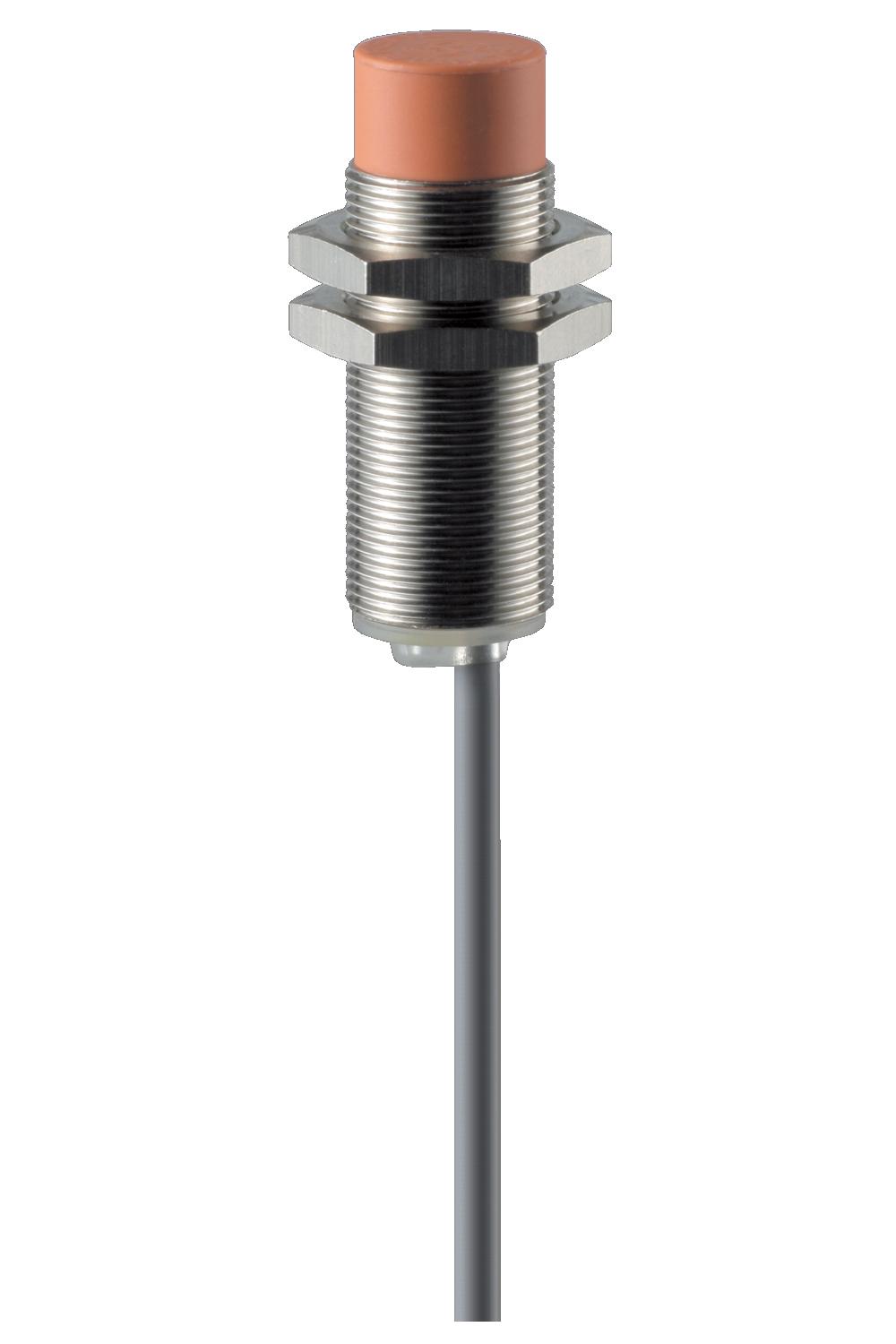

SCHMERSAL IFL 8-18M-10P INDUCTIVE PROXIMITY SWITCH 101113260

Product Code: 101113260

The Schmersal IFL Series inductive proximity switch is a high-precision position sensor designed for demanding industrial environments. This DC 3-wire, metal-encased sensor features a miniature body with an M18 ISO thread cylinder design, ensuring easy integration into various applications. It offers a reliable detection range of 8 mm and includes a connector cable for straightforward installation. Engineered to operate within a voltage range of 10 to 30VDC and handle up to 200 mA, this sensor boasts a NO contact switching element and can achieve switching frequencies up to 600 Hz. Its digital output is rated at 1.3 V and 0.2 A, p-type, ensuring compatibility with most control systems. Safety is paramount with built-in inductive interference protection, polarity reversal protection, and surge protection. The device operates effectively across temperatures from -25°C to 70°C and meets the IP67 rating according to IEC/EN 60531 standards for dust and water resistance. Ideal for precise positioning tasks, the Schmersal IFL Series proximity switch is an essential component for engineers seeking robust performance in automation and control systems.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series IFL
Mounting Type Threaded
Maximum Nominal Output Voltage DC (V) 1.3
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Degree of Protection IP67
