Brand	SCHMERSAL
Current for Voltage Drop (A)	0.4
Degree of Protection	IP65
Enclosure Coating Material	Nickel-plated
Housing Material	Brass
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	3 x 1.5
Maximum Operational Voltage (V)	60
Maximum Voltage Drop (V)	2
Minimum Ambient Temperature (°C)	-5
Minimum Operational Voltage (V)	10
No. of Cables	3
Rated Operational Current (mA)	400
Sensor Height (mm)	46
Sensor Length (mm)	118
Sensor Width (mm)	46
Standards and Approvals	EN IEC 60947-5-2
Switching Element	NO Contact or NC Contact
Switching Frequency (Hz)	100
Termination	Screw Connection

Presence Sensing Safety Devices

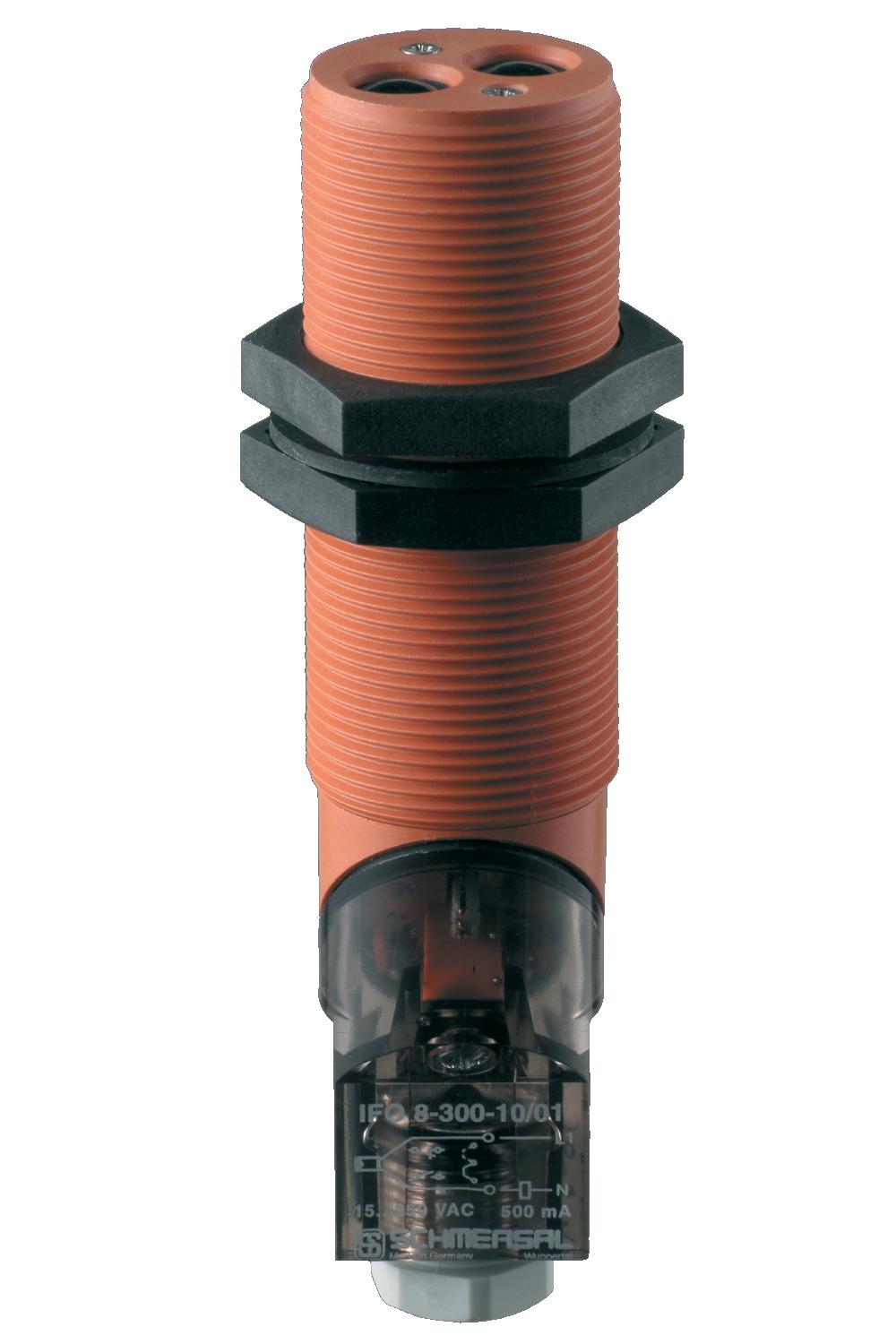

SCHMERSAL IFOD 10-30-10/01POPTICAL SENSOR 103038716
