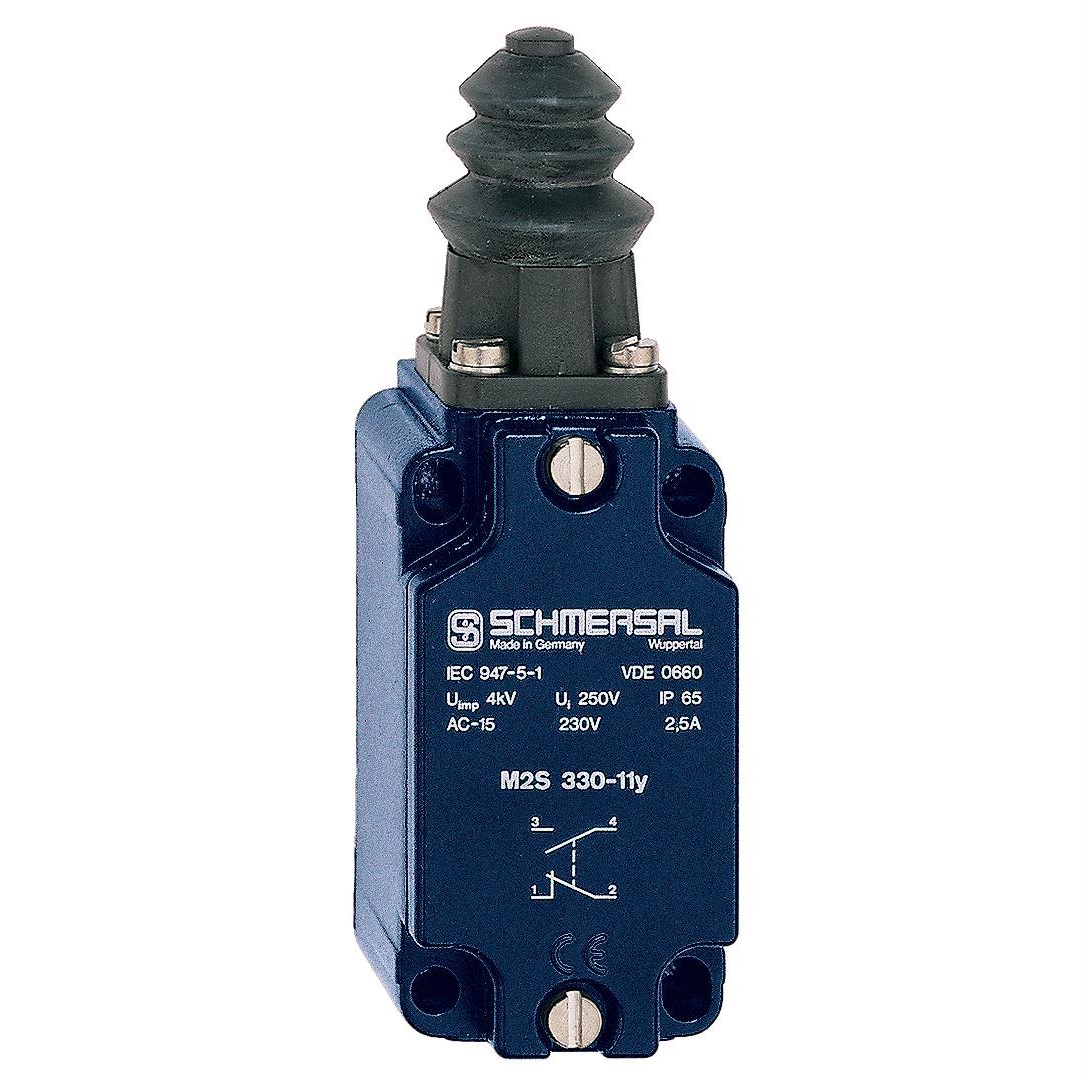

Schmersal 131149639 Position Switch Plunger Die Cast Light Alloy Painted Silver Contact

Product Code: 131149639

  • Durable die-cast light alloy housing
  • IP65 protection for harsh environments
  • Mechanical plunger actuator
  • Rated for 230 VAC, 2.5 A
  • Complies with ENISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Standards EN ISO 13849-1
EAN 8905240000000
eCl@ss Number, Version 9.0 27-27-24-03
ETIM 7.0 EC000030
ETIM 6.0 EC002593
eCl@ss Number, Version 11.0 27-27-24-03
Product Type Position Switch
Brand SCHMERSAL
Actuating Speed 1 mm/min
Actuator Type Plunger
Cable Cross Section 13 AWG
Contact Material Silver
Degree of Protection IP65
Housing Material Die Cast Light Alloy, Painted
Rated Current 2.5 A
Rated Voltage 230 VAC
Standards and Approvals ENISO 13849-1
Switching Type Mechanical
Weight 225 g
