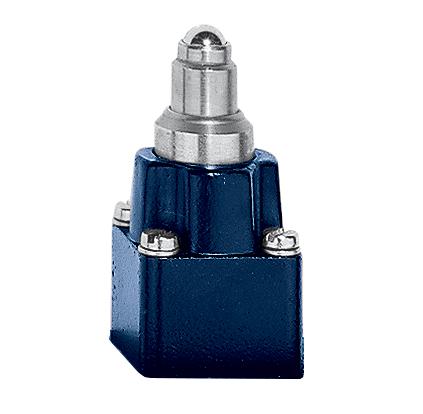

SCHMERSAL M2S 461-22YMEDIUM-DUTY POSITION SWITCH 101058605

Product Code: 101058605

Technical Specifications

Brand SCHMERSAL
Actuating Angle 20°
Actuating Element Plunger
Contact Material Silver
Contact Opening (mm) 2 x 2.5
Degree of Protection IP65
Enclosure Coating Material Painted
Housing Material Grey Cast Iron, Galvanised
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 90
Maximum Bounce Duration (ms) 5
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 5000000 Operations
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 2
Plunger Diameter (mm) 10
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Operational Current AC-15 (A) 4
Rated Operational Voltage AC-15 (V) 230V AC
Sensor Height (mm) 217
Sensor Length (mm) 64
Sensor Width (mm) 118
Standards and Approvals EN IEC 60947-5-1
Switching Element NO Contact / NC Contact
Switching Principle Snap Action
Switchover Time (ms) 35ms (Maximum)
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Utilisation Category AC-15
