Specifications

Rated Insulation Voltage (V)	250
Rated Impulse Withstand Voltage (kV)	4
Utilisation Category	AC-15
Thermal Test Current (A)	4
Minimum Ambient Temperature (°C)	-30
Wire Cross Section (mm²)	0.75mm² (Diameter)
Switching Principle	Snap Action with Self-cleaning Contact
Switching Frequency	30000/h
No. of Normally-open Contacts	1
No. of Normally-closed Contacts	1
Minimum Mechanical Life	3000000 Operations
Minimum Actuating Speed (mm/min)	1
Maximum Fuse Rating	4 A gG D-fuse
Rated Operational Voltage AC-15 (V)	230V AC
Maximum Ambient Temperature (°C)	80
Rated Operational Current AC-15 (A)	2

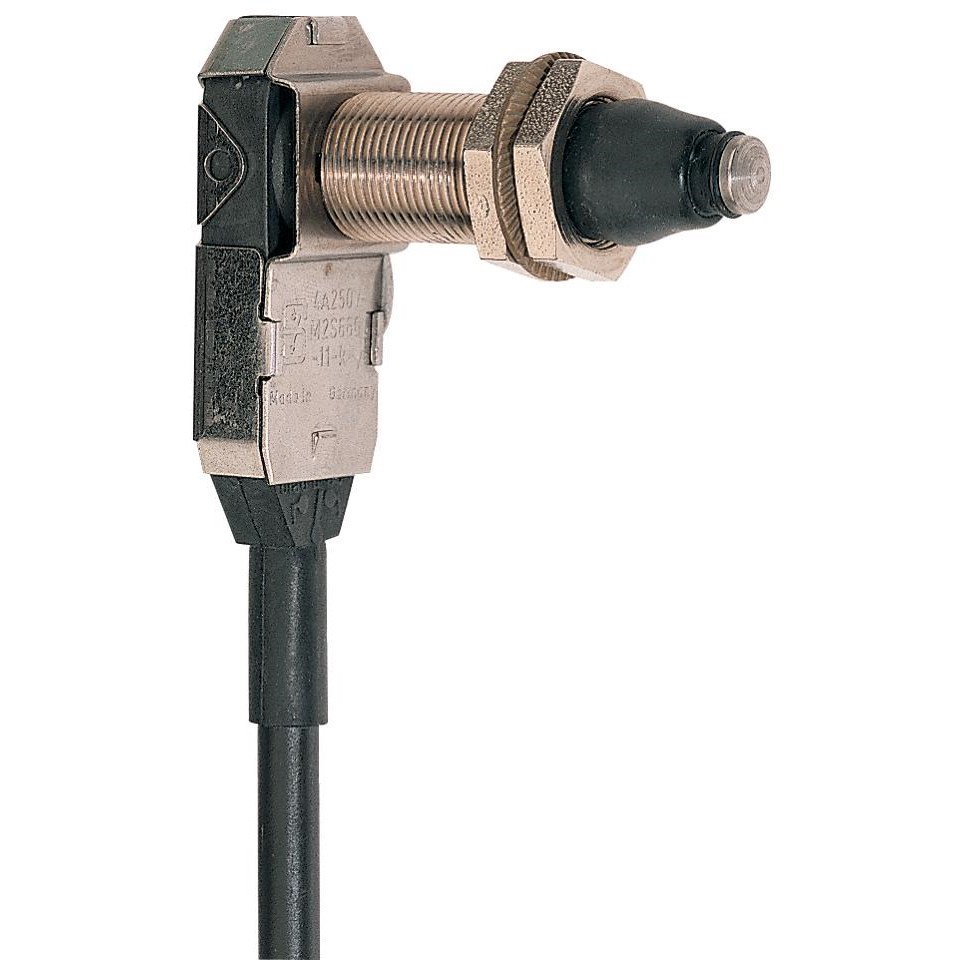

Product Type	Micro Switch
Brand	SCHMERSAL
Actuating Speed	1 mm/min
Cable Cross Section	0.75 sq-mm
Contact Material	Gold Plated Silver (AgNi 15 + Au 0.3µm)
Degree of Protection	IP65
Fuse Rating	4 A gG D-Fuse
Mechanical Life	3000000 Operations
Rated Current	2 A
Rated Voltage	230 VAC
Standards and Approvals	ENIEC 60947-5-1
Switching Type	Snap Action
