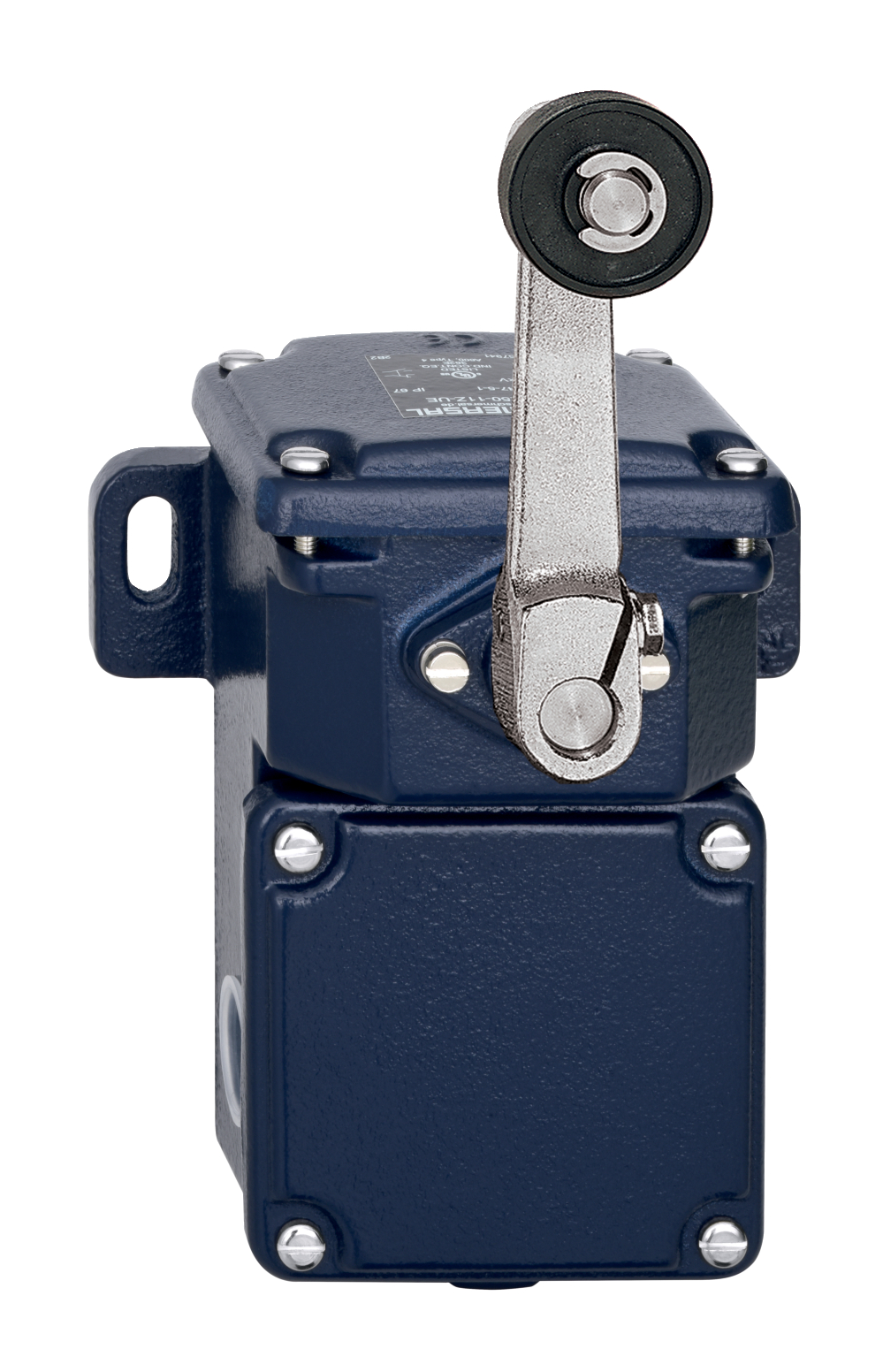

SCHMERSAL MD 250-22Z MD 250-22Z

Product Code: 101058108

Technical Specifications

Brand SCHMERSAL
back2archive 1
Ambient Temperature Range (°C) -20 to +60
Cable Cross Section (mm²) 2.5 Max.
Contact Material Gold-plated silver
Conventional Thermal Current - Ithe (A) 16
Degree of Protection IP65/IP66/IP67
Design of Control Element 1NO, 1NC
Material Housing-Grey cast iron, galvanised
Rated Impulse Withstand Voltage (kV) 6
Rated Short-Circuit Capacity - Icn (kA) 1 to EN 60947-5-1
Reference No. MD 250-22Z
Standards EN IEC 60947-5-1
Switching Principle Snap action
Termination 2 x M25 x 1.5
Utilisation Category AC-15: 230 V / 2.5 A
