Specifications

Ambient Temperature Range (°C)	-30 °C to +90 °C
Rated Impulse Withstand Voltage (kV)	6
Maximum Switching Voltage AC (V)	250
Thermal Test Current (A)	16
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	63
Actuating Angle	30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Switching Principle	Slow Action
Sensor Width (mm)	106
Sensor Height (mm)	192
Minimum Mechanical Life	10,000,000 Operations
Minimum Actuating Speed (mm/min)	1
Switching Element	NO Contact, NC Contact
Roller Material	Plastic
Contact Opening (mm)	2 x 2.5
Enclosure Material	Grey Cast Iron, Galvanised
Maximum Switching Current (A)	4
Maximum Actuating Speed (m/s)	3

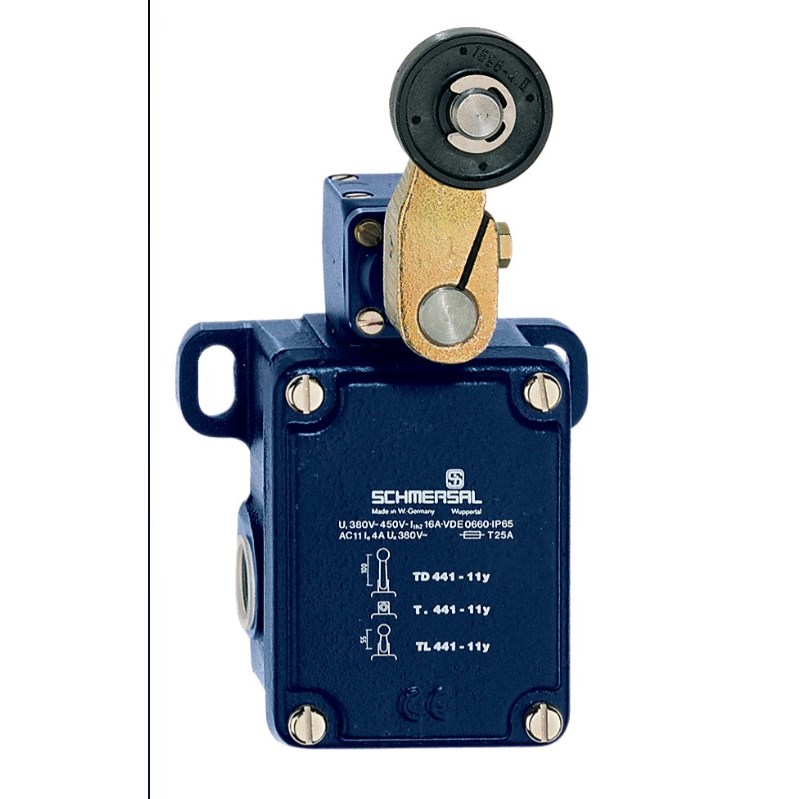

Product Type	Medium-Duty Position Switch
Brand	SCHMERSAL
Actuating Speed	1 mm/min
Actuator Type	Roller Lever
Contact Configuration	1NO+1NC
Contact Material	Gold Plated Silver
Contact Opening	(2) 2.5 mm
Degree of Protection	IP65
Housing Material	Grey Cast Iron, Galvanised
Mechanical Life	10000000 Operations
Rated Current	16 A
Switching Type	Slow Action
