Specifications

Maximum Cable Cross Section (mm²)	2.5
Rated Insulation Voltage (V)	250
Rated Impulse Withstand Voltage (kV)	4
Utilisation Category	AC-15
Maximum Ambient Temperature (°C)	90
Minimum Cable Cross Section (mm²)	1.5
Maximum Actuating Speed (m/s)	0.5
Rated Operational Current AC-15 (A)	4
Thermal Test Current (A)	16
Minimum Ambient Temperature (°C)	-30
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	63
Actuating Angle	30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Switching Principle	Snap Action
Switchover Time (ms)	35ms (Maximum)
No. of Normally-open Contacts	1
No. of Normally-closed Contacts	1
Sensor Width (mm)	106
Sensor Height (mm)	145
Minimum Mechanical Life	5000000 Operations
Castor Diameter (mm)	25
Minimum Actuating Speed (mm/min)	1
Maximum Fuse Rating	16 A gG D-fuse
Castor Width (mm)	6.5
Switching Element	NO Contact, NC Contact
Maximum Bounce Duration (ms)	5
Contact Opening (mm)	2 x 2.5
Rated Operational Voltage AC-15 (V)	250V AC
Castor Material	Plastic

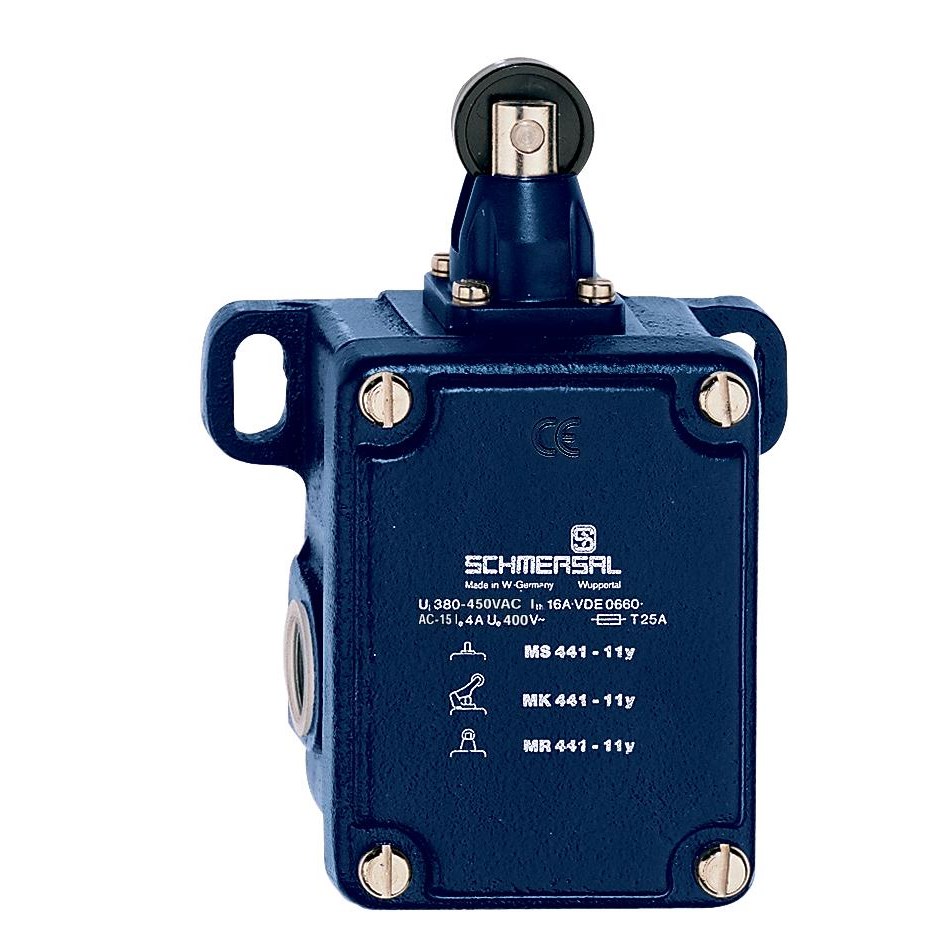

Product Type	Medium-Duty Position Switch
Brand	SCHMERSAL
Actuating Element	Roller Plunger
Actuating Speed	1 mm/min
Actuator Type	Roller Plunger
Cable Cross Section	1.5 sq-mm
Contact Configuration	1NO+1NC
Contact Material	Silver
Contact Opening	(2) 2.5 mm
Degree of Protection	IP65
Enclosure Coating Material	Painted
Fuse Rating	16 A gG D-Fuse
Housing Material	Grey Cast Iron, Galvanized
Mechanical Life	5000000 Operations
Rated Current	4 A
Rated Voltage	250 VAC
Standards and Approvals	ENIEC 60947-5-1
Switching Type	Snap Action
