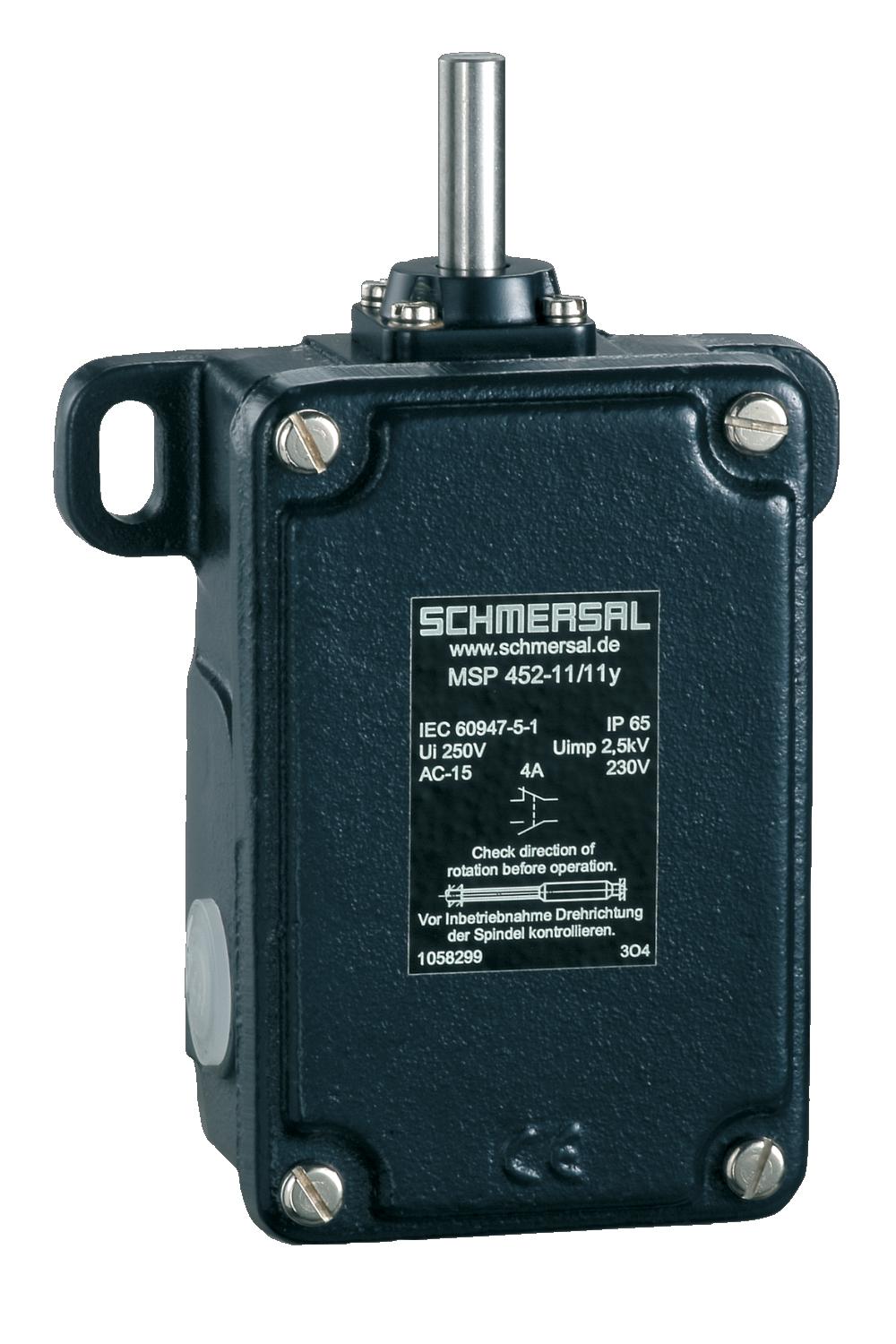

SCHMERSAL MSP 452-11/11Y-2186ROTATING SPINDLE LIMIT SWITCH 101127983

Product Code: 101127983

Technical Specifications

Housing Material Grey Cast Iron, Galvanised
Enclosure Coating Material Painted
Contact Opening (mm) 2 x 0.5
Minimum Ambient Temperature (°C) -30
Brand SCHMERSAL
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Actuating Element Plunger
Actuating Torque (Nm) 0.2
Maximum Bounce Duration (ms) 1.5
Maximum Fuse Rating 10 A gG D-fuse
Minimum Mechanical Life 3000000 Operations
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 2
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Operational Current AC-15 (A) 2.5
Rated Operational Voltage AC-15 (V) 230V AC
Switching Principle Snap Action
Switchover Time (ms) 10ms (Maximum)
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 6
Utilisation Category AC-15
Sensor Length (mm) 64
Sensor Width (mm) 118
Sensor Height (mm) 174
Plunger Diameter (mm) 10
Degree of Protection IP65
Standards and Approvals EN IEC 60947-5-1
