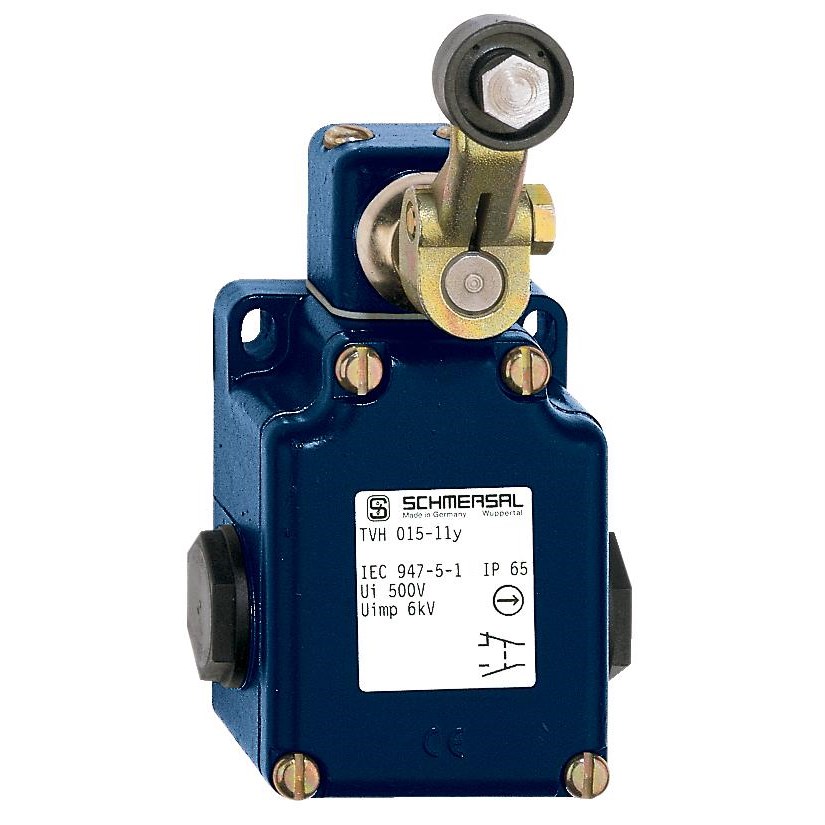

Schmersal 131160442 Position Switch Roller Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131160442

  • Rated for 400 VAC and 2.5 A
  • Durable die-cast alloy housing
  • IP65 protection against dust/water
  • Snap action with roller lever actuator
  • Complies with ENISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Standards EN ISO 13849-1
EAN 8905240000000
eCl@ss Number, Version 9.0 27-27-26-06
ETIM 7.0 EC002593
ETIM 6.0 EC002593
eCl@ss Number, Version 11.0 27-27-26-03
Product Type Position Switch
Brand SCHMERSAL
Actuating Speed 1 mm/min
Actuator Type Roller Lever
Cable Cross Section 13 AWG
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 1.2 mm
Degree of Protection IP65
Housing Material Die Cast Light Alloy, Painted
Rated Current 2.5 A
Rated Voltage 400 VAC
Standards and Approvals ENISO 13849-1
Switching Type Snap Action
Weight 410 g
