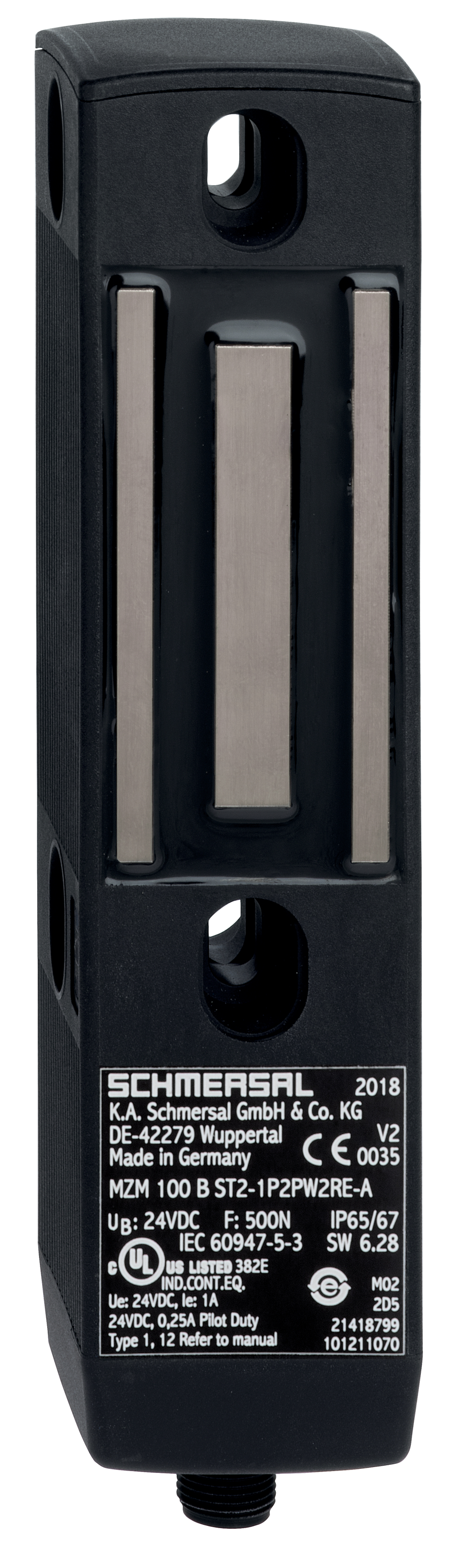

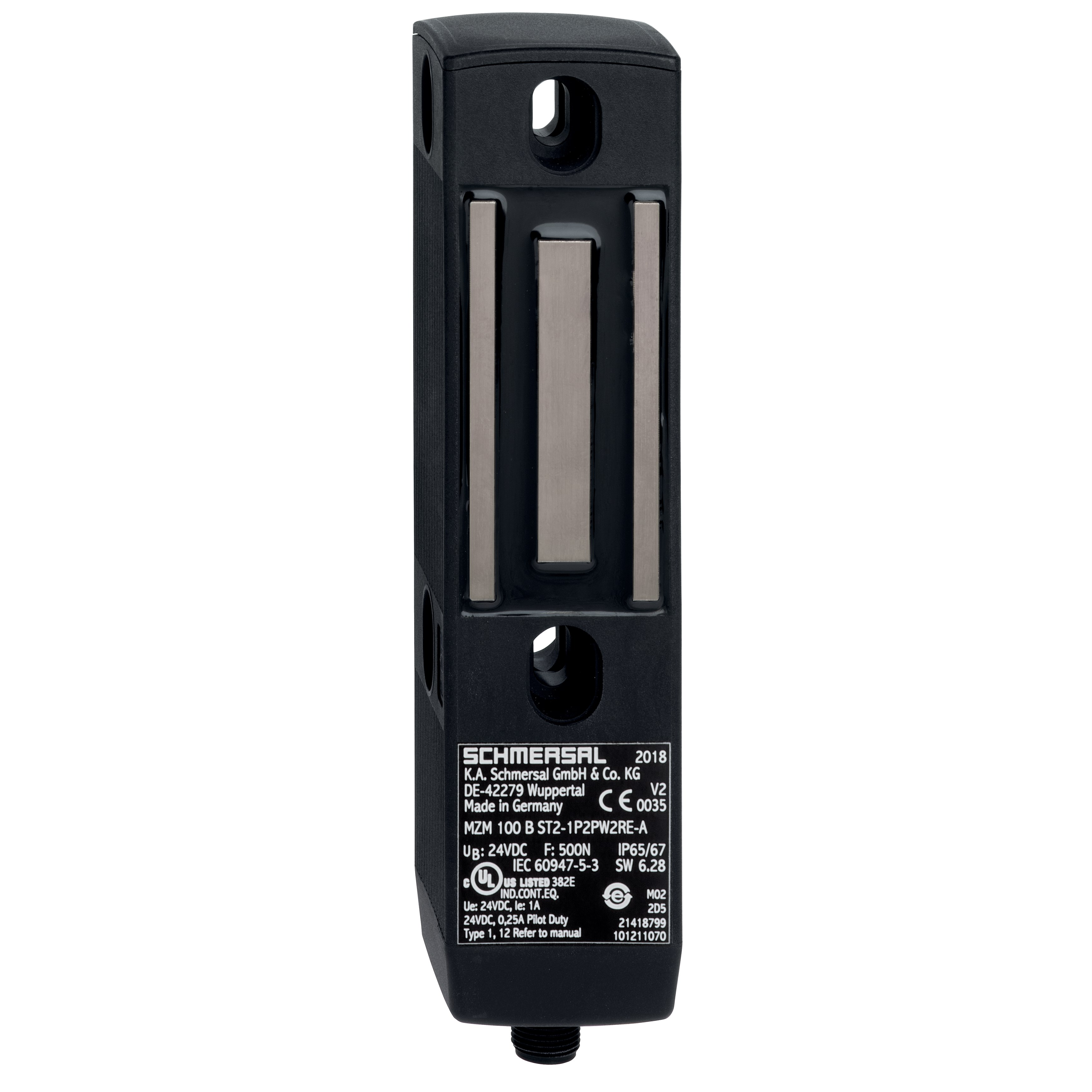

SCHMERSAL MZM 100 B ST2-1P2PW2 R-A 101206028

Product Code: 101206028

Technical Specifications

Brand SCHMERSAL
Clamping Force (N) 500N (Guaranteed), 750N (Typical)
Degree of Protection IP67
Design of Control Element Short-circuit Proof, P-type
Duration of Risk (ms) 150
Housing Material Glass-fibre, Reinforced Thermoplastic
Latching Force (N) 30
Maximum Ambient Temperature (°C) 55
Maximum Leakage Current (mA) 0.5mA (Safety Digital Outputs)
Maximum Operational Voltage DC (V) 26.4
Maximum Reaction Time (ms) 150
Maximum Relative Humidity 95% (Non-condensing)
Maximum Storage Temperature (°C) 70
Maximum Switching Frequency (Hz) 1
Maximum Voltage Drop (V) 1
Minimum Ambient Temperature (°C) -25
Minimum Mechanical Life 1000000 Operations
Minimum Operational Voltage DC (V) 20.4
Minimum Relative Humidity 30%
Minimum Storage Temperature (°C) -25
No. of Safety Contacts 2
Overvoltage Category 3
Performance Level e (Interlocking Function)
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 0.8
Rated Insulation Voltage (V) 32DC
Rated Operational Current (mA) 1000
Rated Operational Current DC-13 (A) 0.25A (Safety Digital Outputs), 0.05A (Diagnostic Outputs)
Rated Operational Voltage DC-13 (V) 24V (Safety Digital Outputs)
Rated Short-circuit Current (A) 100
Recommended Actuator MZM 100-B1.1
Resistance to Shock (g/ms) 30g / 11ms
Resistance to Vibrations 10 ... 150Hz, Amplitude 0.35mm
Safety Functions Yes
Sensor Height (mm) 179
Sensor Length (mm) 40
Sensor Width (mm) 40
Series Wiring Yes
Standards and Approvals EN ISO 13849-1, EN IEC 61508
Termination Connector M12, 8-Pole
Time to Readiness (ms) 4000
Voltage Type DC
