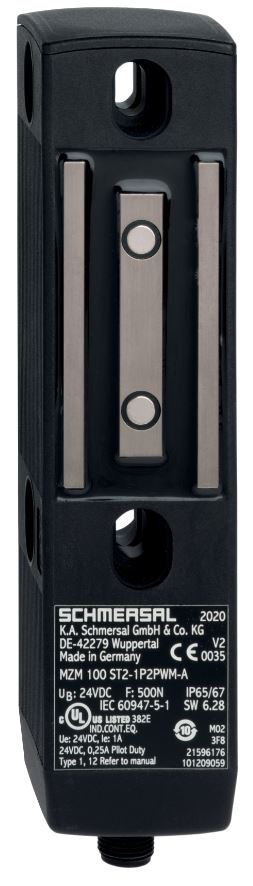

Brand |
SCHMERSAL |
|
Clamping Force (N) |
500N (Guaranteed), 750N (Typical) |
|
Design of Control Element |
Short-circuit Proof, P-type |
|
Duration of Risk (ms) |
150 |
|
Latching Force (N) |
60 |
|
Maximum Leakage Current (mA) |
0.5mA (Safety Digital Outputs) |
|
Maximum Reaction Time (ms) |
150 |
|
Maximum Relative Humidity |
95% (Non-condensing) |
|
Maximum Storage Temperature (°C) |
70 |
|
Maximum Switching Frequency (Hz) |
1 |
|
Maximum Voltage Drop (V) |
1 |
|
Minimum Ambient Temperature (°C) |
-25 |
|
Minimum Relative Humidity |
30% |
|
Minimum Storage Temperature (°C) |
-25 |
|
No. of Safety Contacts |
2 |
|
Performance Level |
e (Interlocking Function) |
|
Rated Operational Current (mA) |
1000 |
|
Rated Operational Current DC-13 (A) |
0.25A (Safety Digital Outputs), 0.05A (Diagnostic Outputs) |
|
Rated Operational Voltage DC-13 (V) |
24V (Safety Digital Outputs) |
|
Rated Short-circuit Current (A) |
100 |
|
Recommended Actuator |
MZM 100-B1.1 |
|
Resistance to Shock (g/ms) |
30g / 11ms |
|
Resistance to Vibrations |
10 ... 150Hz, Amplitude 0.35mm |
|
Safety Functions |
Yes |
|
Sensor Height (mm) |
179 |
|
Sensor Length (mm) |
40 |
|
Sensor Width (mm) |
40 |
|
Series Wiring |
Yes |
|
Termination |
Connector M12, 8-Pole |
|
Time to Readiness (ms) |
4000 |
|
Voltage Type |
DC |
|
Degree of Protection |
IP67 |
|
Housing Material |
Glass-fibre, Reinforced Thermoplastic |
|
Maximum Ambient Temperature (°C) |
55 |
|
Maximum Operational Voltage DC (V) |
26.4 |
|
Minimum Mechanical Life |
1000000 Operations |
|
Minimum Operational Voltage DC (V) |
20.4 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
3 |
|
Rated Impulse Withstand Voltage (kV) |
0.8 |
|
Rated Insulation Voltage (V) |
32DC |
|
Standards and Approvals |
EN ISO 13849-1, EN IEC 61508 |
