Schmersal 103032708 Stainless Steel Enclosure Stainless Steel 100W 94H 195D IP67 IP69K

Product Code: 103032708

  • High protection: IP67, IP69K rated
  • Durable stainless steel construction
  • Compact size: 100mm W x 94mm H x 195mm D
  • Wide temp range: -25 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Temperature (°C) 80
Minimum Temperature (°C) -25
Standards EN ISO 13849-1
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 7.0 EC000030
ETIM 6.0 EC002592
eCl@ss Number, Version 11.0 27-27-26-01
Gross Weight (g) 630.4
Net Weight (g) 629.1
Product Type Stainless Steel Enclosure
Brand SCHMERSAL
Series NBGLC Housing
Degree of Protection IP67, IP69K
Depth 195 mm
Gland Hole Size 20.3 mm
Height 94 mm
Material Stainless Steel
Operational Temperature -25 to 80 deg C
Standards and Approvals eCl@ss Version 11.0 27-37-12-05, eCl@ss Version 9.0 27-37-12-05, ETIM 6.0 EC000200, ETIM 7.0 EC000030
Weight 1362 g
Width 100 mm

Description

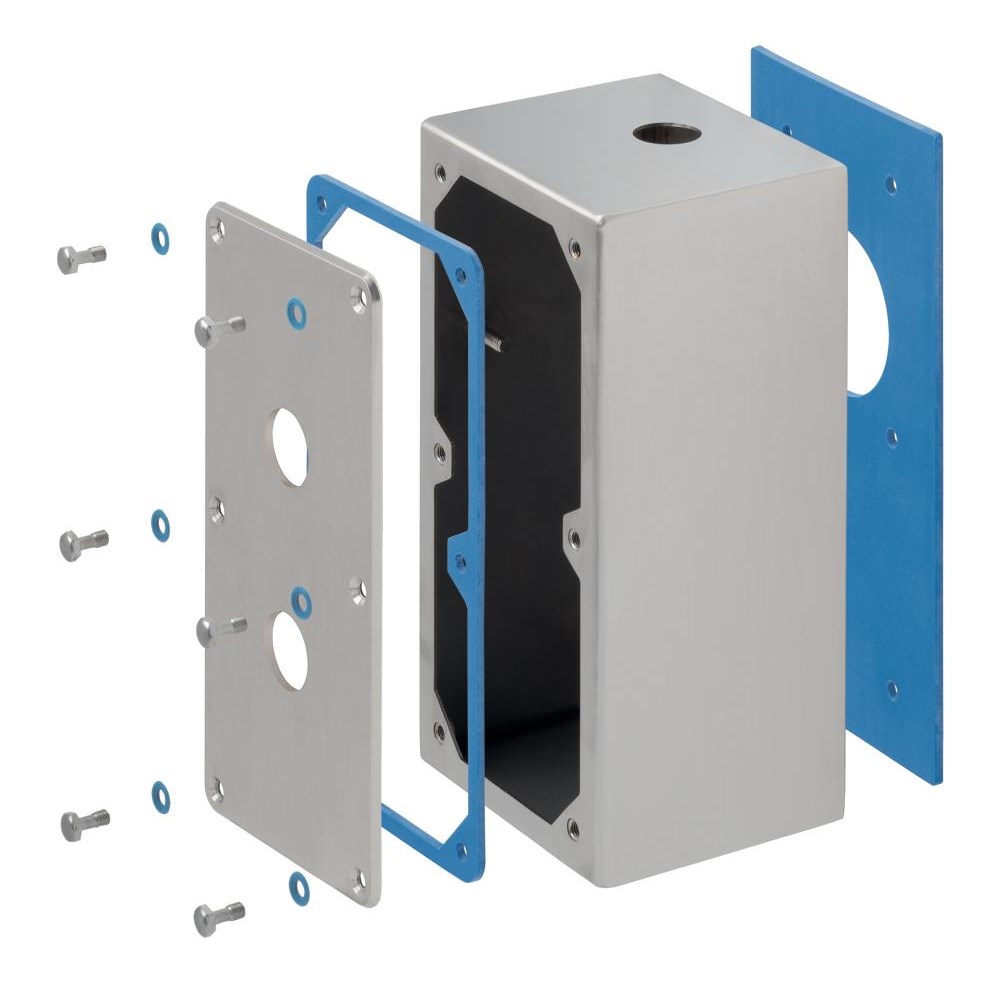

Explore the Schmersal NBGLC Housing, a robust stainless steel assembly housing designed for food production machinery. This enclosure features a single cable gland with a 20.3 mm diameter at the front, two command positions, and is finished in silver with blue sealing for clear identification. With dimensions of 100 mm x 195 mm x 315 mm, it operates effectively within a temperature range of -25°C to +80°C. Engineered for demanding environments, it boasts an IP67/IP69K rating for high-pressure washdowns. Ideal for engineers seeking reliable pushbutton and signalling solutions in the food industry.
