Specifications

Ambient Temperature Range (°C)	+0 ... +80
Diameter (mm)	44.5
Dimensions (mm)	26H
Tightening Torque (Nm)	0.6
No. of Switching Positions	2
Type of Mounting	Mounting flange EFM
Gross Weight (g)	35
Spacing (mm)	50 x 50
Actuating Force (N)	0.2
No. of contact elements (Maximum)	3

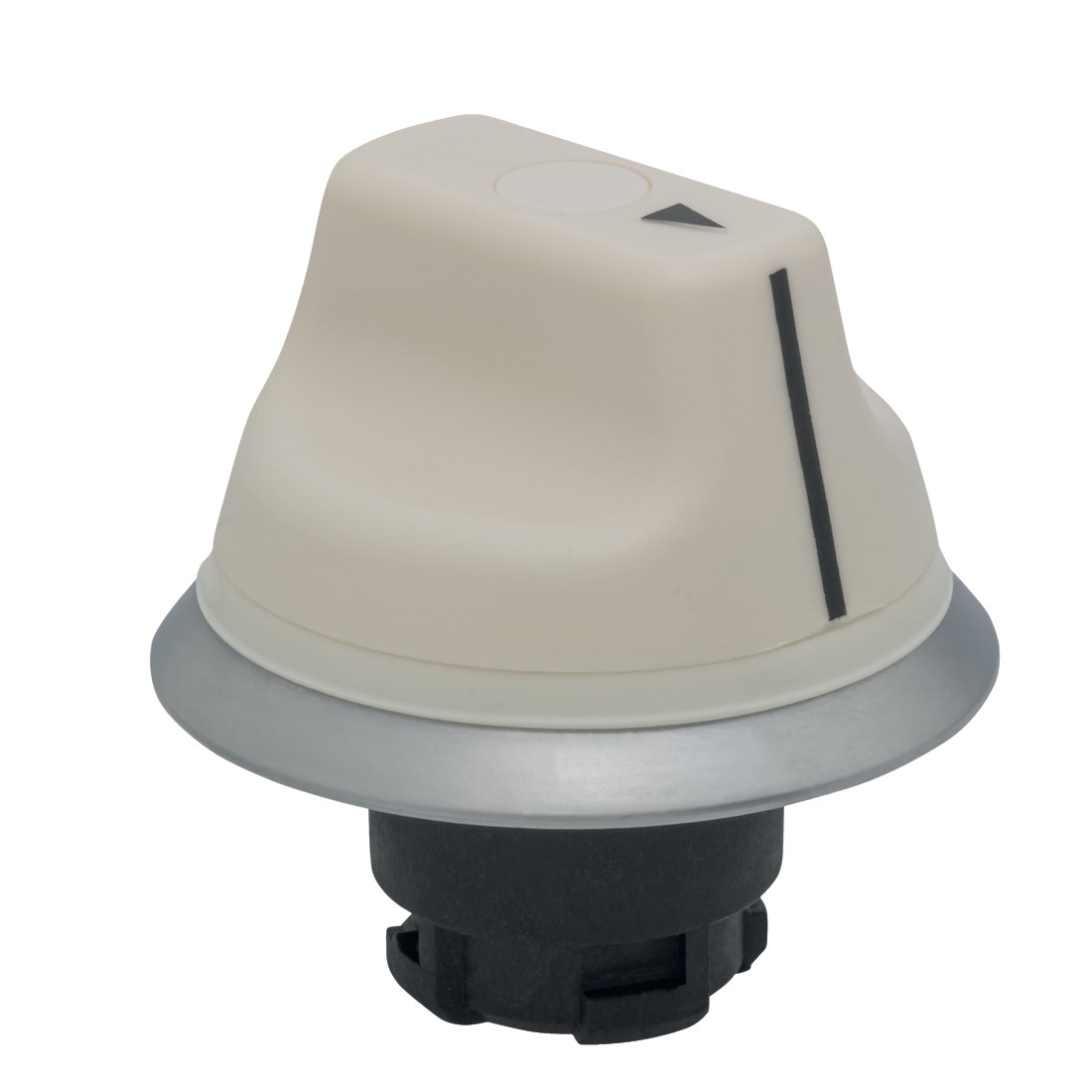

Product Type	Selector Switch
Brand	SCHMERSAL
Ambient Temperature	0 to 80 deg C
Cable Cross Section	0.75 sq-mm
Colour	White, Silver
Degree of Protection	IP67, IP69K
Design	Short Toggle
Front Ring Colour	Silver
Front Ring Material	ABS, Chrome Plated
Fully Insulated	Yes
Gross Weight	35 g
Height	26 mm
Hole Diameter	44.5 mm
Installation Conditions	Arbitrarily
Mechanical Life	1 million Operations
Mounting Hole Diameter	22.3 mm
Mounting Type	Flange
Number of Positions	2
Operational Temperature	80 deg C
Operator Material	ABS
Sealing Type	Membrane, Lip Gaskets
Spacing	50 mm x 50 mm
Standards and Approvals	EN IEC 60204-1, EN IEC 60947-1, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 62061
Switching Angle	35 deg
Terminal Type	M20 x 1.5 mm Screw
Tightening Torque	0.6 N-m
