Product Code: 101172765

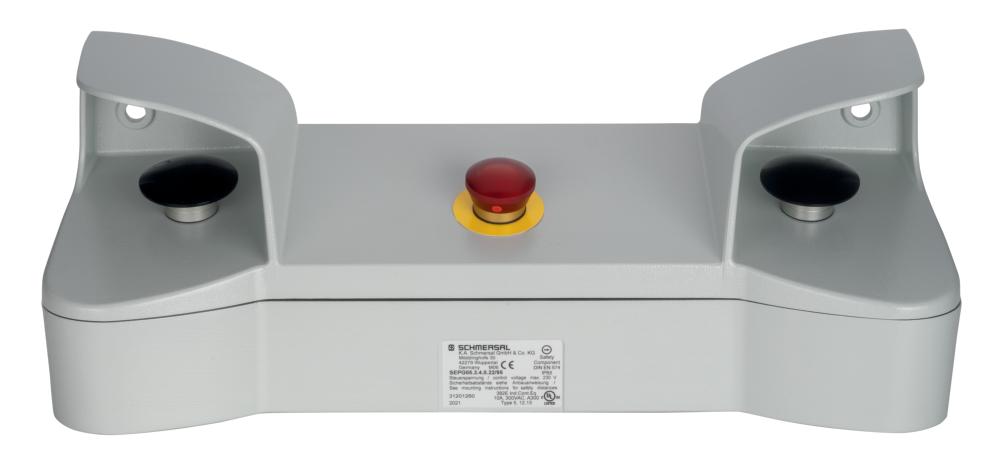

Optimize your machine safety with the Schmersal SEP Series two-hand control panel. Crafted from durable aluminum, this panel is designed for integration into emergency-off systems and features a robust construction kit option. It includes one Emergency Stop button with a 38.5 mm diameter and two additional operating push buttons, each 55 mm in diameter, ensuring clear and accessible controls. The unit is equipped with two openers and two shutters for comprehensive safety measures. Connections are made simple with screw terminals, supporting a thermal test current of 10 A. This control panel meets utilization categories AC-15 (250 VAC, 8 A) and DC-13 (24 VDC, 5 A), confirming its reliability in various electrical environments. Trust in Schmersal's commitment to machine safety with this efficient and reliable control solution.

Housing Material	Aluminium
Enclosure Coating Material	Powder-coated
Brand	SCHMERSAL
Series	SEP
Recommended Product Combination	SRB201ZH
Maximum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	10000000 Operations
No. of Normally-closed Contacts	2
No. of Normally-open Contacts	2
Rated Insulation Voltage (V)	440
Rated Operational Current AC-15 (A)	8
Rated Operational Current DC-13 (A)	5
Rated Operational Voltage AC-15 (V)	250V AC
Rated Operational Voltage DC-13 (V)	24V DC
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	10
Depth (mm)	160
Height (mm)	184
Utilisation Category	DC-13
Width (mm)	494
Degree of Protection	IP65
Standards and Approvals	EN IEC 60947-5-1
