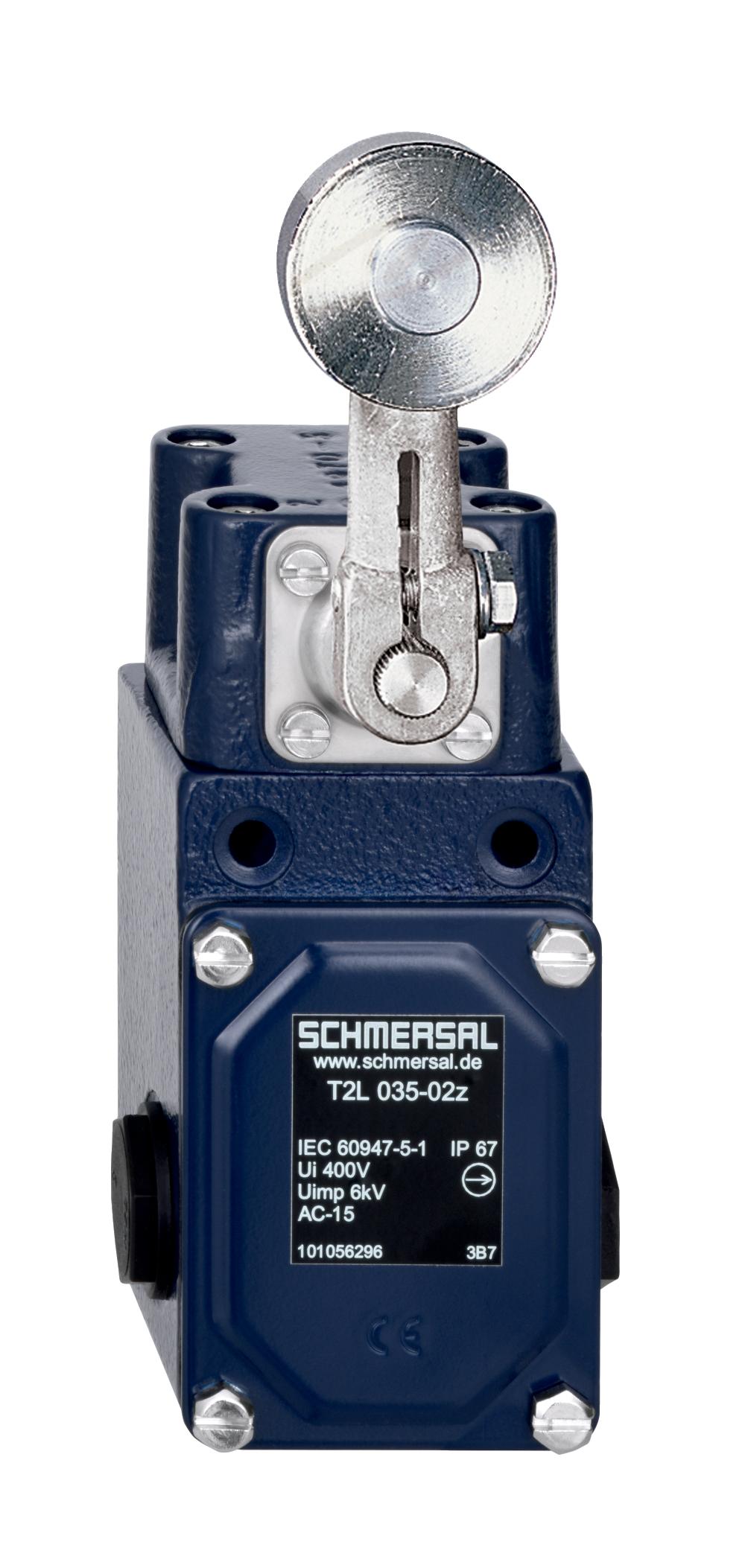

SCHMERSAL T2L 035-20ZBELT ALIGNMENT SWITCH 101056298

Product Code: 101056298

Technical Specifications

Brand SCHMERSAL
Actuating Angle 30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element Roller Lever
Actuator Height (mm) 73
Actuator Length (mm) 21
Actuator Width (mm) 36
Castor Diameter (mm) 36
Castor Material Metal Film
Castor Width (mm) 8
Contact Material Silver
Contact Opening (mm) 2 x 2.5
Degree of Protection IP67
Enclosure Coating Material Painted
Housing Material Grey Cast Iron, Galvanised
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 20 A gL/gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 10000000 Operations
No. of Normally-open Contacts 2
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Rated Operational Current AC-15 (A) 4
Rated Operational Voltage AC-15 (V) 400V AC
Standards and Approvals EN IEC 60947-5-1
Switching Element NO Contact
Switching Frequency 3000/h
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 10
Utilisation Category AC-15
