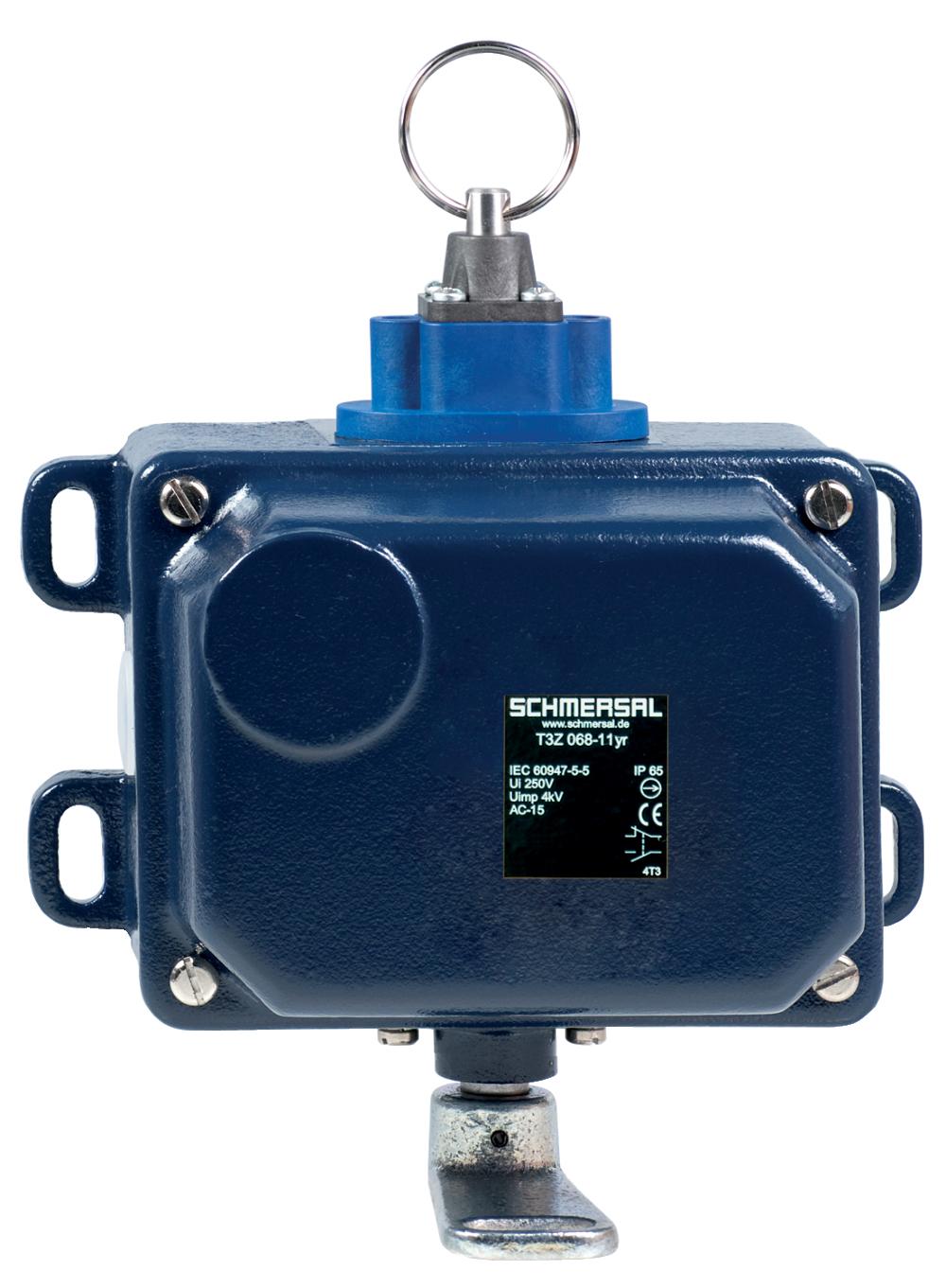

SCHMERSAL T3Z068-33YR PULL-WIRE EMERGENCY STOP SWITCH 101087885

Product Code: 101087885

Ensure the safety of your machinery with the Schmersal T3Z Series Pull-wire Emergency Stop Switch. This robust metal-encased switch features a roller lever N300 actuating element and provides reliable stoppage with both NO and NC contacts. Designed for slow action, it includes three auxiliary and three safety contacts, all connected via a secure screw connection. The switch is easily reset using a pull ring and supports a thermal test current of 10 A. It's rated for use in control circuits with 230 VAC at 2.5 A (AC-15) and 24 VDC at 6 A (DC-13), making it an essential component in any machine safety system.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP65
Maximum Temperature (°C) 90
Minimum Temperature (°C) -30
Series T3Z
