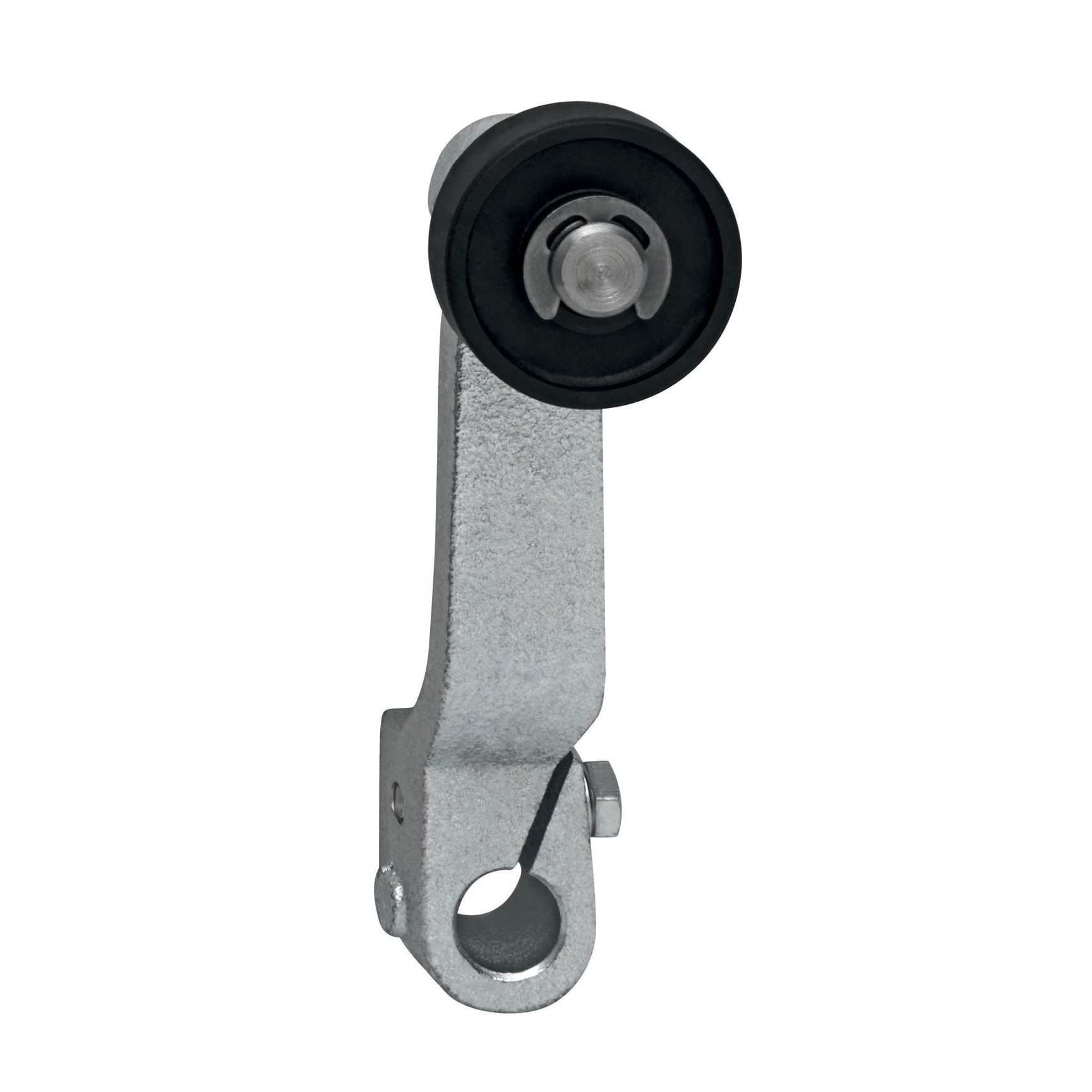

SCHMERSAL TA 471-03/03YBELT ALIGNMENT SWITCH 101061139

Product Code: 101061139

Technical Specifications

Brand SCHMERSAL
Actuating Angle 30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element Roller Lever
Castor Diameter (mm) 36
Castor Material Plastic
Castor Width (mm) 9
Contact Material Silver
Contact Opening (mm) 2 x 4
Degree of Protection IP65
Enclosure Coating Material Painted
Housing Material Grey Cast Iron, Galvanised
Maximum Actuating Speed (m/s) 3
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 4
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 0.05
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 1000000 Operations
No. of Normally-closed Contacts 3 (Right)
No. of Normally-open Contacts 3 (Left)
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Operational Current AC-15 (A) 10
Rated Operational Voltage AC-15 (V) 230V AC
Sensor Height (mm) 143
Sensor Length (mm) 190
Sensor Width (mm) 194
Standards and Approvals EN IEC 60947-5-1
Switching Element Opener (NC)
Switching Frequency 1000/h
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 25
Utilisation Category AC-15
